DO
(Relay Output)
NO (Normal Open)
Max. 1A, 24 VDC
Initial status is Normal Open
C (Common)
NC (Normal Close)
DI (Digital Input)
+
Low: +13 V to +30 V
High: -30 V to +3 V
-

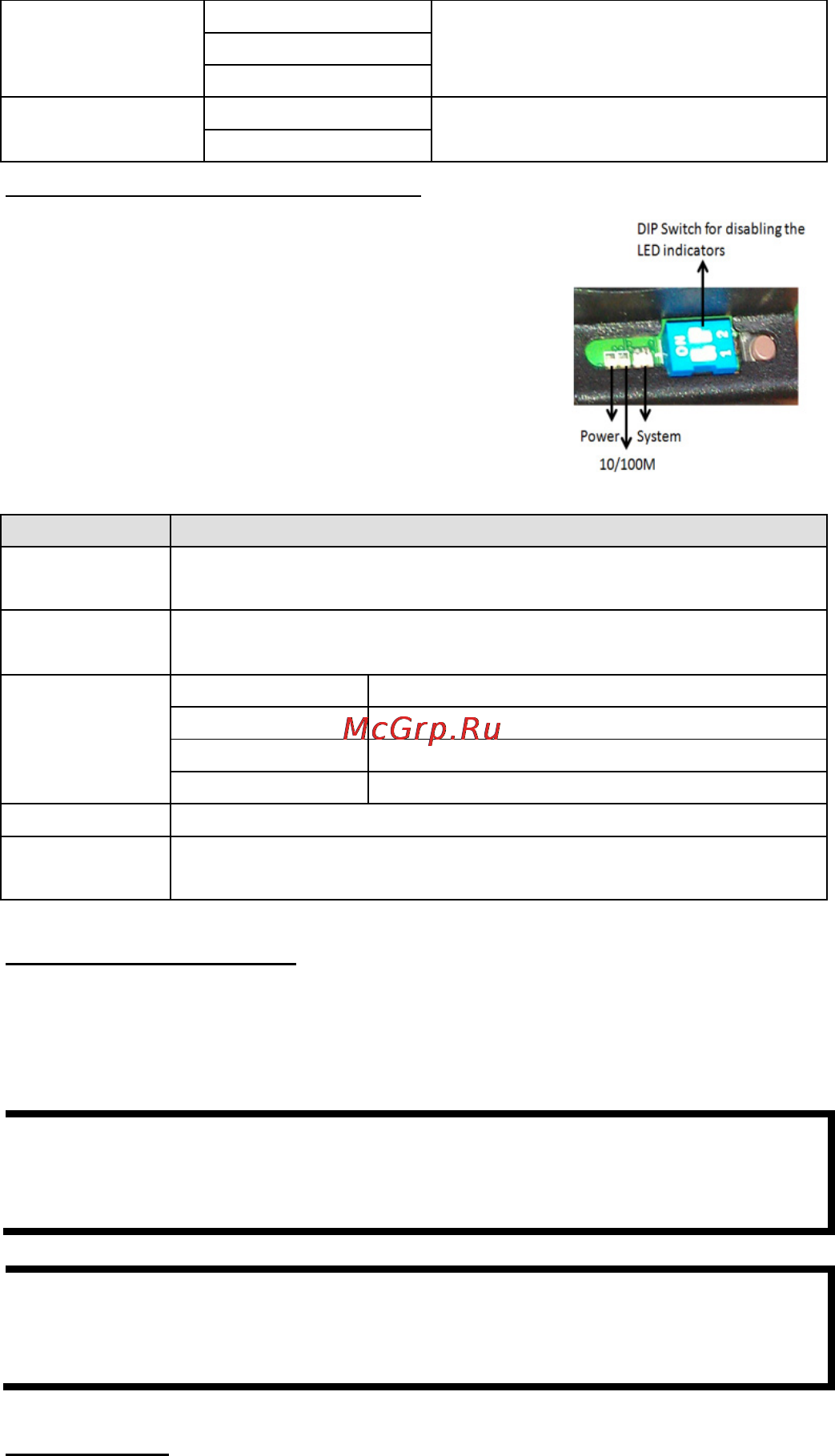

LED Indicators and DIP Switches
The VPort 26A-1MP has 3 LEDs for indicating the
power status, 10/100 Mbps Ethernet link, and
system status. In addition, one DIP switch (No.2)
is provided for enabling or disabling the LED light
for users who do not want the LED light to be
visible at night.
LED
Description
Power
On: power on
Off: power off
10/100M Amber: Ethernet link is 10 Mbps
Green: Ethernet link is 100 Mbps
System
Red On
Red blinking
Green On
Green blinking
DIP Switch 1
Reserved
DIP Switch 2
On: LED light is on
Off: LED light is off
SD card Socket (SDHC)
The VPort 26A-1MP supports a standard SDHC interface for local storage
with a current maximum size of 32 GB. Any SD card that fits this
specification can be used. Currently, the local storage supports triggered
video recordings when an event has occurred.
NOTE
We recommend using Transcend or Sandisk SD cards. Sandisk
Extreme III SD cards are highly recommended due their superior
read/write speed.
NOTE
To check if the SD card is mounted successfully, go to system
configuration
Local storage in the VPort’s web-based
manager.
Reset Button
The reset button is used to reset the camera’s hardware.
1. Reboot:
To reboot the VPort 26A-1MP, power it off and then power it back on again,
or push the RESET button one time. The System LED will light in red as
the POST (Power on Self Test) process runs. When the rebooting process
is finished, the System LED will change to a green color.
