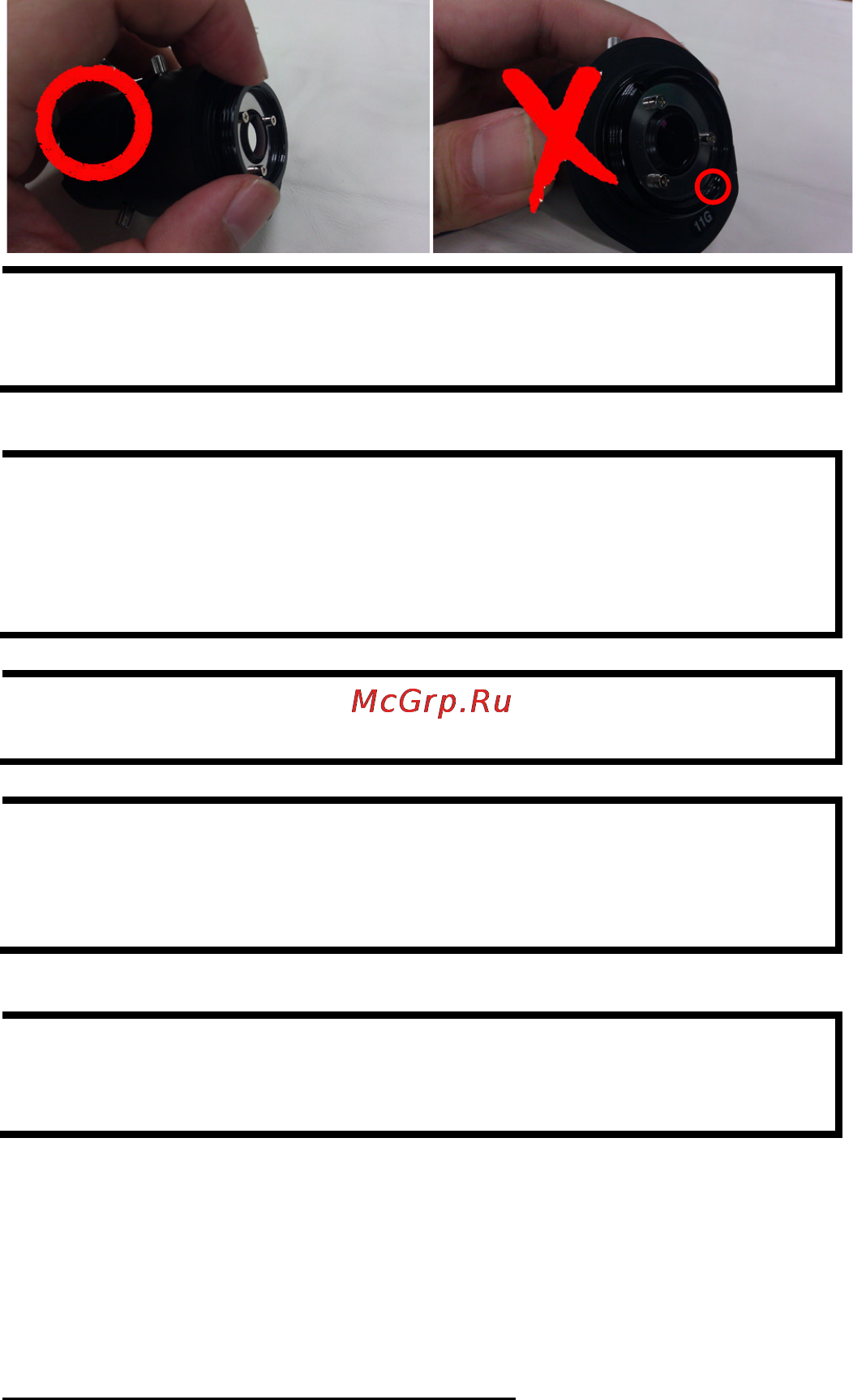

Step 4: Screw the lens holder to the lens you are going to use.

NOTE

Be sure to screw the lens holder to the lens on the right side. The

side of the lens holder with the groove should be facing the lens;

the side without the groove should be facing outwards.

Step 5: Screw the lens and lens holder to the VPort 36-1MP.

NOTE

We strongly suggest that you perform this step while viewing live

video from the camera via a web browser for instant feedback on

when to stop. Be sure not to tighten the screw all the way, or the

lens holder may remain fixed to the camera when you remove the

lens.

NOTE

You can tighten the lens holder screw (see Step 2) to fix the

position of the lens holder and lens.

NOTE

You do not need to use the C/CS mount adaptor ring if you are

using the VPort 36

-1MP series with an optional lens purchased

from Moxa. It is only required to mount the lens with the adaptor

ring if you are using a C mount type lens.

Step 6: Power on your VPort 36-1MP.

NOTE

The VPort 36-1MP can be powered by a 12-32 VDC or 18-30 VAC

power input

, or Power over Ethernet (PoE, 802.3af). For power

redundancy, use DC or AC power together with PoE.

Software Installation

Step 1: Configure the VPort 36-1MP’s IP address.

When the VPort 36-1MP is first powered on, the POST (Power On Self Test)

will run for a few moments (about 30 seconds). The network environment

determines how the IP address is assigned.

Network Environment with DHCP Server

For this network environment, the unit’s IP address will be assigned by

the network’s DHCP server. Refer to the DHCP server’s IP address table to

determine the unit’s assigned IP address. You may also use the Moxa

VPort and EtherDevice Configurator Utility (edscfgui.exe), as described

below:

Groove
