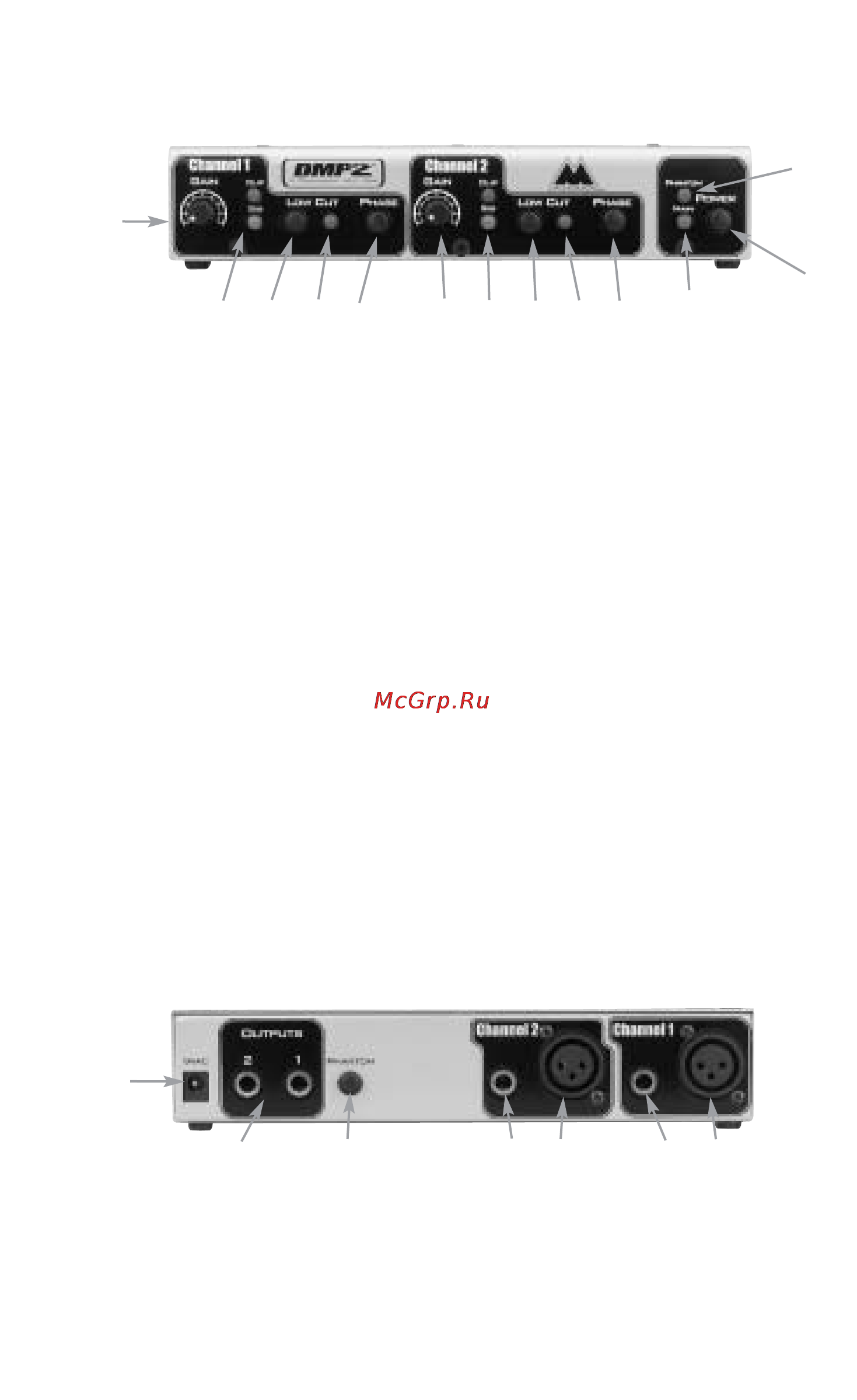

Front & Rear Panels
1. Gain Adjustment Knobs: Separate gain controls for pre-amps 1 and 2
adjust the output volume levels independently. Full counter-clockwise
is the minimum gain position, while full clockwise is maximum gain.
2. Signal & Clip LEDs: The "Sig" LED, when lit, indicates the presence of
input signal either at the XLR mic input or 1/4” high impedance input
jacks. The "Clip" LED will light when that input signal is too strong and
is about to distort, or clip (2dB below clipping). If this LED remains lit
for more than a few moments, reduce the gain adjustment knob setting.
3. Low Cut Filter Switch: Pressing and locking this switch to the ‘In’
position engages the Low-Cut filter for the associated channel. Pressing
and releasing to the ‘Out’ position disengages the filter.
4. Low-Cut Filter LED: When lit, this LED indicates that the Low-Cut filter
has been engaged.
5. Phase Inversion Switch: This switch will invert the phase of the signal
for the selected channel 180 degrees (see section, "Phase Inversion").
6. Phantom Power LED: When lit, this LED indicates that phantom power
has been switched on for both of the mic pre-amp channels.
7. Main Power LED: When the proper power supply is applied to the
DMP2 and the Main Power switch is switched to the ‘On’ position, this
LED will light, indicating that the unit is powered up.
8. Main Power Switch: This switch, when pressed and locked to the ‘In’
position, switches the DMP2 power on.
1. 9vAC Power Supply Jack: This power jack accepts a 9v AC 500mA
2.5mm power supply. This power supply is included with your DMP2,
and ONLY the proper supply should be used.
➊
➋
➌
➍
➎
➏
➐
➑
➊
➋
➌
➍
➎
➊
➌
➍
➎
➋
➍
➎
Front Panel
Back Panel
