Руководство по эксплуатации Страница: 8

Jet JDC-250 (50000311T) Руководство по эксплуатации онлайн [8/9] 171795

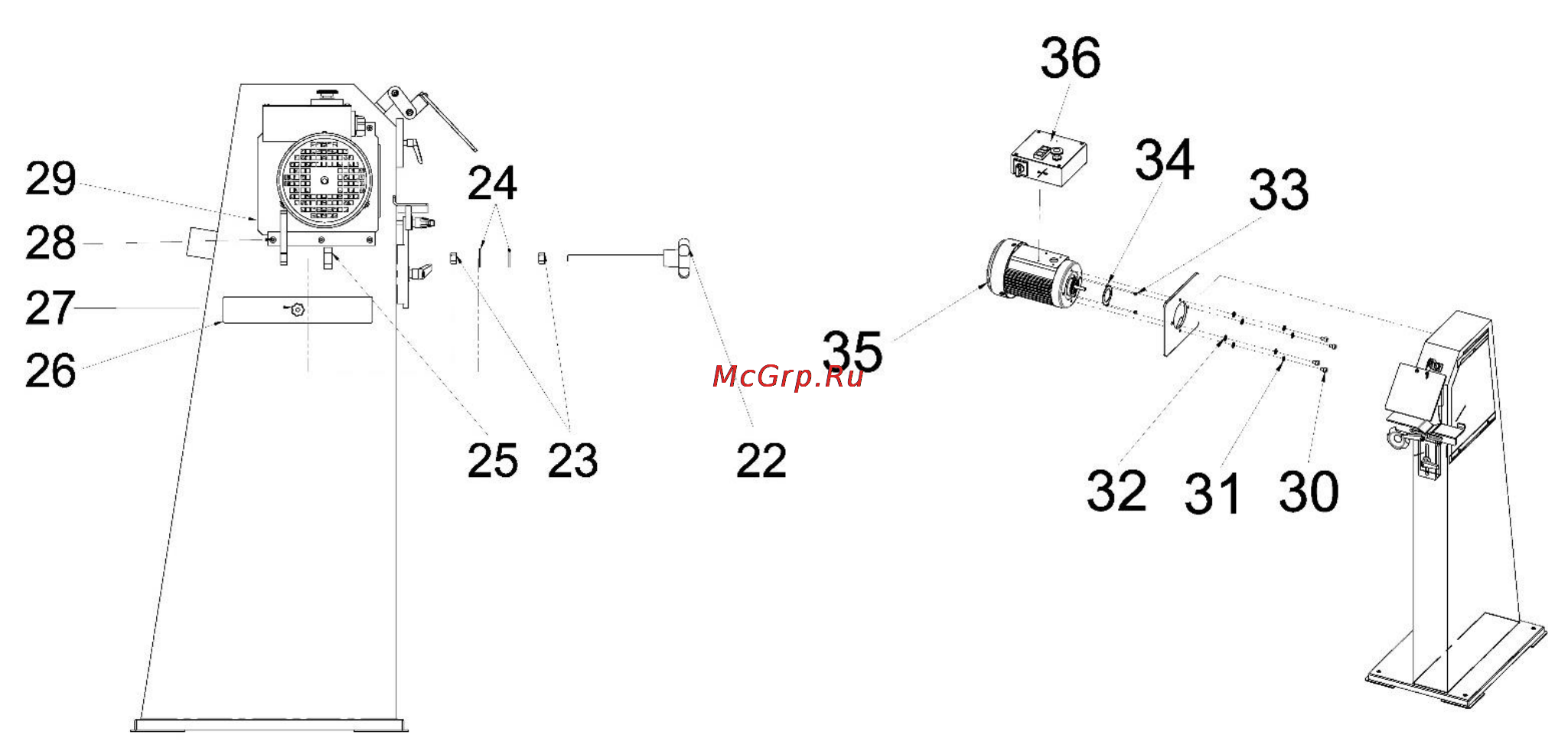

№ Артикул Описание Размер Кол-во

1 ................. JDC250-001 ................ Lock Handle ................................................................. M8 x 30 ............................2

2 ................. JDC250-002 ................ Flat Washer .................................................................. M8 ...................................2

3 ................. JDC250-003 ................ Support Table ............................................................... ........................................1

4 ................. JDC250-004 ................ Support Bracket ........................................................... ........................................1

5 ................. JDC250-005 ................ Screw ........................................................................... M6 x 10 ............................8

6 ................. JDC250-006 ................ Transparent Guard ....................................................... ........................................1

7 ................. JDC250-007 ................ Bracket ......................................................................... ........................................1

8 ................. JDC250-008 ................ Flat Washer .................................................................. M6 ...................................2

9 ................. JDC250-009 ................ Knob ............................................................................. ........................................2

10 ............... JDC250-010 ................ Bracket ......................................................................... ........................................1

11 ............... JDC250-011 ................ Bracket ......................................................................... ........................................1

12 ............... JDC250-012 ................ Arbor ............................................................................ ........................................1

13 ............... JDC250-013 ................ Screw ........................................................................... M6 x 16 ............................1

14 ............... JDC250-014 ................ Steel Brush ................................................................... φ250 ................................1

15 ............... JDC250-015 ................ Arbor Flange ................................................................ ........................................1

16 ............... JDC250-016 ................ Hex Cap Screw ............................................................ M16 x 30 ..........................1

17 ............... JDC250-017 ................ Cover ............................................................................ ........................................1

18 ............... JDC250-018 ................ Key ............................................................................... 5 x 5 x 7 ...........................1

19 ............... JDC250-019 ................ Screw ........................................................................... M4 x 10 ............................1

20 ............... JDC250-020 ................ Adjustment Knob .......................................................... ........................................1

21 ............... JDC250-021 ................ Plate ............................................................................. ........................................1

22 ............... JDC250-020 ................ Adjustment Knob .......................................................... ........................................1

23 ............... JDC250-021 ................ Hex Nut ........................................................................ M12 .................................2

24 ............... JDC250-022 ................ Flat Washer .................................................................. M12 .................................2

25 ............... JDC250-023 ................ Support Bracket ........................................................... ........................................1

26 ............... JDC250-024 ................ Chip Tray ...................................................................... ........................................1

27 ............... JDC250-025 ................ Knob ............................................................................. ........................................1

28 ............... JDC250-026 ................ Screw ........................................................................... M6 x 20 ............................3

29 ............... JDC250-027 ................ Motor Plate ................................................................... ........................................1

30 ............... JDC250-028 ................ Socket Head Cap Screw .............................................. M8 x 25 ............................4

31 ............... JDC250-029 ................ Lock Washer ................................................................ M8 ...................................4

32 ............... JDC250-030 ................ Flat Washer .................................................................. M8 ...................................4

33 ............... JDC250-031 ................ Screw ........................................................................... M5 x 12 ............................2

34 ............... JDC250-032 ................ Bearing Bracket ............................................................ ........................................1

35 ............... JDC250-033 ................ Motor ............................................................................ ........................................1

36 ............... JDC250-034 ................ Control Panel Components .......................................... ........................................1
