7
HKTS 35BQ

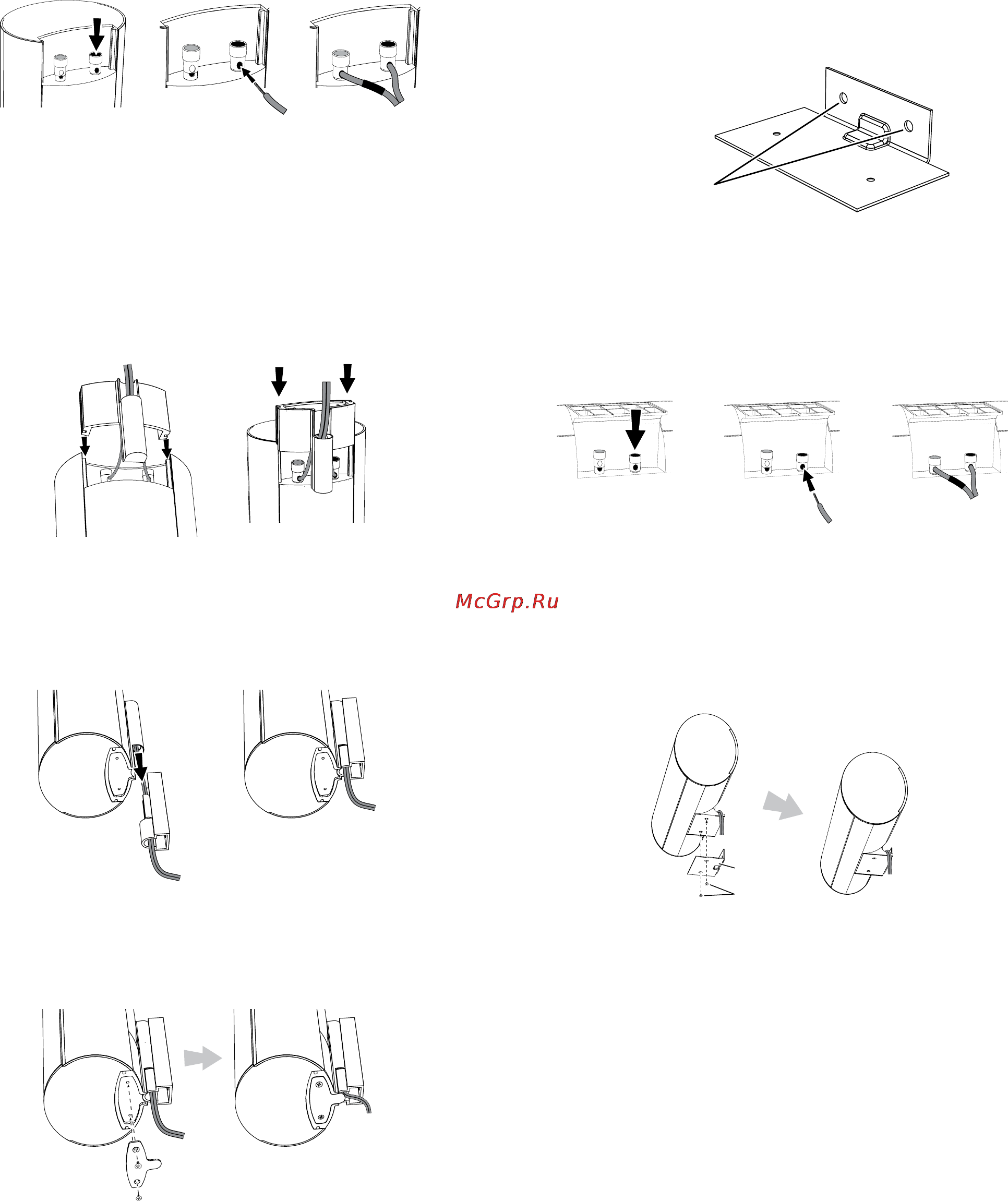

Speaker Mounting Options (cont.),
and Wall-Mounting: Center Speaker
8. Connect the speaker wire to the speaker terminals as shown in the illustration:
+
–
A) Push Down on Cap
to Open Hole
B) Insert Bare Wire
into Open Hole
C) Release Cap
to Secure Wire
Insert the conductor with the colored band into the speaker’s red (+) terminal, and insert
the other conductor into the speaker’s black (–) terminal.
IMPORTANT: Make sure the (+) and (–) bare wires do not touch each other or the other
terminal. Touching wires can cause a short circuit that can damage your receiver or
amplier.
9. Slide the speaker portion of the wall-mount bracket onto the speaker as shown in the
illustration. Fit the grooves on the bracket onto the rails in the speaker, and apply even
pressure on both sides of the bracket so it slides straight onto the speaker.
Fit Bracket Grooves
Onto Speaker Rails
Push Down Evenly On
Both Sides of Bracket
• Pull any slack speaker wire back through the bracket as you slide the bracket onto
the speaker.
• Push the bracket all the way onto the speaker until it snaps into place.
10. Slide the speaker onto the bracket’s wall section, as shown in the illustration. Pull any
slack speaker wire back through the bracket’s wall section.
Slide Speaker
Onto Bracket
Wall Section
11. Fit the metal stop plate into the recess on the bottom of the bracket with the pad
facing the bracket, and fasten it to the bracket using two of the supplied screws. It
will prevent the speaker from detaching from the bracket and will hold the speaker’s
position as you rotate it.
Wall-Mounting: Center Speaker
1. Determine the location for the speaker.
2. Attach the center speaker wall-mount bracket to the wall using hardware that is
appropriate for the wall’s construction and materials. Attach the anchors through the
holes shown in the illustration.
Use These
Holes to Attach
Bracket to Wall
NOTE: The center speaker weighs 3.3 lb (1.5kg). Be sure to use hardware that can
support this weight.
CAUTION: Before making speaker connections, be sure that your receiver or
amplier is turned OFF and its AC cord is unplugged from the AC power source.
3. Connect the speaker wire to the speaker terminals as shown in the illustration:
+
–
A) Push Down on Cap
to Open Hole
B) Insert Bare Wire
into Open Hole
C) Release Cap
to Secure Wire
Insert the conductor with the green colored band into the speaker’s red (+) terminal, and
insert the other conductor into the speaker’s black (–) terminal.
IMPORTANT: Make sure the (+) and (–) bare wires do not touch each other or the other
terminal. Touching wires can cause a short circuit that can damage your receiver or
amplier.
4. Using two of the supplied screws, attach the center speaker to the bracket, as shown
in the illustration.
Wall-Mount
Bracket
Supplied
Screws
