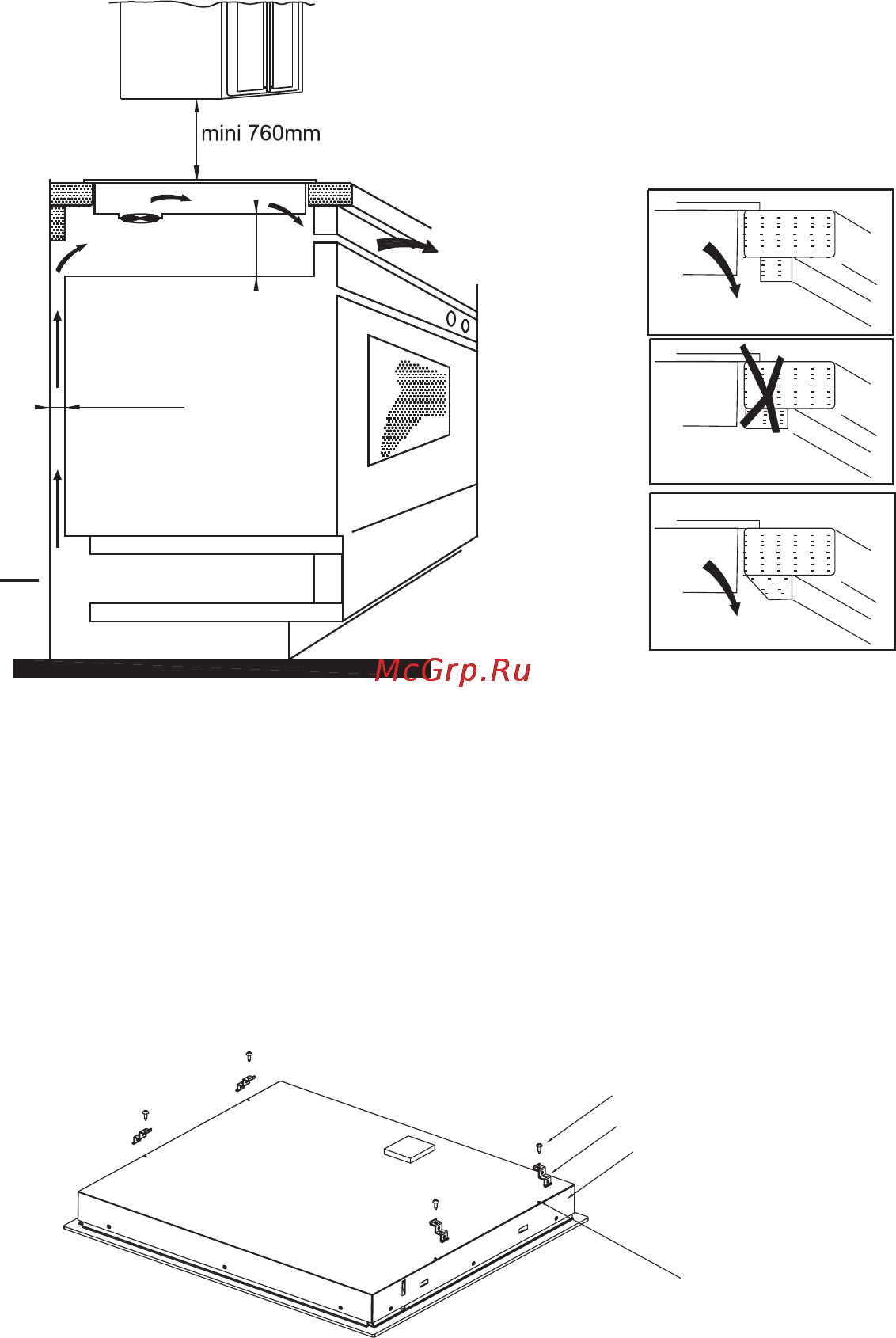

Note: The safety distance between the ceramic hob and the cupboard
above the hotplate should be at least 760mm.
Air intake
Figure (2)
mini 5 cm
mini 2 cm
3
Under any circumstances, make sure the ceramic hob is well
ventilated and the air inlet and outlet are not blocked.
Ensure the ceramic hob is in good work state. As shown in
Figure (2)
2
3
Fix the hob on the table by screw four brackets on the bottom of hob
(see picture) after installation. Adjust the bracket position to suit for
different table top thickness.
w
e
r
c
s
t
e
k
c
a
r
b
e
s
a
b
e
l
o
h
w
e
r
c
s
Air exit
mini 5 mm
