EXITEQ MC-HT 571 [3/11] Installation
![EXITEQ MC-HT 571 [3/11] Installation](/views2/1203149/page3/bg3.png)
2
Safety
2
3
Residual heat indicators
After using the hob, waste heat remains in the heating area. The
power nixie tube shows the code “H”, warning to be away from the
heating area.
Auto shut down protection
During the hob working, it is shut off automatically when the default
timing reach by the program if without operating. If several heating
zones work simultaneously, the hob will be automatically shut off when
anyone heating area reaches it’s default timer. The default working
timer for various power levels are shown in the table below:
Installation
Selection of installation equipment

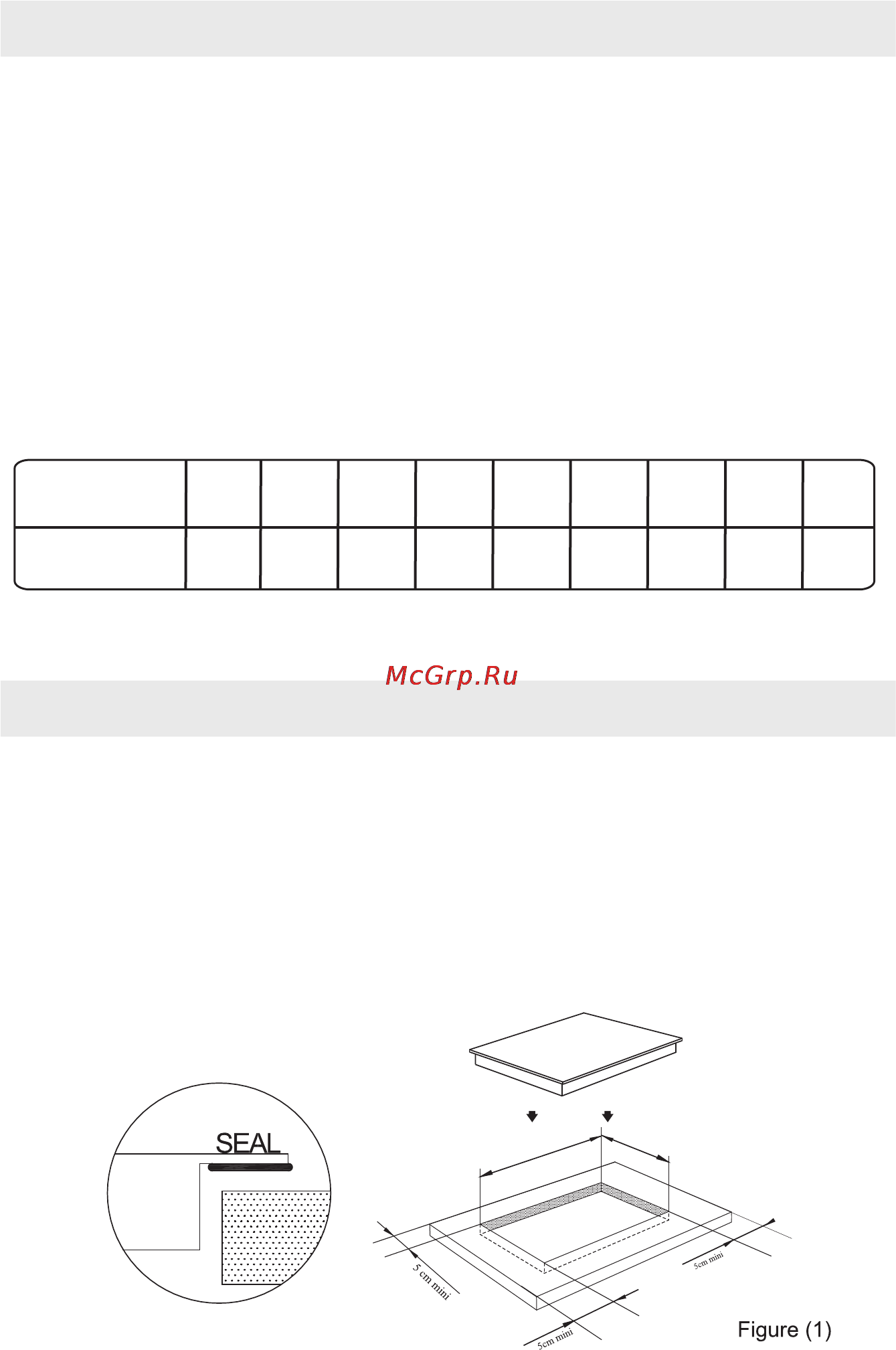

Drill holes on the table surface according to the sizes shown in the drawing.
For
the purpose of installation and use, a minimum of 50 mm space shall
be preserved around the hole
.
Be
sure the thickness of the table surface is at least 30mm. Please select
hea
t-resistant table material to avoid larger deformation caused by the heat
radiation from the hotplate
.
As shown in Figure (1
)
1
Power level 1 2 3 4 5 6 7 8 9
Default workin
g
time(hour)
8 8 8 4 4 4 2 2 2
56cm
49cm
