4.2 Water connection

= Screw the safety valve (A) supplied with the

water heater on to the water inlet of the appliance

marked in blue (see Fig. 7).

= Connect the main cold water pipe (B) on the

lower end of the safety valve.

= Connect the drain pipe (C) on the drain end of

the safety valve. Another end of the drain pipe

should be open to the atmosphere. The drain pipe

should be kept downwards on the tilt, in any case

it will not directly face the user.

General warnings

Local directives may provide restrictions for

installation of electric water heater in bathrooms.

Merloni TermoSanitari shall not bear

responsibility for any damage caused by incorrect

installation if manual has not been followed

correctly. Installation must be carried out by

qualified personnel.

In particular, attention to the following items

should be paid :

= Electrical wiring must comply with

requirements specified in corresponding

paragraphs.

= The safety valve supplied with the appliance

must be in good condition without any damage,

it must not be tampered with and must not be

replaced with other similar ones.

= Installation must be carried out by qualified

personnel. The screws should be fastened

properly in plastic expansive plugs.

= Confirm the voltage of mains supply to be the

same as that given in data on the rating plate.

= Check grounding condition according to local

directive. The power supply socket for the water

heater should have earth wiring and earthed

properly. Earth wire and neutral wire should be

differentiated and identifiable.

= Do not use any socket converter or extension cable

to match the plug of the water heater. Do not replace

the plug of the heater with other plug. Do not use

portable or reel socket (see Fig. 3 and Fig. 4)

= The power for electric water heater should be

supplied independently, do not share the power

supply with other appliances.

= The power supply socket for the heater should be

arranged in a dry place, away from water splash.

= The power cable is special for this

electric water heater. If damaged, it must

be replaced with the specified power cable

by qualified personnel.

= To disconnect the heater from the

supply, please use a bipolar switch with

contact separation of at least 3mm.

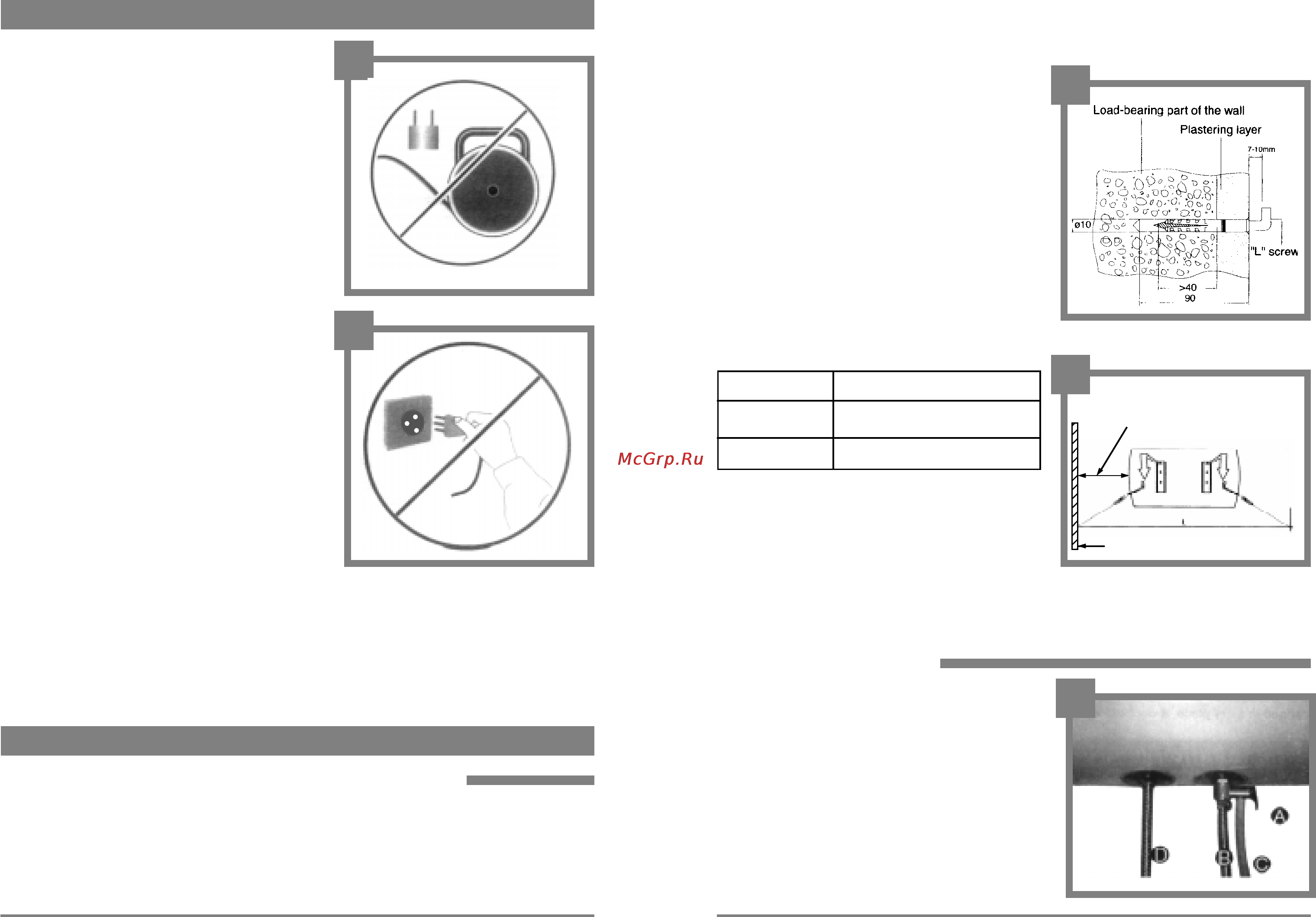

4.1 How to install the water heater on the wall

The water heater should be installed at least 1½ f" (475mm) from the left hand side to facilitate

easy removal of the inspection cover.

= Confirm that the wall can support double the weight of the heater filled up with water.

= Drill two pre-holes with the diameter a little smaller than that of the plastic expansive plug

using a hammer drill. Then expand the holes using normal drill, until the diameter of the holes is

equal to the diameter of plastic expansive plug.

Installation instruction

= To reduce heat loss, the water heater should

be installed in a place nearest to the point of use.

At least a space of 50 cm around the heater should

be kept empty for maintenance purpose.

= You could use other kinds of expansive plugs

and screws according to the structure of the wall.

But make sure that the depth of the expansive plug

in load-bearing part of the wall should not be less

than 40 mm (see Fig. 5).

= Lean the water heater on the wall and move

downwards slowly till the heater catch couples

with the "L" screws on the wall. Pull the heater

downwards to make sure that the appliance has

been fastened reliably (see Fig. 6).

Model Installation distance L (mm)

35 LITERS 366.5

50 LITERS 505

Caution : The appliance should be installed indoor.

Empty the water heater when it is not in use. Avoid

freezing and damaging the heater during winter.

To empty the water heater, see 7.2

3 4

= Insert the plastic expansive plug. Then using spanner or other fitting tools to install "L"

screw until the dimension between the head of "L" screw and wall is 7~ 10 mm. The head of

"L" screw must be up. (see Fig 5).

Minimum required distance

from wall - 1'6"

Wall
