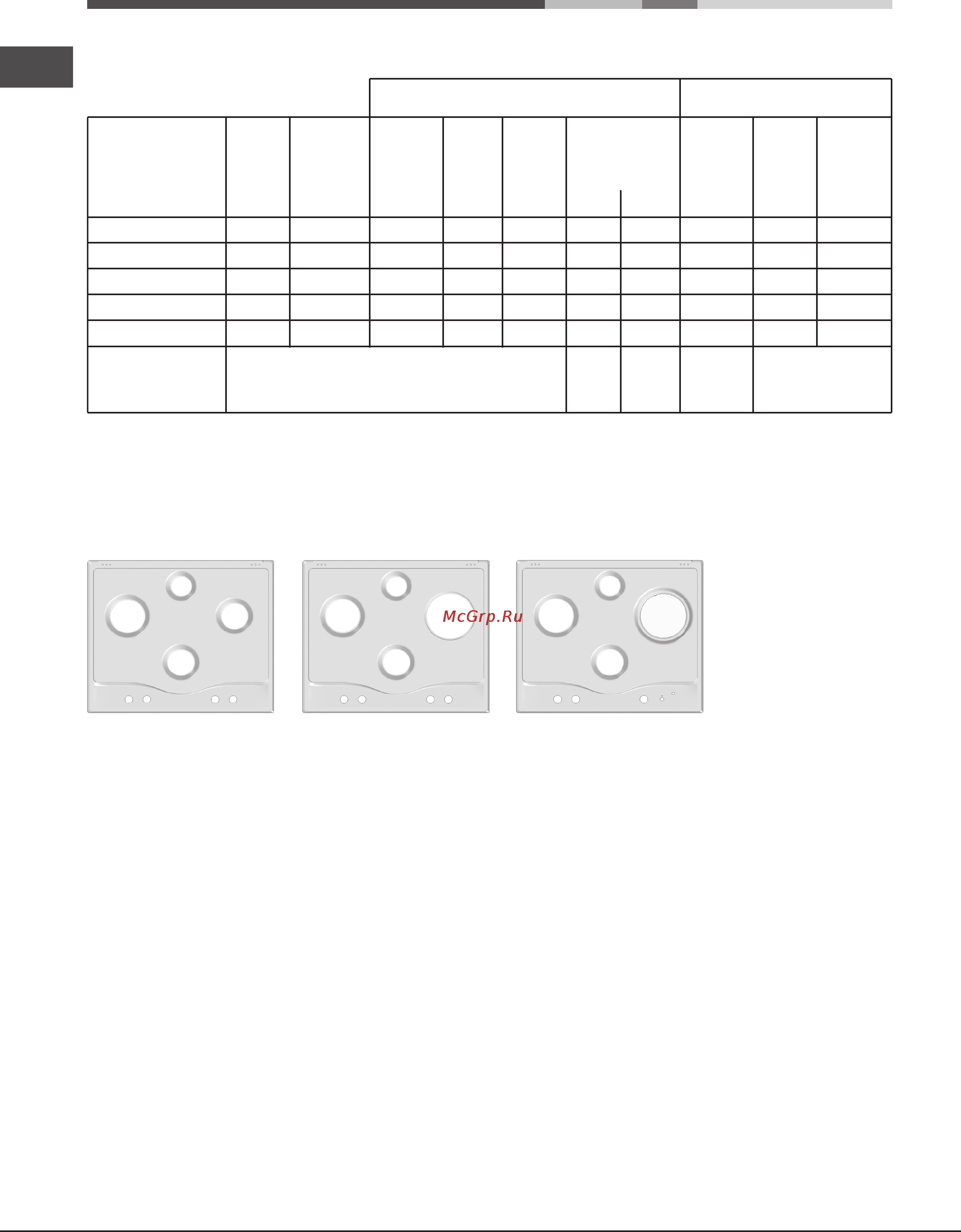

Hotpoint-Ariston PC 640 N X [10/20] Burner and nozzle specifications

Table 1 Liquid Gas Natural Gas

Burner Diameter Thermal Thermal By-pass Nozzle Flow* Thermal Nozzle Flow*

power power 1/100 1/100 (g/h) power 1/100 (l/h)

kW kW kW

(p.c.s.*) (p.c.s.*) (p.c.s.*)

(mm) Reduced Nominal (mm) (mm) *** ** Nominal (mm)

Fast (R)

100 0,70 3,00 39 86 218 214 3,00 132 (H) 286

Reduced Fast (RR) 100 0,70 2,60 39 80 189 186 2,60 122 (H) 248

Semi Fast (S) 75 0,40 1,65 28 64 120 118 1,65 96 157

Auxiliary (A) 55 0,40 1,00 28 50 73 71 1,00 79 (6) 95

Triple Crown (TC) 130 1,50 3,30 61 65x2 240 236 3,30 103 x 2 343

Supply Pressures

Nominal (mbar)

Minimum (mbar)

Maximum (mbar)

28-30

* At 15°C and 1013,25 mbar - dry gas

** Propane P. C.S. = 50.37 MJ/Kg

*** Butane P. C.S. = 49.47 MJ/Kg

Natural P. C.S. = 37.78 MJ/m³

Burner and nozzle specifications

7HPC 631 /HA

7HPC 631 X/HA

Ø145

7HPC 640 /HA

7HPC 640 X/HA

7HPC 640 GH/HA

7HPC 640N /HA

7HPC 640N GH/HA

7HPC 640N X /HA

PC 640N /HA

PC 640N X/HA

GPN 64 O CI RFH

GPN 64 A CI RFH

GPN 64 NW RFH

GPN 64 NCI RFH

GPN 64 NI RFH

7HPC 640 T GH /HA

7HPC 640 T R /HA

7HPC 640 T X /HA

GPN 64 TA CI RFH

GPN 64 TO CI RFH
