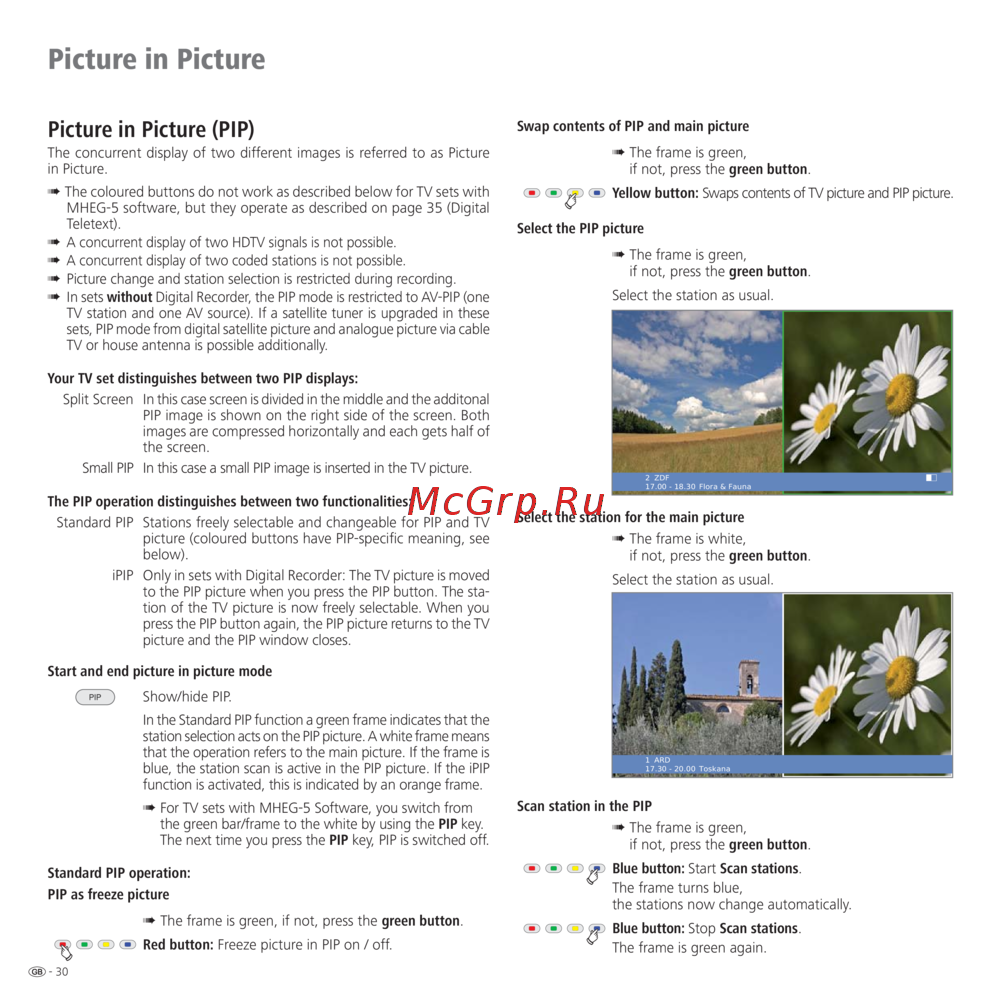

Picture in Picture (PIP)
The concurrent display of two different images is referred to as Picture
in Picture.
➠ The coloured buttons do not work as described below for TV sets with
MHEG-5 software, but they operate as described on page 35 (Digital
Teletext).
➠
A concurrent display of two HDTV signals is not possible.
➠
A concurrent display of two coded stations is not possible.
➠
Picture change and station selection is restricted during recording.
➠
In sets without Digital Recorder, the PIP mode is restricted to AV-PIP (one
TV station and one AV source). If a satellite tuner is upgraded in these
sets, PIP mode from digital satellite picture and analogue picture via cable
TV or house antenna is possible additionally.
Your TV set distinguishes between two PIP displays:
Split Screen In this case screen is divided in the middle and the additonal
PIP image is shown on the right side of the screen. Both
images are compressed horizontally and each gets half of
the screen.
Small PIP In this case a small PIP image is inserted in the TV picture.
The PIP operation distinguishes between two functionalities:
Standard PIP Stations freely selectable and changeable for PIP and TV
picture (coloured buttons have PIP-specific meaning, see
below).
iPIP Only in sets with Digital Recorder: The TV picture is moved
to the PIP picture when you press the PIP button. The sta-
tion of the TV picture is now freely selectable. When you
press the PIP button again, the PIP picture returns to the TV
picture and the PIP window closes.
Start and end picture in picture mode
Show/hide PIP.
In the Standard PIP function a green frame indicates that the
station selection acts on the PIP picture. A white frame means
that the operation refers to the main picture. If the frame is
blue, the station scan is active in the PIP picture. If the iPIP
function is activated, this is indicated by an orange frame.
➠ For TV sets with MHEG-5 Software, you switch from
the green bar/frame to the white by using the PIP key.
The next time you press the PIP key, PIP is switched off.
Standard PIP operation:
PIP as freeze picture
➠ The frame is green, if not, press the green button.
Red button: Freeze picture in PIP on / off.
Swap contents of PIP and main picture
➠ The frame is green,
if not, press the green button.
Yellow button: Swaps contents of TV picture and PIP picture.
Select the PIP picture
➠ The frame is green,
if not, press the green button.
Select the station as usual.
Select the station for the main picture
➠ The frame is white,
if not, press the green button.
Select the station as usual.
Scan station in the PIP
➠ The frame is green,
if not, press the green button.
Blue button: Start Scan stations.
The frame turns blue,
the stations now change automatically.
Blue button: Stop Scan stations.
The frame is green again.
Picture in Picture
17.00 - 18.30 Flora & Fauna
1 ARD
17.30 - 20.00 Toskana
