Check of vertical lines

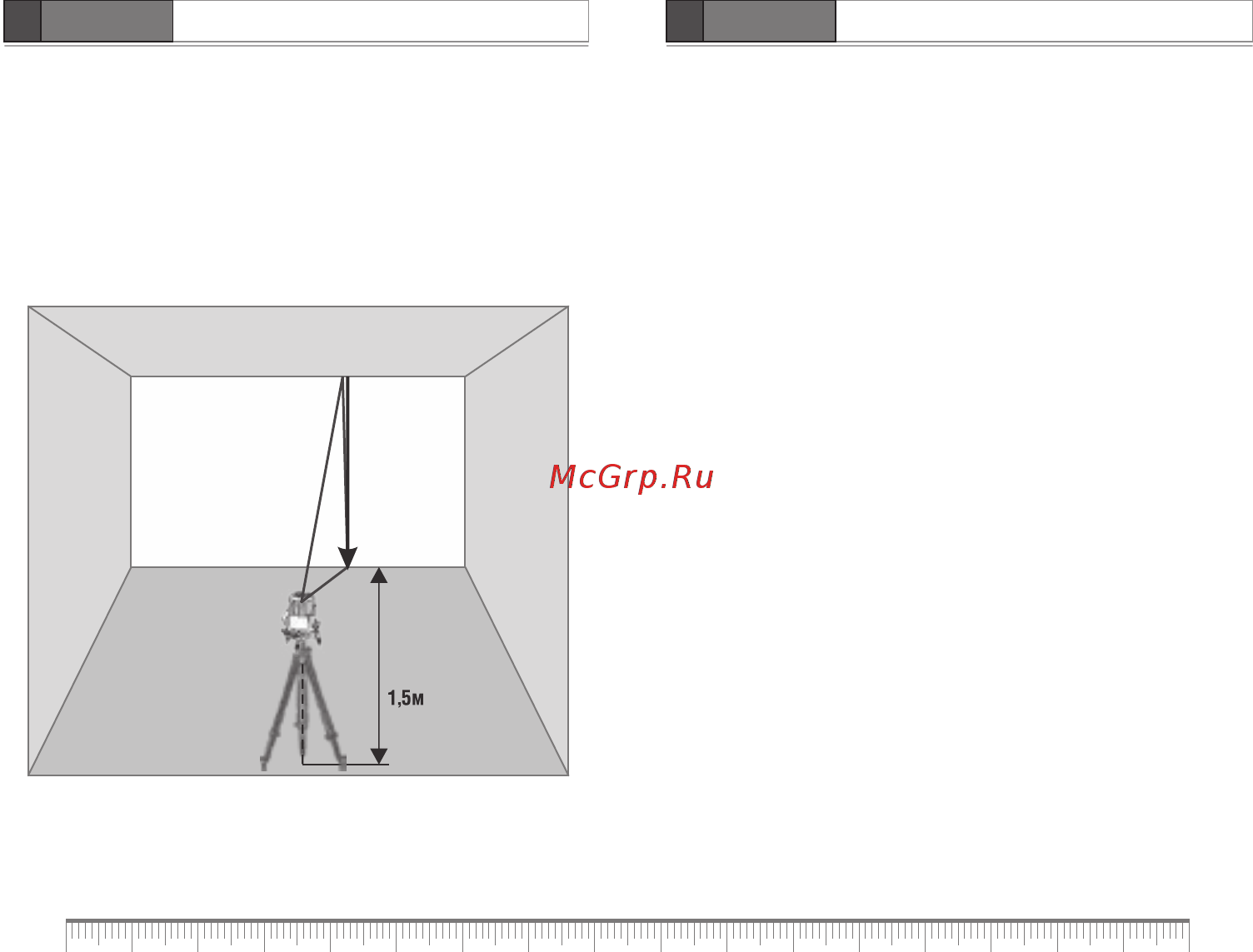

Use a plumb bob as a reference of a vertical. Place the product at
distance of 1,5m from the plumb bob.
1. Switch on vertical plane and align vertical laser line with the low
point of plumb bob.
2. If deviation between the laser line and the plumb line exceeds 0,1
mm per 1m of the plumb bob length (for a 2,5m plumb bob deviation
shouldn’t exceed 0,3 mm) please contact service center.
Check of 90° angle between vertical lines
Place the product on a solid and flat surface.
Switch on vertical planes. Measure a 1 m distance along each of 4
vertical planes from bottom plumb dot (nadir). Mark the ending point
of each line by а1, а2, а3, а4.
Turn the product by 90°,aligning the center of laser line with mark A2.
Make sure that bottom plumb dot doesn’t move. Compare position of
all laser lines with previously made marks. If any of laser lines doesn’t
align with marks A1, A2, A3, A4 – please contact service center.
CARE AND MAINTENANCE
This product is a high-precision instrument and requires careful
handling. Before using as well as after physical impact (falling, hitting)
carry out accuracy check.
Observation of the following recommendations will extend the life of
the device:
1) Store the product, spare parts and its accessories beyond reach of
children and unauthorized people.
2) The product should be transported in the off state inside the case
only.
3) Do not store the product in dusty or dirty locations. The product is
dust and dirt resistant, but long-time exposure to these elements may
damage internal moving parts of the product.
4) Store the product in dry locations. The product is water resistant,
but precipitate, humidity and liquids containing minerals may damage
the electrical circuits of the product. Do not try to dry the unit by fire
or a hairdryer.
5) Do not store the product in locations where temperature is more
than +50°с. High temperatures reduce the life of electronic devices,
damage batteries, deform or melt some plastic parts.
6) Do not store the product in locations where temperature is less
than -10°с.
