Any device that transmits or receives the ADAT optical format may be used

with the Delta 1010 ADAT Interface. Many digital mixers use this ADAT

“standard” 8-channel format, as do other computer interface cards. The audio

you wish to transfer may come from or go to devices such as these.

The Delta 1010-AI Block Diagram below gives you an overview of the signal

flow possible with your Delta 1010-AI. As shown, with all of the

Delta 1010-AI’s switches in the “Off” position, the Delta 1010 PCI card’s

hardware outputs 1 through 8 are routed to the ADAT Optical out of the

Delta 1010-AI in addition to the Delta 1010 analog outs 1 through 8 on the

1010’s rack mount unit “by default.” All other Delta 1010-AI modes are

bypassed. MIDI I/O simply passes through the Delta 1010-AI to the Delta

1010 rack unit.

This default setting may be useful during mixdown. If, while mixing, you use

your ADAT Out from the Delta 1010-AI to send audio to a digital mixer (for

example), the analog outs may be used as additional sends to effect units or

dynamics processors.

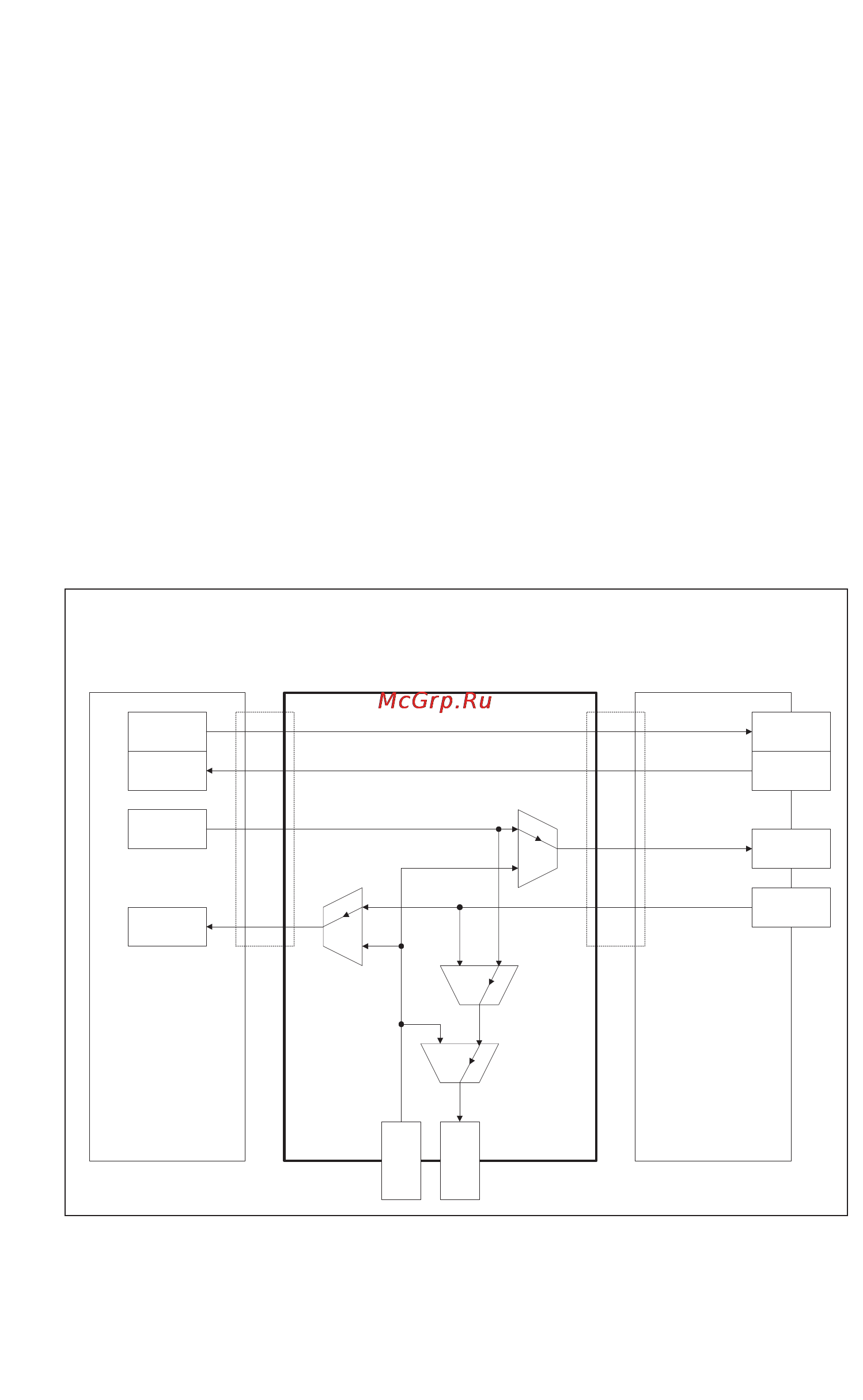

M-Audio Delta 1010-AI Block Diagram

AUDIO INS

AUDIO OUTS

ADAT

OUT

ANALOG OUTS

ANALOG INS

DELTA-1010 RACK

HOST PC w/

DELTA 1010 PCI CARD

DELTA 1010-AI

MIDI IN

MIDI OUTMIDI OUT

MIDI IN

ADAT THRU

ANALOG INS

TO ADAT

ADAT TO

HOST

ADAT TO

ANALOG OUTS

Note: All switches are shown in

their "Off" positions.
