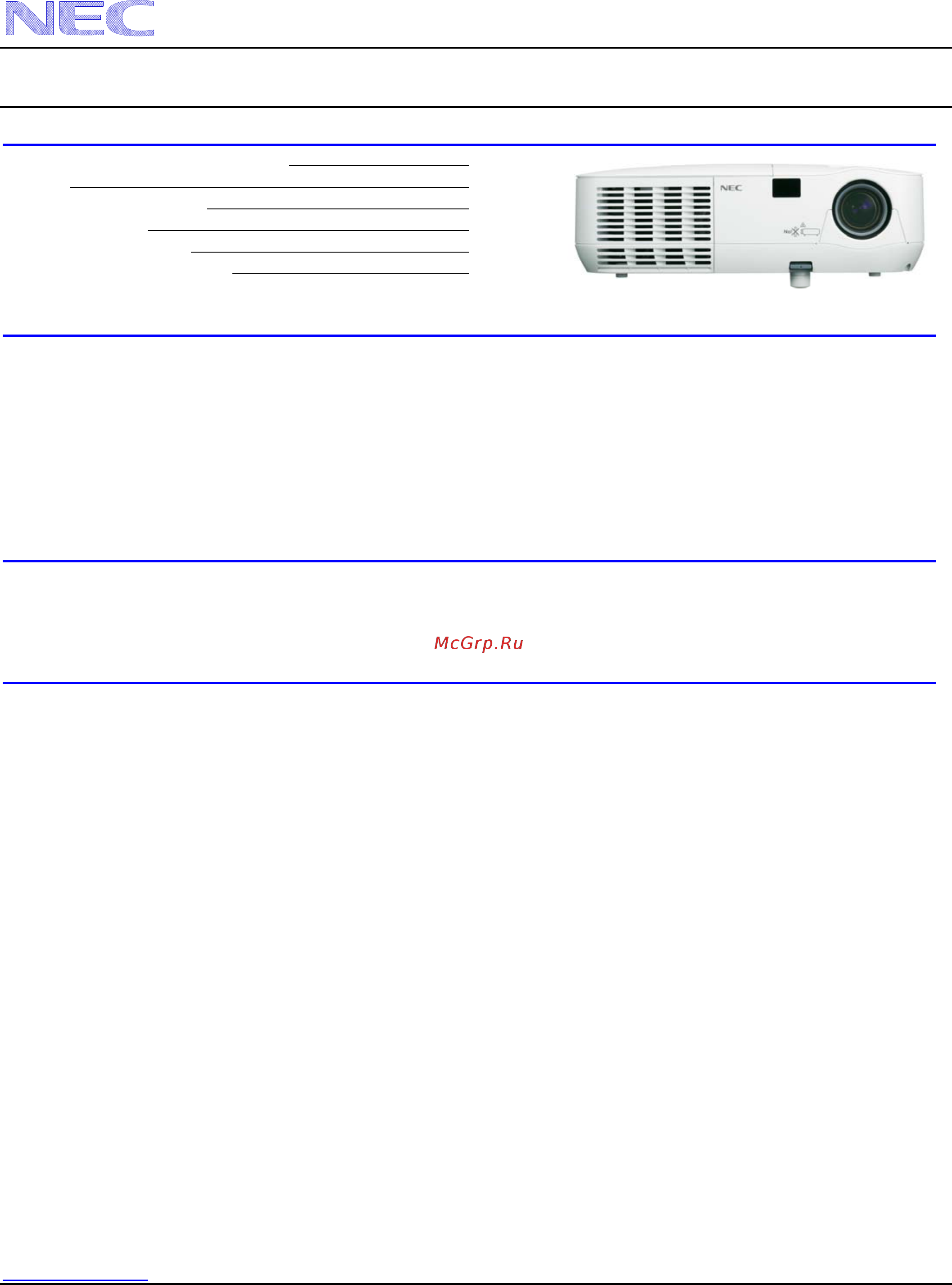

NEC Display Solutions of America, Inc.
V260/V260X/V300X/V300W Installation Guide
Ceiling Mounted and Desktop Rev 1.0
www.necdisplay.com V260/V260X/ V300X/V300W Page 1 of 8
Contents
Product Description, Lens Specs, Notes Pg 1
F
ormulas
Pg 2-3
Diagrams & Distance Charts
Pg 4
Cabinet Dimensions
Pg 5-6
Ceiling Mount Dimensions
Pg 7
Input Panels and Control Codes
Pg 8
Product Description
Type: 1-chip DLP projector, Brightness: V260/V260X: 2600 Lumens
V260/V260X/V300X: 0.55” DLP V300X/V300W: 3000 Lumens
V300W : 0.65” DLP
Resolution: V260: 800 x 600 Fan Noise: V260/V260X: 34dB / 31dB @ 1meter
V260X/V300X: 1024 x 768 V300X/V300W : 37dB / 33dB @ 1meter
V300W : 1280 x 800
Dimensions: 12.2” (W) x 3.7” (H) x 9.7” (D) Weight: 5.5 lbs
Power Consumption: V260/V260X: 242W (max) BTU’s: V260/V260X: 825 BTU/hour
V300X/V300W: 278W (max) V300X/V300W 948 BTU/hour
Lens Specifications
Throw Ratio: 1.9 – 2.1:1 (for 100” diagonal) Focal Length: 21.8mm – 24.0mm
Offset Angle: 12.8° - 14.0° (for 100” diagonal) F/#: 2.41 - 2.55
Screen Sizes: 30” - 300” diagonal (4:3) Manual Focus/Manual Zoom
Notes
For screen sizes not indicated on the projection tables, use the formulas below.
If the figures on the tables do not match the results of formulas, use the figures in the table.
All calculations are based on a 4:3 aspect ratio.
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary 5%.
Содержание
- Ceiling mounted and desktop 1
- Contents 1
- Lens specifications 1
- Nec display solutions of america inc 1
- Product description 1
- V260 v260x v300x v300w installation guide 1
- Ceiling mounted and desktop 2
- Distance chart for popular 4 3 screens 2
- For screen sizes not indicated on the projection tables use the formulas on page 1 2
- Formulas 2
- Nec display solutions of america inc 2
- The projection formulas use the image width for calculation for proper projection placement determine the image width for the desired screen size use the screen formulas below to calculate all screen dimensions plug in the width for w in the projection formulas refer to the diagrams and charts for popular screen sizes on page 2 definitions 4 3 screen formulas w image width w h x 4 3 h image height size h w x 3 4 b vertical distance between lens center and screen center screen diagonal w x 5 4 c throw distance d vertical distance between lens center and screen top screen bottom for desktop application projection formulas b 0 87w c wide 1 4w c tele 2 65w d 0 12w α wide tan ¹ b c wide α tele tan ¹ b c tele 2
- V260 v260x v300x v300w installation guide 2
- Ceiling mounted and desktop 3
- Distance chart for popular 16 10 screens 3
- For screen sizes not indicated on the projection tables use the formulas on page 1 3
- Formulas 3
- Nec display solutions of america inc 3
- The projection formulas use the image width for calculation for proper projection placement determine the image width for the desired screen size use the screen formulas below to calculate all screen dimensions plug in the width for w in the projection formulas refer to the diagrams and charts for popular screen sizes on page 2 definitions 16 10 screen formulas w image width w h x 16 10 h image height size h w x 10 16 b vertical distance between lens center and screen center screen diagonal w x 18 68 16 c throw distance d vertical distance between lens center and screen top screen bottom for desktop application projection formulas b 0 91w c wide 1 5w c tele 1 0w d 0 78w α wide tan ¹ b c wide α tele tan ¹ b c tele 3
- V260 v260x v300x v300w installation guide 3
- Diagrams and distance charts 4
- V260 v260x v300x v300w installation guide 4
- Cabinet dimensions 5
- V260 v260x v300x v300w installation guide 5
- Cabinet dimensions continued 6
- V260 v260x v300x v300w installation guide 6
- Optional ceiling mount dimensions model np01ucm 7
- V260 v260x v300x v300w installation guide 7
- Cable connection 8
- Ceiling mounted and desktop 8
- Communication protocol baud rate 38400 bps data length 8 bits parity no parity stop bit one bit x on off none communications full duplex 8
- Function code data 8
- Input panels 8
- Nec display solutions of america inc 8
- Note 1 pins 1 4 6 and 9 are used inside the projector note 2 for long cable runs it is recommended to set communication speed within the projector to 9600 bps note 3 jumper request to send and clear to send together on both ends of the cable to simplify cable connection 8
- Note contact your nec rep for codes not listed 8
- Pc control codes 8
- Pc control codes pc control codes 8
- Pc control connector d sub 9p 8
- Power on 02h 00h 00h 00h 00h 02h 8
- V260 v260 8
- V260 v260x v300x v300w installation guide 8
- V260x v300x v300w v260x v300x v300w 8
