Содержание

Timberk 1
Модели models 1
Руководство по эксплуатации instruction manual 1
Convector description fig 3
Convector heater with a bracket 1 pc 2 special supports 2 pcs 3 wheels 4 pcs 4 clamps latches for wheel mounting 2 pcs 5 user manual 1 pc 6 guarantee slip 1 pc 3
Convector installation on the wall 3
Delivery set 3
Design and technical characteristics of the convector heater as well as its complete set may be changed by the manufacturer without prior notification when it is needed to improve its quality 3
Dimensional characteristics 3
Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim 3
Iiniiiiiiiiiiiiiii 3
Installation 3
Installation dimensions of the convector heater according to fig 2 are shown in table 3 table 3 3
Mounting of convector heater on legs 3
Open the original packing and take the appliance from there carefully 2 remove foam compactors from the appliance edges and clear it of polyethylene 3 in accordance with fig 2 4 and tables 2 3 specify a place for convector installation with observance of minimum distances from objects and minimum distance from the floor 4 mark an elevation for convector installation and then attach the bracket to the wall 5 make visible marks in mounting holes 6 drill the holes with required diameter in accordance with your marks insert dowels attach 3
Outletgrills 2 heated air outlet 3 cool air inlet 4 control panel 5 case front 6 wheels for mobile transportation 3
Overall dimensions of the convector heater according to fig 2 are shown in table 2 table 2 3
Take the legs from the convector heater box 2 standard set of legs number in one pack includes two special supports four wheels fixed by two on each support two latches to fix leg supports to the convector heater 3 insert the wheels into the support as shown in figure 6 remember that the wheels have a special pin screw for more convenient mounting of the wheels to the support 4 turn the appliance upside down remember that the convector heater should be mounted on the legs only when you unplug it 5 attach the legs to the bottom part of the appliance and make sure that mounting holes match with holes on the appliance case try to dispose legs in alignment with each other and to the convector surface 6 use special latches included in the set see clause 2 to fix the legs to the convector heater perhaps you will have to apply some physical effort to provide the reliable fixing 3
Technical characteristics 3
Technical characteristics of the convector heater are shown in table 1 table 1 3
The bracket and screw set screws fixing the bracket on the wall 7 place the convector heater on the bracket matching 4 slots on rear surface with 4 shoulders on the bracket fig 5 and pull down 8 to fix the convector turn the clamp on the top of the bracket clockwise and make sure that it enters the aperture in rear panel of the convector heater 3
To remove the convector heater repeat the above mentioned actions in reverse order 3
Iniiiiiiiiiiiiiiii 6
Iiiiiiiiiiiiiiiiiii 8
Iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiim 8
Iiiiiiiiiiiiiiiiiii 9
Timberk 9

Похожие устройства

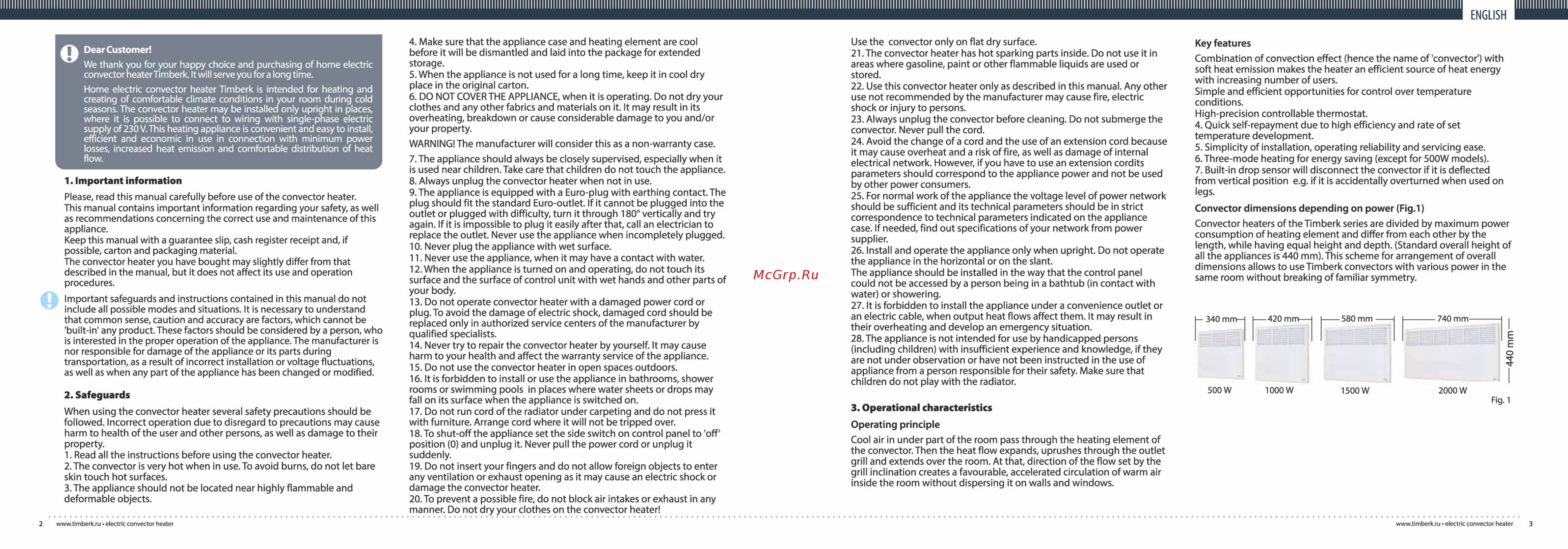

llllllllllllllllll ENGLISH We thank you for your happy choice and purchasing of home electric convector heaterTimberk It will serve you for a long time Home electric convector heater Timberk is intended for heating and creating of comfortable climate conditions in your room during cold seasons The convector heater may be installed only upright in places where it is possible to connect to wiring with single phase electric supply of 230 V This heating appliance is convenient and easy to install efficient and economic in use in connection with minimum power losses increased heat emission and comfortable distribution of heat flow 1 Important information Please read this manual carefully before use of the convector heater This manual contains important information regarding your safety as well as recommendations concerning the correct use and maintenance of this appliance Keep this manual with a guarantee slip cash register receipt and if possible carton and packaging material The convector heater you have bought may slightly differ from that described in the manual but it does not affect its use and operation procedures Important safeguards and instructions contained in this manual do not include all possible modes and situations It is necessary to understand that common sense caution and accuracy are factors which cannot be built in any product These factors should be considered by a person who is interested in the proper operation of the appliance The manufacturer is nor responsible for damage of the appliance or its parts during transportation as a result of incorrect installation or voltage fluctuations as well as when any part of the appliance has been changed or modified 2 Safeguards When using the convector heater several safety precautions should be followed Incorrect operation due to disregard to precautions may cause harm to health of the user and other persons as well as damage to their property 1 Read all the instructions before using the convector heater 2 The convector is very hot when in use To avoid burns do not let bare skin touch hot surfaces 3 The appliance should not be located near highly flammable and deformable objects 2 www timberk ru electric convector heater 4 Make sure that the appliance case and heating element are cool before it will be dismantled and laid into the package for extended storage 5 When the appliance is not used for a long time keep it in cool dry place in the original carton 6 DO NOT COVER THE APPLIANCE when it is operating Do not dry your clothes and any other fabrics and materials on it It may result in its overheating breakdown or cause considerable damage to you and or your property WARNING The manufacturer will consider this as a non warranty case 7 The appliance should always be closely supervised especially when it is used near children Take care that children do not touch the appliance 8 Always unplug the convector heater when not in use 9 The appliance is equipped with a Euro plug with earthing contact The plug should fit the standard Euro outlet If it cannot be plugged into the outlet or plugged with difficulty turn it through 180 vertically and try again If it is impossible to plug it easily after that call an electrician to replace the outlet Never use the appliance when incompletely plugged 10 Never plug the appliance with wet surface 11 Never use the appliance when it may have a contact with water 12 When the appliance is turned on and operating do not touch its surface and the surface of control unit with wet hands and other parts of your body 13 Do not operate convector heater with a damaged power cord or plug To avoid the damage of electric shock damaged cord should be replaced only in authorized service centers of the manufacturer by qualified specialists 14 Never try to repair the convector heater by yourself It may cause harm to your health and affect the warranty service of the appliance 15 Do not use the convector heater in open spaces outdoors 16 It is forbidden to install or use the appliance in bathrooms shower rooms or swimming pools in places where water sheets or drops may fall on its surface when the appliance is switched on 17 Do not run cord of the radiator under carpeting and do not press it with furniture Arrange cord where it will not be tripped over 18 To shut off the appliance set the side switch on control panel to off position 0 and unplug it Never pull the power cord or unplug it suddenly 19 Do not insert your fingers and do not allow foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or damage the convector heater 20 To prevent a possible fire do not block air intakes or exhaust in any manner Do not dry your clothes on the convector heater Use the convector only on flat dry surface 21 The convector heater has hot sparking parts inside Do not use it in areas where gasoline paint or other flammable liquids are used or stored 22 Use this convector heater only as described in this manual Any other use not recommended by the manufacturer may cause fire electric shock or injury to persons 23 Always unplug the convector before cleaning Do not submerge the convector Never pull the cord 24 Avoid the change of a cord and the use of an extension cord because it may cause overheat and a risk of fire as well as damage of internal electrical network However if you have to use an extension cordits parameters should correspond to the appliance power and not be used by other power consumers 25 For normal work of the appliance the voltage level of power network should be sufficient and its technical parameters should be in strict correspondence to technical parameters indicated on the appliance case If needed find out specifications of your network from power supplier 26 Install and operate the appliance only when upright Do not operate the appliance in the horizontal or on the slant The appliance should be installed in the way that the control panel could not be accessed by a person being in a bathtub in contact with water or showering 27 It is forbidden to install the appliance under a convenience outlet or an electric cable when output heat flows affect them It may result in their overheating and develop an emergency situation 28 The appliance is not intended for use by handicapped persons including children with insufficient experience and knowledge if they are not under observation or have not been instructed in the use of appliance from a person responsible for their safety Make sure that children do not play with the radiator Key features Combination of convection effect hence the name of convector with soft heat emission makes the heater an efficient source of heat energy with increasing number of users Simple and efficient opportunities for control over temperature conditions High precision controllable thermostat 4 Quick self repayment due to high efficiency and rate of set temperature development 5 Simplicity of installation operating reliability and servicing ease 6 Three mode heating for energy saving except for 500W models 7 Built in drop sensor will disconnect the convector if it is deflected from vertical position e g if it is accidentally overturned when used on legs Convector dimensions depending on power Fig 1 Convector heaters of the Timberk series are divided by maximum power consumption of heating element and differ from each other by the length while having equal height and depth Standard overall height of all the appliances is 440 mm This scheme for arrangement of overall dimensions allows to use Timberk convectors with various power in the same room without breaking of familiar symmetry 440 mm Dear Customer 500 W 1000W 3 Operational characteristics 1500W 2000 W Fig 1 Operating principle Cool air in under part of the room pass through the heating element of the convector Then the heat flow expands uprushes through the outlet grill and extends over the room At that direction of the flow set by the grill inclination creates a favourable accelerated circulation of warm air inside the room without dispersing it on walls and windows www timberk ru electric convector heater 3
