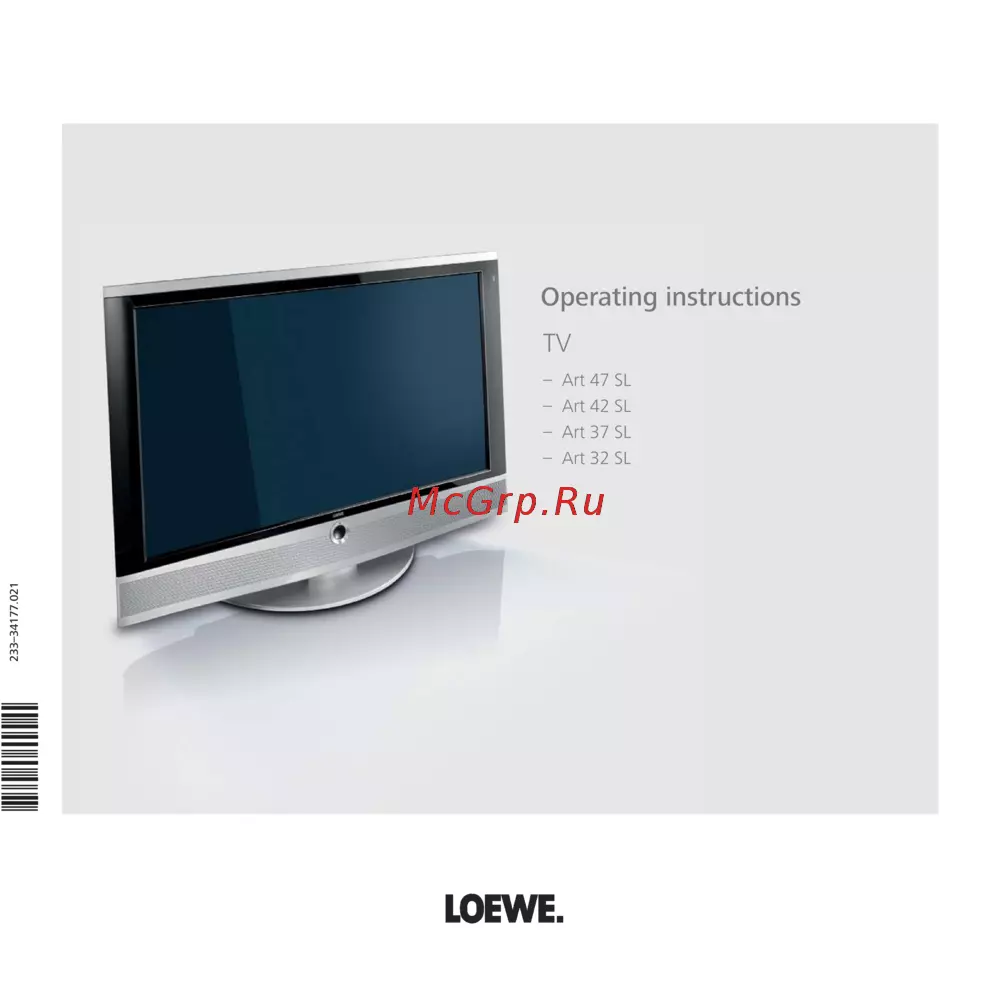

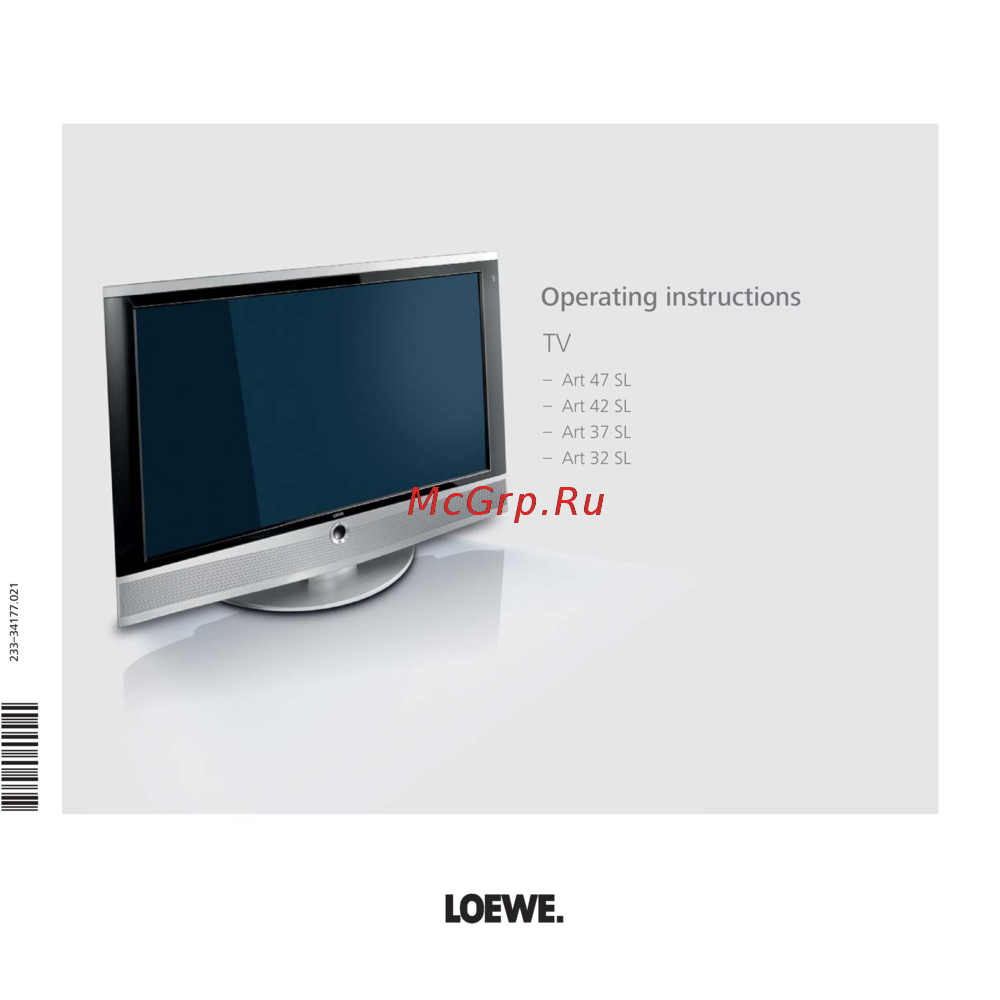

Operating instructions

– Art 47 SL

– Art 42 SL

– Art 37 SL

– Art 32 SL

233–34177.021

Содержание

Operating instructions 1
Contents 2
Remote control tv functions 3
Control unit front side of the device 4
Only with integrated digital recorder 4
Radio only for dvb reception provided the station broadcasts this otherwise switch over to an audio input 4
Before you connect other devices or make any changes please start the connection wizard page 46 and the sound components wizard page 54 and then follow the instructions that are displayed on the tv set 5
Connections rear side of the device art 32 sl 5
Factory setting av2 dvd recorder 5
You can change this during the ini tial installation page 13 or in the connection wizard page 46 5
Before 6
Before you connect other devices or make any changes please start the con nection wizard page 46 and the sound components wizard page 54 and then follow the instructions that are displayed on the tv set 6
Connections rear side of the device art 37 sl 6
Factory setting av2 dvd recorder 6
Follow 6
Make a 6
Nection 6
On the 6
You can change this during the initial installation page 13 or in the connection wizard page 46 6
Before you connect other devices or make any changes please start the con nection wizard page 46 and the sound components wizard page 54 and then follow the instructions that are displayed on the tv set 7
Connections rear side of the device art 42 sl art 47 sl 7
Factory setting av2 dvd recorder 7
You can change this during the initial installation page 13 or in the connection wizard page 46 7
About this operating manual 8
Scope of delivery 8
Thank you 8
Tv set equipment 8
Welcome 8
If after the initial installation you want to search for new stations or if you have set up your antenna for the first time then you can handle this task with the help of the search wizard see page 28 you will find the search wizard in the tv menu under setting 9
Info display and tv index 9
Operating convenience with wizards 9
The wizards in overview 9
Welcome 9
You can return to the previous step or exit the wizard at any time 9
You will find the connection wizard in the tv menu under connection 9
For your safety 10
Environmental protection 11
For your safety 11
Connecting the tv set 12
Initial installation 12
Installing the tv set 12
Preparing the remote control unit 12
Activate the mains switch on the bottom of the set the display in the control panel on the front of the set will be illuminated red the set is now in standby mode 13
An example of multiple selection using the yellow button 13
Before switching off the set with the mains switch we recommend you to switch it to standby mode 13
Brief explanation of button functions 13
By pressing the ok button a setting is confirmed and you will go to the next step 13
Continued on next page 13
Display 13
Exit the wizard with the end button if available 13
First installation wizard 13
If at least one station is locked the access code must be entered before repeating initial installation see parental lock on page 43 13
Initial installation 13
Initial installation after switching on for the first time this wizard starts automatically after the set is switched on for the first time however it can also be called later manually in the tv index see repeat initial installation on page 18 13
Meaning of the display colour red standby mode green tv set is switched on orange radio mode tv set receives epg data or timer recording active 13
Or assist button assist menu is called 13
Or numeric buttons 13
Or ok button station list is called 13
Or press the audio button on the remote control radio mode see page 38 13
Or tv button 13
Press r on the tv control unit 13
Press the on off button 13
Press the on off button in the middle for about 2 seconds to switch the tv set on off 13
Press the ring up down left right to move the cursor and to select settings 13
Switch on in radio mode 13
Switching the set off with the remote control 13
Switching the set on with the remote control 13
Switching the tv on off on the control unit 13
Switching the tv set to standby mode 13
The first step with the wizard starts when selecting the language for the user prompts from this point on follow the instructions on your tv set 13
Turning the set on off 13
Use this button to go back one step 13
With the yellow button you can select or remove the indi vidual items see the example below when an element is selected it is marked by a checkmark 13
Initial installation 14
Initial installation 15
Positioning aligning the dvb t antenna 15
General information on menu operation 16
Operating convenience 16
The info display 16
Operating convenience 17
The assist menu 17
The index in the tv set 17
Operating convenience 18
Picture sound connections recording 18
Settings 18
Tv menu 18
Tv menu overview diagram 18
Epg menu teletext menu 19
Operating convenience 19
Other menus overview diagram 19
Radio menu 19
Radio menu overview diagram 19
Sound stations timer functions 19
Blue button changes the sorting between numerically and alphabetically 20
Call last viewed station for tv sets with mheg 5 software 20
Daily operation 20
Digit and 3 digit stations press first and second numeric button briefly keep the last numeric button pressed for one second the station changes immediately or press all the numeric buttons briefly the station changes after 2 seconds changes immediately in case of up to 99 or 999 stored stations 20
Digit stations keep the numeric button pressed for one second the station changes immediately or press numeric button briefly the station changes after 2 seconds immediate change for up to 9 stored stations 20
Digit stations press all four numeric buttons the station changes imme diately 20
Enter initial letters with the numeric buttons like with a mobile phone keypad see page 16 the first station for the specified letters is marked 20
If favourites are selected the station in the favourites list is switched over with p p see page 21 if other languages or dvb subtitles are available on dvb stations the language and subtitle selection is displayed under the station display see also 27 additional selection possibilities for dvb stations 20
If favourites are selected you can switch to the station in the favourites list with the numeric buttons see page 21 maximum two digit station numbers are possible 20
In normal tv mode without other displays no favour ites selected 20
Jump to the next station block 20
Mark stations 20
Mark stations ok the marked station is called 20
Ok call station list 20
Ok the marked station is called 20
Or enter the number of the station with the numeric buttons the marked station is shown as a small picture 20
P p scroll in the pages of the station list 20
P p station up down the station display with sound identification is displayed briefly 20
Select station 20
When you select an empty memory location the tv switches to the next available station 20
With the keys p and p on the remote control 20
With the numeric keys of the remote control 20
With the station list 20
You can switch back and forth quickly between two stations using these buttons 20
A signal from the selected video source should now be visible 21
Call av selection 21
Daily operation 21
Explanation of the favourites lists the selection made with the red button favourites list is retained until you switch back to the station list with the red button if favourites are selected the name of the favourites list appears in the status display after the station name after changing stations 21
Explanation of the icons following station names digital dvb t station terrestrial via antenna digital dvb c station via cable digital dvb s station via satellite coded station v ci plus coded station locked station see parental lock on page 41 21
In normal tv mode without other displays 21
In numerical sorting the connections or devices are always at the beginning of the list in alphabetic sorting the connections or devices are sorted in alphabetically 21
Mark stations 21
Ok call the station list if the favourites list is displayed switch to the station list first 21
Ok calls the station list 21
P p scroll in the pages of the favourites list 21
Please ensure that the appropriate devices have also been registered with the connection wizard see page 46 21
Red button back to the station list green button scan all stations of the currently selected favourites list yellow button change the favourites lists see page 29 21
Red button calls the favourites list 21
Select connection device ok switch over 21
Select desired device or connection ok switch over 21
Select other favourites list ok the marked station is called other favourites lists can only be selected if these contain stations 21
Select station directly with numeric buttons or 21
Select video source 21
With the av selection 21
With the favourites lists 21
With the station list 21
You can save and call your favourite stations in 6 favourites lists e g for multiple users each favourites list can contain up to 99 stations after initial installation 10 stations from the station list are already stored in the first list change the favourites list to suit your requirements see put together change favourites lists on page 29 21
Adjusting the sound 22
Daily operation 22
Daily operation 23
Adjusting the picture 24
Daily operation 24
Daily operation 25
Operation without remote control 25
Button functions 26
Daily operation 26
Daily operation 27
Managing stations 28
Tv stations 28
Managing stations 29
Call tv menu 30
Change delete move rename restore station change station can also be called via the station list page 20 if at least one station is locked the access code must be entered before changing stations start up see parental lock on page 43 30
Delete station 30
Enter the letters one after another with the numeric buttons on the remote control like using a mobile phone keypad press a numeric button until the desired charac ter appears the available letters are printed respectively on the buttons different special characters can be selected with button 1 30
Green button starts restore stations 30
Green button switch upper lower case letters 30
In this menu you can delete move rename or restore stations or numeric buttons select the appropriate station scroll with p p if necessary 30
Managing stations 30
Move station change order not possible for mheg 5 stations stations can only be resorted within the signal source block 30
Not possible for mheg 5 stations dvb stations which also transmit the station name cannot be renamed in this case the rename function is hidden 30
Ok to save new name 30
Red button starts delete station select several stations to be deleted if necessary ok to execute the delete 30
Rename station 30
Restore stations stations which have been deleted from the station list can be restored 30
Select change stations ok call list of stations 30
Select settings go to the menu line below 30
Select station ok 30
Select stations go to the menu line below 30
Station 30
The restored station is sorted in according to its signal source at the end of the respective signal bloc 30
Under the 1st letter of the name you will see a line indicating the current input position input position one character to the right also for blanks input position one character to the left deletes the character 30
Yellow button starts move station mark several stations if needed ok selection ended select insertion position from which the selected stations are to be inserted ok to execute the move 30
Add station to favourites list 31
All stations left column must be selected if not change the list with 31
Blue button starts rename favourites list 31
Call tv menu 31
Change favourites can also be called via the favourites list page 21 31
Delete station from favourites list 31
Each favourites list can contain up to 99 stations you can put together the favourites lists to suit your requirements e g topic lists other persons using this tv set can create their own favourites lists the favourites lists also have the advantage that the stations of different signal sources can be stored in the order you wish 31
Enter the initial letters in case of alpha betical station orde 31
Favourites list right column must be selected if not change the list with 31
Green button select the next favourites list 31
Managing stations 31
Mark station to be deleted ok removes the marked station from the favourites list 31
Mark station to be moved 31
Move change order of stations in the favourites list 31
Numeric buttons enter new name same procedure as under rename station see page 30 31
Ok confirms clear favourites list 31
Ok to execute the move 31
Ok to save new name 31
Ok transfers the station to the favourites list the new station is inserted at the end of the favour ites list proceed in the same manner with addi tional stations 31
P p scroll in the pages of the station list if necessary 31
Put together change favourites list 31
Red button starts clear favourites list 31
Rename favourites list 31
Select insertion position at which the selected station is to be inserted 31
Select select change favourites ok calls list of all stations and last active favourites list 31
Select settings go to the menu line below 31
Select stations go to the menu line below 31
The insertion position can also be selected with the numeric buttons 31
Yellow button starts move station 31
Picture in picture 32
Picture in picture pip 32
Configure picture in picture pip mode 33
Picture in picture 33
Electronic programme guide 34
Electronic programme guide epg 34
Configuring epg 35
Electronic programme guide 35
Teletext 36
Teletext 37
Teletext menu 37
Digital radio 38
Digital teletext mheg 5 38
Radio mode 38
Teletext 38
Audio adjustment 39
Audio playback from external devices 39
Call radio menu radio mode switched on if not press the audio button 39
Call sound adjustment other settings as for tv mode see page 22 39
Call the radio menu 39
Digital radio 39
Epg electronic programme guide radio 39
For the dvb radio stations you can also use an electronic programme guide if the station that is currently active supplies data 39
Ok open station list the av inputs are listed in front of the first radio station 39
Or press r on the operating ring on the tv set 39
Press tv button on the remote control 39
Radio menu in the radio menu you can set the sound search for and store radio stations automatically or manually change stations and set switch off alarm functions the settings are made as described in tv mode 39
Radio mode switched on if not press the audio button 39
Red button switch off the screen 39
Start playback on the external device after selecting the av input 39
Starting and ending epg radio mode switched on if not press the audio button 39
Switch epg on off 39
Switch off radio mode 39
Switch on the screen on the tv set press r on the tv set operating ring 39
Switch on the screen with the remote control press red button audio button or ok button station list is opened 39
Switching the screen on off 39
The epg functions in radio mode are the same as in tv mode read from page 34 onwards for further information 39
The led display on the tv set see page 4 changes from green to orange 39
The selection of the av inputs is the same as in tv mode see pages 20 and 21 39
You can play the sound of external av devices e g mp3 players dvd players in radio mode select av input 39
Software update 40
Conditional access module ca module 42
Other settings 43
Parental lock 43
Language 44
Other settings 44
Timer functions 44
On screen displays 45
Other settings 45
Time and date 45
A camcorder camera is connected to the tv set addition ally in the following example 46
Av equipment selection 46
Call tv menu 46
Connection diagram 46
Connection wizard 46
New equipment should not be connected until it has been logged in in the connection wizard first dvd recorder at av2 is preset at the factory 46
Ok proceed 46
Operating additional equipment 46
Select connections go to the menu line below 46
Select equipment connection 46
Select new devices modifications ok calls the wizard 46
Select the equipment you want to connect or remove equipment you no longer use in the av equipment selection 46
The accessory equipment should be connected to the tv set with the power off disconnected from the mains see also the instructions in the operating manual of the equipment to be connected 46
The connection diagram is displayed again connect the equipment to the corresponding connections of the tv set as shown in the connection diagram 46
The connection diagram shows the currently logged in equipment 46
The connection wizard can be exited at any time with the end button 46
The connection wizard serves to connect accessory equipment optimally to the tv set make changes to the wiring of the devices or remove mo mentarily logged in equipment the exact process of the wizard depends on the choice of equipment 46
Yellow button connect disconnect equipment 46
Gaming mode 47
Operating additional equipment 47
Devices to the connections av1 av2 avs 48
Operating additional equipment 48
Operating additional equipment 49
Devices to the hdmi dvi connections 50
Operating additional equipment 50
Concealed installation of hdmi devices 51
Operating additional equipment 51
Devices to the pc in connection 52
Operating additional equipment 52
Devices to the component in connection 53
Operating additional equipment 53
Operating additional equipment 54
Play sound via active speakers 54
Play sound via tv speakers and active subwoofer 54
Sound components wizard 54
Connecting audio amplifiers 55
Operating additional equipment 55
Assignment of the digital audio input 56
Audio connection in hdmi dvi devices 56
Operating additional equipment 56
Rs 232c interface upgradable interface 56
Operating additional equipment 57
The direct way to record 57
Operating additional equipment 58
Operating additional equipment 59
Timer recording with external devices 59
Operating additional equipment 60
Photoviewer 60
Operating additional equipment 61
Musicbox 62
Operating additional equipment 62
Musicbox browse sort 63
Operating additional equipment 63
Blue button call create play list a new empty play list is created the file selection is visible on the left 64
Call play play list 64
Change play lists you can adapt the play lists as required it is possible to move the titles in the play lists or remove them from the list the play list can be renamed or deleted completely 64
Create new play list add title 64
Go to the page of the play list right column 64
Green button call change play list 64
Green button select play list to be changed 64
In the play list overview you see the created play lists on the left hand side of the dialogue on the right next to it you see the music files in the marked play list 64
Mark title folder scroll with p p if necessary ok adopt marked title to play list or open marked folder yellow button adopt marked folder to play list 64
Musicbox play lists 64
Ok the play list is displayed again change from list selection to title selection 64
Ok the play list is played in the musicbox status window starting with the first title the name of the play list is displayed after the title 64
Operating additional equipment 64
Red button call play lists 64
Select play list scroll with p p if necessary 64
Select title scroll with p p if necessary ok the play list is played in the musicbox status window from the marked title 64
The musicbox list is displayed 64
The play list overview is displayed 64
The play list overview is displayed list selection left column must be selected if not change the column with 64
You can save and call your music titles in play lists change and create play lists as you like the play lists are created on the memory medium in the common m3u format for simple exchange with the pc 64
Musicbox menu 65
Operating additional equipment 65
2 3 4 5 6 66
23 24 25 26 66
Operating additional equipment 66
Operating loewe equipment 66
Operating additional equipment 67
Operating additional equipment 68
Rotating the tv set upgradable interface 68
Troubleshooting 69
Troubleshooting 70
Connections max equipment 71
Electrical data 71
General data 71
Technical data 71
Accessories 72
Setup possibilities 72
Accessories 73
Upgrade kits 73
Accessories 74
Equipment variants 74
Glossary 75
Glossary 76
Glossary 77
Glossary 78
Acknowledgements 81
Trademarks 81
Service 82

Loewe Art 32 SL Full-HD+ 100 Инструкция по эксплуатации онлайн

Содержание

Похожие устройства
