5
TIMER
By setting the timer at the desired time, the fan will automatically stop, when the time comes.
When not using the timer, set the knob (5) at "ON".
If the knob is set on "OFF" the fan will not operate even if you push the push/button switch.
OSCILLATION
Simply press down on the button located vertically at the rear of the motor. To stop the oscil/
lation action, pull the button back up to its initial position.
SETTING THE TILT ANGLE
Slack off the knurled screw on the ball joint, move the fan to the desired angle, then tighten
the knurled screw down again.
MAINTENANCE
1. Always unplug the fan before performing any maintenance work.
2. Carefully clean the fan prior to storing.
3. When storing the fan during the winter months, be sure to keep it in a dry location protect/
ed from damp.
4. While using the fan, be sure to keep it clean by periodically wiping it with a cloth soaked in
soapy water.
5. Never use detergents or solvents.
6. Always follow the assembly procedure with care when re/assembling the fan.

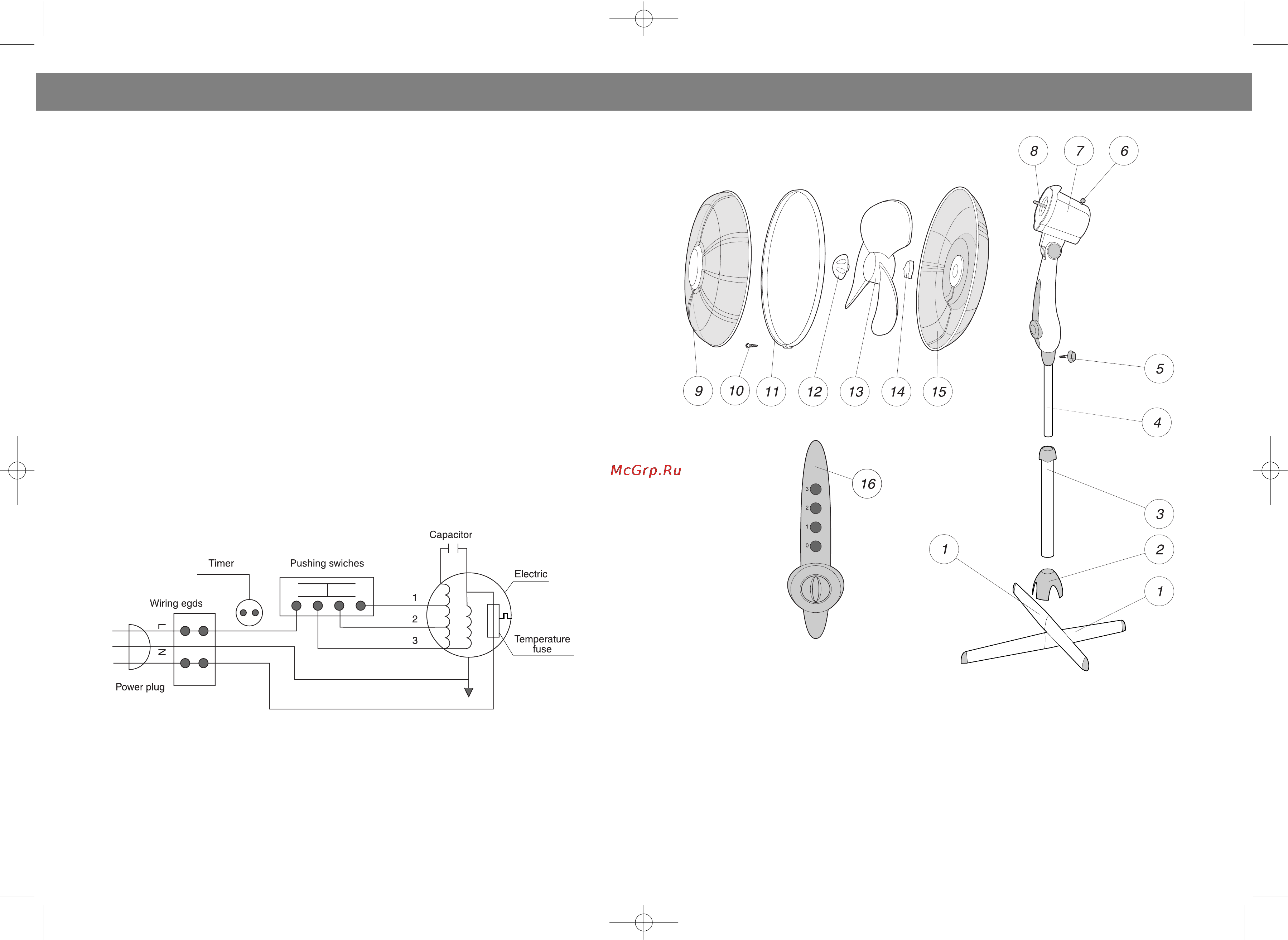

ELECTRIC PRINCIPLES DIAGRAM
SPECIFICATION
Power 60 W
Voltage 220/240 V ~ 50 Hz
Blade/diameter 16” (40 cm.)
3/speed control
SERVICE LIFE OF THE FAN NOT LESS THAN 5 YEARS
4
ENGLISH РУССКИЙ
1. Перекладины
2. Фиксатор перекладины
3. Нижняя часть основания
4. Верхняя выдвижная трубка
5. Винт, фиксирующий
высоту вентилятора
6. Кнопка поворота корпуса
7. Кожух двигателя
8. Вал
9. Передняя решетка
10. Винт для крепления обода
11. Обод
12. Фиксатор лопастей вентилятора
13. Лопасти вентилятора
14. Гайка для крепления
задней решетки
15. Задняя решетка
16. Панель управления
СХЕМА И ОПИСАНИЕ ЭЛЕМЕНТОВ ВЕНТИЛЯТОРА
