TIMER: This fan is equipped with a timer setting from 0.5hr up to 7.5hr, 0.5hr for each
press (0.5hr, 1hr, 1.5hr…7.5hr).To activate the timer, press the TIMER button on the
remote control, or the TIMER button on the touchkey pad. Continue to press the
TIMER button to cycle through your setting options.
NOTE:
Timer can be used in conjunction with several other functions.
WIND MODE: This fan enable you to enjoy various wind movements by press the WIND
MODE button on the remote control or the touchkey pad. Press this button first for the
NATURAL mode which will imitate breeze by varying the fan speeds between fast and
slow. Press the MODE button a second time, you activate the SLEEP setting which
slows the fan speed down, and when press the Mode button a 3rd time to return to
NORMAL wind. NOTE: NORMAL wind mode is the default setting; it will be activated
when you turn on the fan.
SWING: To swing the fan head, press the button marked SWING on the remote or the
SWING button on touchkey pad. Press a second time to stop swinging.
HEIGHT ADJUSTMENT: Push the height adjustment button at the back of the lower
body, while another hand gently supports the upper body. The upper body will mechan
ically glide up or glide down when given slight pressure. Release the button to secure
the height when desired position is obtained.
TILT ADJUSTMENT: To change the tilting angle of the fan head, move the fan head to
the desired position. The detent will automatically secure the angle you desire.
CLEANING/MAINTENANCE INSTRUCTIONS
Follow these instructions to correctly and safely care for your SD stand fan. Please remember:
• Always unplug the fan before cleaning or disassembling.
• DO NOT allow water to drip on or into the fan motor housing.
• DO NOT use any of the following as a cleaner: gasoline, thinner, benzene.
Fan Blade Cleaning:
STEP 1:
To access the fan blade, remove the front grill and securing screw.
STEP 2: Clean the fan blade, front and rear grills with a soft, moist cloth.
STEP 3:
Replace blade, tighten screw, and securely fasten the front grill.
Fan Head, Base & Pole Cleaning:
Using a soft, moist cloth, with or without a mild soap solution, carefully clean the fan base, pole, and head. Please use
caution around the motor housing area. DO NOT allow the motor or other electrical components to be exposed to water.
FAN STORAGE INSTRUCTIONS
Your fan can be stored in the offseason either partially disassembled or assembled. It is important to keep it in a safe,
dry location.
• If stored disassembled, we recommend using the original (or appropriately sized) box.
• If stored assembled or partially assembled, remember to protect the fan head from dust.
NOTICE:
1. To avoid malfunction, please DO NOT crash the fan during transportation, assembly and storage
2. After long time operation, the shell temperature will rise slightly. This is a normal phenomenon
3. If abnormal noise, smell or smoke appears during operation, please cut the power immediately, and send it to service
or qualified personnel for adjustment or repairing
SPECIFICATION
Power 55 W
Voltage 220230 V ~ 50 Hz
Bladediameter 14”
Timer 7,5 Hours
SERVICE LIFE OF THE FAN NOT LESS THAN 5 YEARS
4
ENGLISH

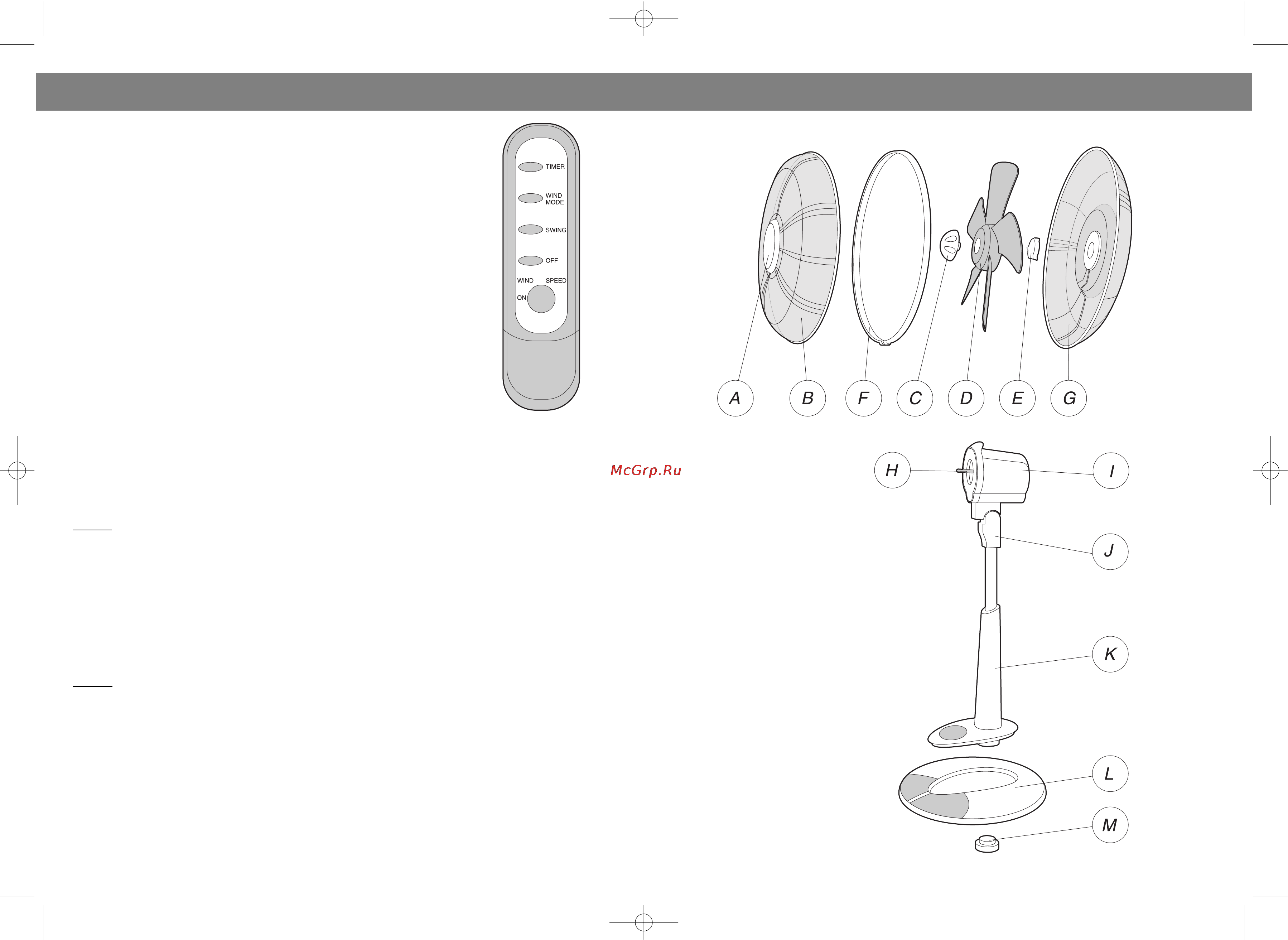

СХЕМА ВЕНТИЛЯТОРА
УКАЗАНИЯ ПО СБОРКЕ:
A. Декоративная
накладка решетки
B. Передняя решетка
C. Гайка лопасти
вентилятора
D. Лопасть вентилятора
E. Монтажное кольцо
F. Кольцо решетки
G. Задняя решетка
H. Вал двигателя
I. Кожух двигателя
J. Верхний конец стойки
K. Нижний конец стойки
L. Подставка
M. Гайка подставки
РУССКИЙ
1916.qxd 10.12.03 12:03 Page 8
Содержание
- Manual instruction инструкция по эксплуатации 1
- Модель vt 1916 1
- A grill hub b front grill c fan blade nut d fan blade e rear grill mounting ring f grill ring g rear grill h motor shaft i motor housing j upper pole k lower pole l base m base nut 2
- Description of parts 2
- English 2
- Name of components 2
- Qxd 10 2 3 12 03 page 4 2
- Русский 2
- English 3
- Qxd 10 2 3 12 03 page 6 3
- Русский 3
- A декоративная накладка решетки b передняя решетка c гайка лопасти вентилятора d лопасть вентилятора e монтажное кольцо f кольцо решетки g задняя решетка h вал двигателя i кожух двигателя j верхний конец стойки k нижний конец стойки l подставка m гайка подставки 4
- English 4
- Qxd 10 2 3 12 03 page 8 4
- Русский 4
- Схема вентилятора 4
- Указания по сборке 4
