USE OF THE OSCILLATOR:
The oscillator is fitted with a switch having 4 positions, namely positions 01
23 with the following functions:
0: Stop
1: Low speed
2: Medium speed
3: High speed
SWIVEL:
The oscillator is fitted with a knob next to the switch with which you can swivel
the oscillator. Push in the knob to let the oscillator swivel. Pull the knob out
when you want to stop the swiveling.
Place tilted:
You can tilt the oscillator in several directions: a serration with a spring keeps
the oscillator in the desired position.
CLEANING:
1. Unplug the oscillator before you clean it.
2. Do not use abrasive agents or acid.
3. Clean the oscillator with a cotton cloth.
SPECIFICATION
Power requirement 220230 V ~ 50 Hz
Max. power 25 W
Bladediameter 12” (30 cm.)
3 speed setting
SERVICE LIFE OF THE FAN NOT LESS THAN 5 YEARS
ENGLISH
4
РУССКИЙ
СХЕМА ВЕНТИЛЯТОРА
Vt-1914.qxd 03.12.03 14:53 Page 8
Содержание
- Модель vt 1914 1
- Desk fan 2
- Vt 1914 qxd 03 2 3 14 53 page 4 2
- Русский english 2
- Assembly 1 remove the serration nut at the end of the oscillator shaft 2 place the oscillator shaft in the whole of the base 3 screw in the serration nut and tighten it well 4 unscrew the serration nut on the axle of the oscillator by turning it clock wise 5 unscrew the connection screw of the rear grill by turning it counterclock wise 6 place the rear grill in front of the motor in the intended spaces 7 attach the grill with the help of the serration nut 8 place the wheel with the blades on the axle of the motor 9 attach this one with the cap nut by turning it counter clockwise 10 attach the front grill to the rear grill by means of the clamps and the safe ty screw 3
- Connecting nut for the rear grill 8 wheel with the blades 9 connecting nut for the wheel with the blade 10 front grill 11 clamps 12 grill nut 3

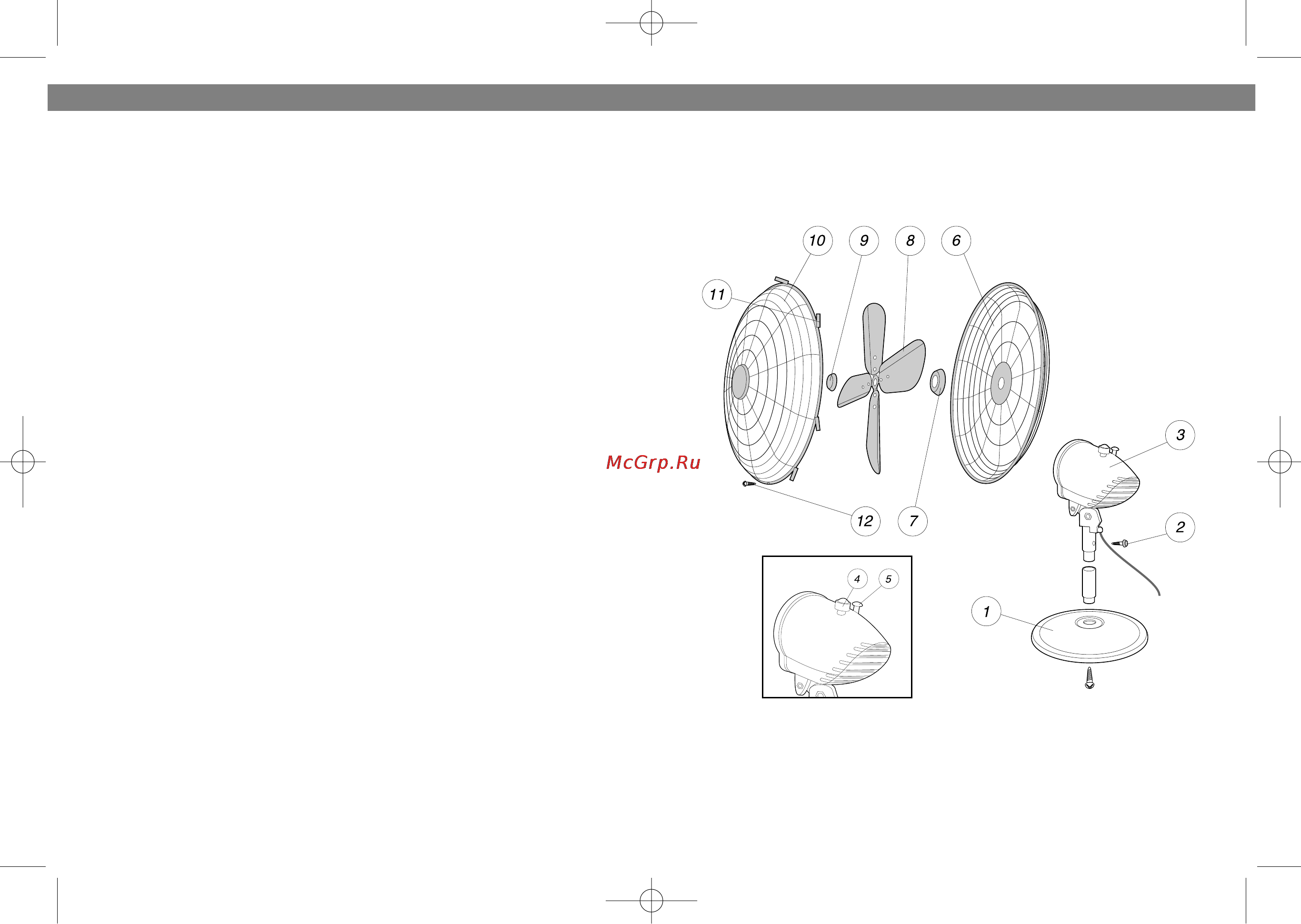

- Description of parts 1 base 2 oscillator shaft 3 motor 4 switch 0 1 2 3 5 swivel knob 6 rear grill 3
- English 3
- Instructions for safe use 1 before you put the plug in the socket please check if the voltage men tioned on the oscillator matches the voltage of your electricity 2 never stick your fingers pencils or other objects through the grill of the oscillator when it is turned on 3 unplug the oscillator when you move it somewhere else 4 unplug the oscillator when you remove the grill to clean it 5 check if the oscillator is put in a sturdy place to prevent it from falling over 6 do not expose the oscillator to rain jets of water or moisture 7 finally before each use check if the power supply cable is damaged 8 if the lead is damaged it should be replaced by an expert 3
- Vt 1914 qxd 03 2 3 14 53 page 6 3
- Русский 3
- English 4
- Русский 4
