Fr-7
Français

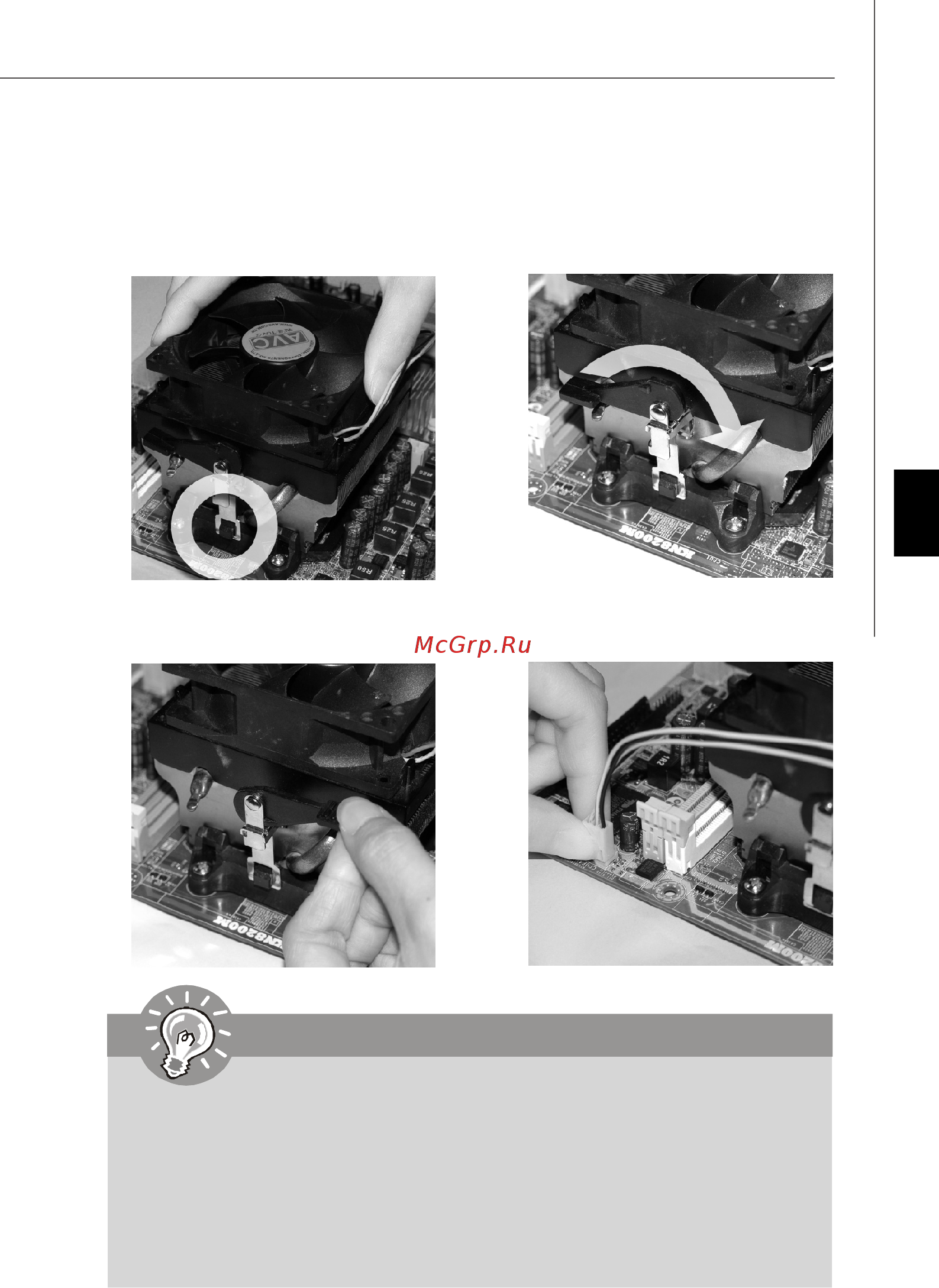

6. Puis appuyez sur l’autre côté du clip
pour fixer l’ensemble du ventilateur
sur le mécanisme de rétention.
Localisez le levier de fixe et lvez-le.
5.Déposez l’ensemble du ventilateur
sur le mécanisme de rétention.
Accrochez un côté du clip d’abord.
7.Fixez le levier.
8.Attachez le câble du ventilateur de
CPU au connecteur sur la carte
mère.
1.Les photos de la carte mère montrées dans cette partie ne sont que pour
une démonstration de l’installation du ventilateur pour Socket AM2+ CPUs.
L’apparence de votre carte mère peut varier selon le modèle que vous
achetez.
2.Quand vous déconnectez le Crochet de Sécurité du verrou fixé, il faut
garder un oeil sur vos doigts, parce qu’une fois le Crochet de Sécurité est
déconnecté du verrou fixé, le levier fixé jaillira immédiatement.
Important
