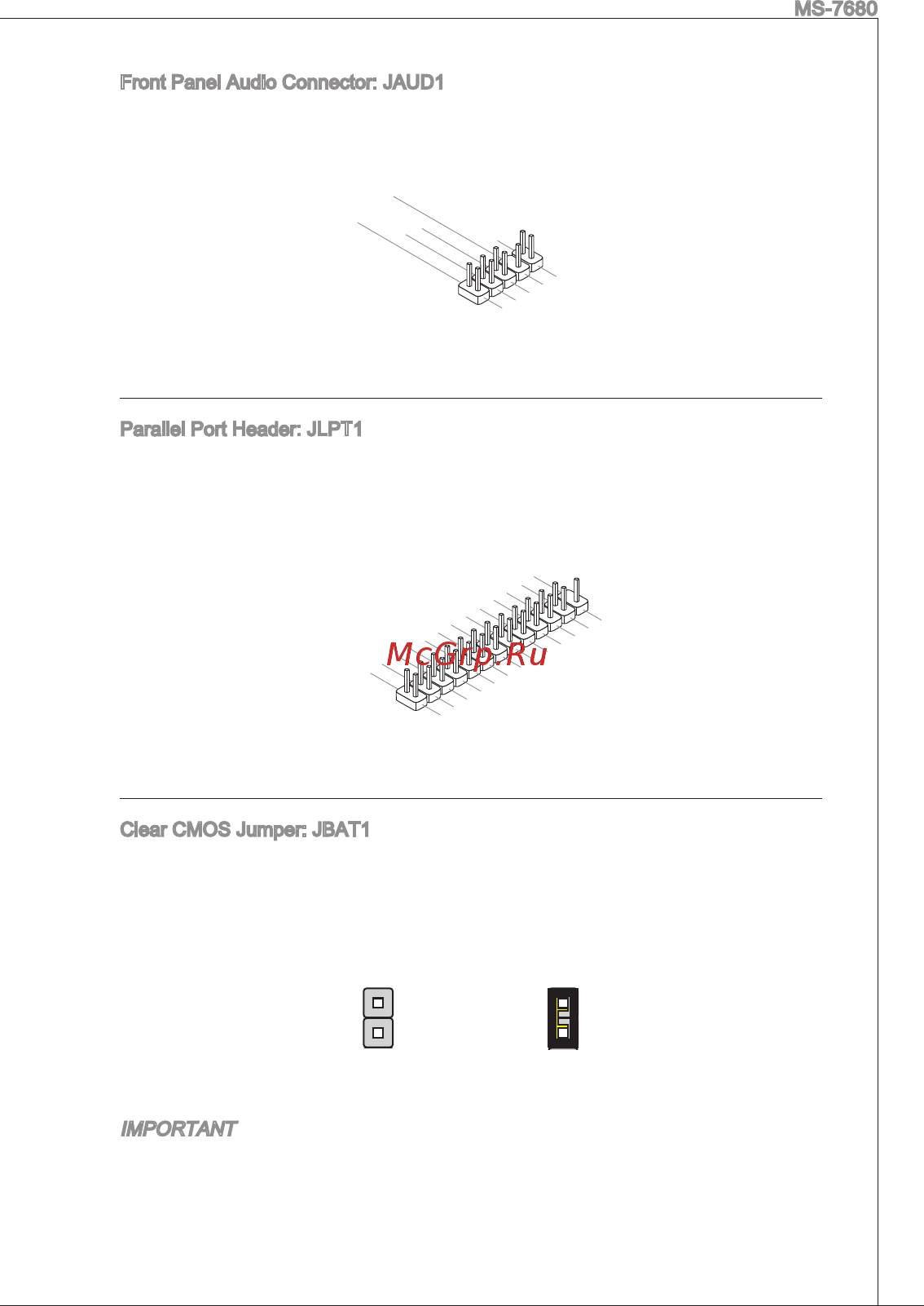

MS 7680 Front Panel Audio Connector JAUD1 This connector allows you to connect the front panel audio and is compliant with InteF Front Panel I O Connectivity Design Guide Parallel Port Header JLPT1 This connector is used to connect an optional parallel port bracket The parallel port is a standard printer port that supports Enhanced Parallel Port EPP and Extended Capabilities Parallel Port ECP mode Clear CMOS Jumper JBAT1 There is a CMOS RAM on board with an external battery power supply to preserve the system configuration data With theCMOS RAM the system can automatically boot OS every time it is turned on If you want to clear the system configuration please temporarily short these two pins to clear data by using a metal object I B Keep Data Clear Data IMPORTANT You can dear CMOS by touching two pins once with a metal object while the system is off Avoid clearing the CMOS while the system is on it will damags the mainboard 21
