Blaupunkt MILANO MP26 [33/36] No connection 1 speaker out rr 2 radio mute 2 speaker out rr 3 sub out 3 speaker out rf 4 permanent 12v 4 speaker out rf 5 aut antenna 5 speaker out lf 6 illumination 6 s...

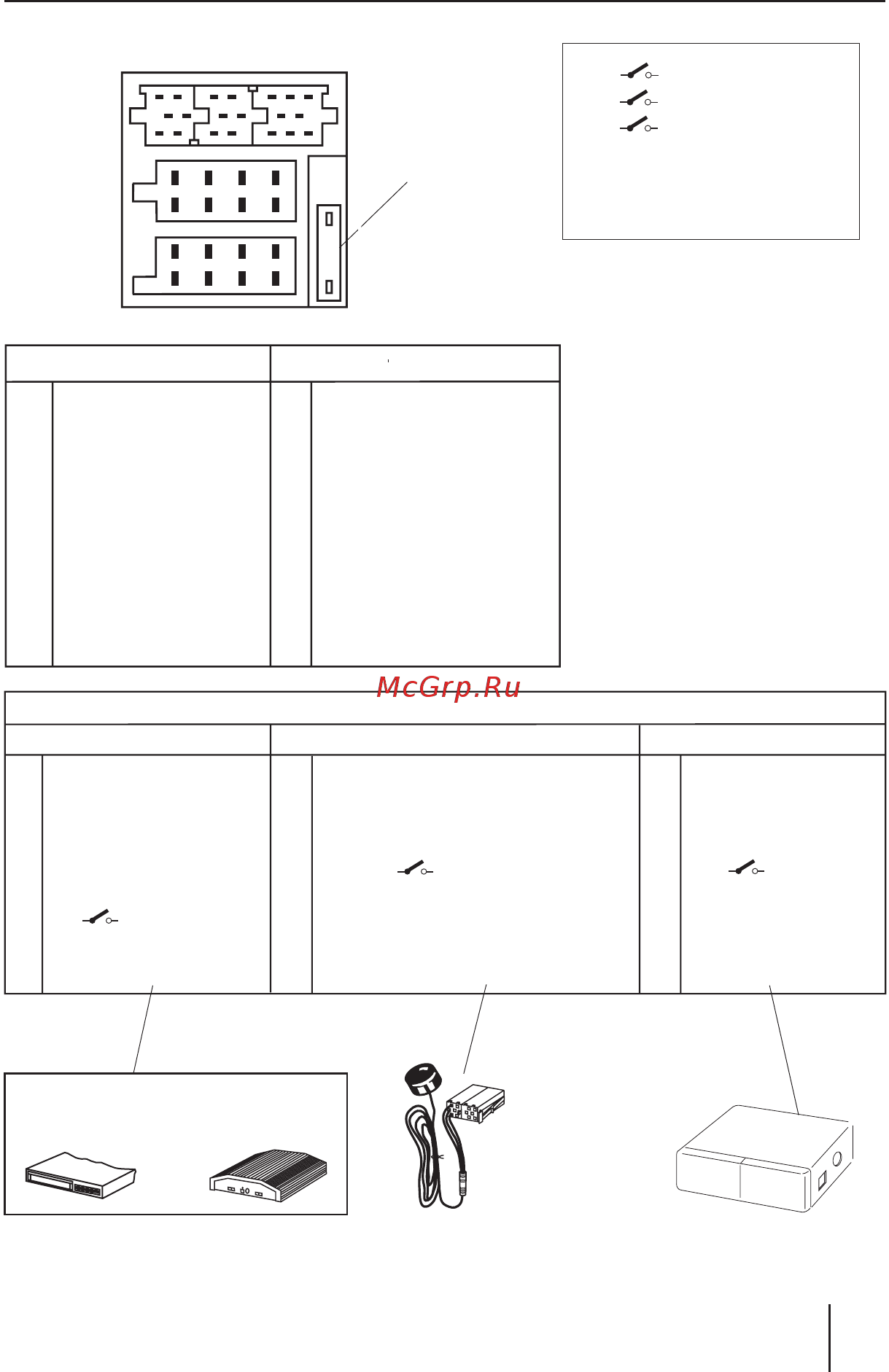

C1 C2 C3

1 Line Out LR 7 Telefon NF in + 13 CDC-Data - In

2 Line Out RR 8 Telefon NF in - 14 CDC-Data - Out

3 Line Out / Ground 9 Radio Mute 15 Permanent +12V

4 Line Out LF 10 RC +12V 16 +12V

5 Line Out RF 11 Remote Control 17 Bus / GND

6 +12V Amplifier 12 RC - GND 18 AF / GND

19 CDC Line In - L

20 CDC Line In - R

Эквалайзер усилитель

CD-чейнджер

10 ампер

300 мА

Сумма

Aut. antenna

FB +12V / RC +12V

+12V Amplifier

Опция

(Детектор для ДУ)

1 No connection 1 Speaker out RR+

2 Radio Mute 2 Speaker out RR-

3 Sub-out 3 Speaker out RF+

4 Permanent +12V 4 Speaker out RF-

5 Aut. antenna 5 Speaker out LF+

6 Illumination 6 Speaker out LF-

7 Kl.15/Ignition 7 Speaker out LR+

8 Masse/GND 8 Speaker out LR-

10 13

14 17

C-1 C-2 C-3

Инструкция по установке
