The port rate of the signal lightning arrester should match the rate of the desired

■

port on the device. If it is not matched, this signal lighting arrester will not work.

Purchase a standard lightning arrester.

Install signal lightning arrester near the protected device and connect it to the

■

ground via a shorter ground cable.

Ethernet CableEquipotential Bonding CableGrounding T e rminal

Signal Lightning Arrester Device

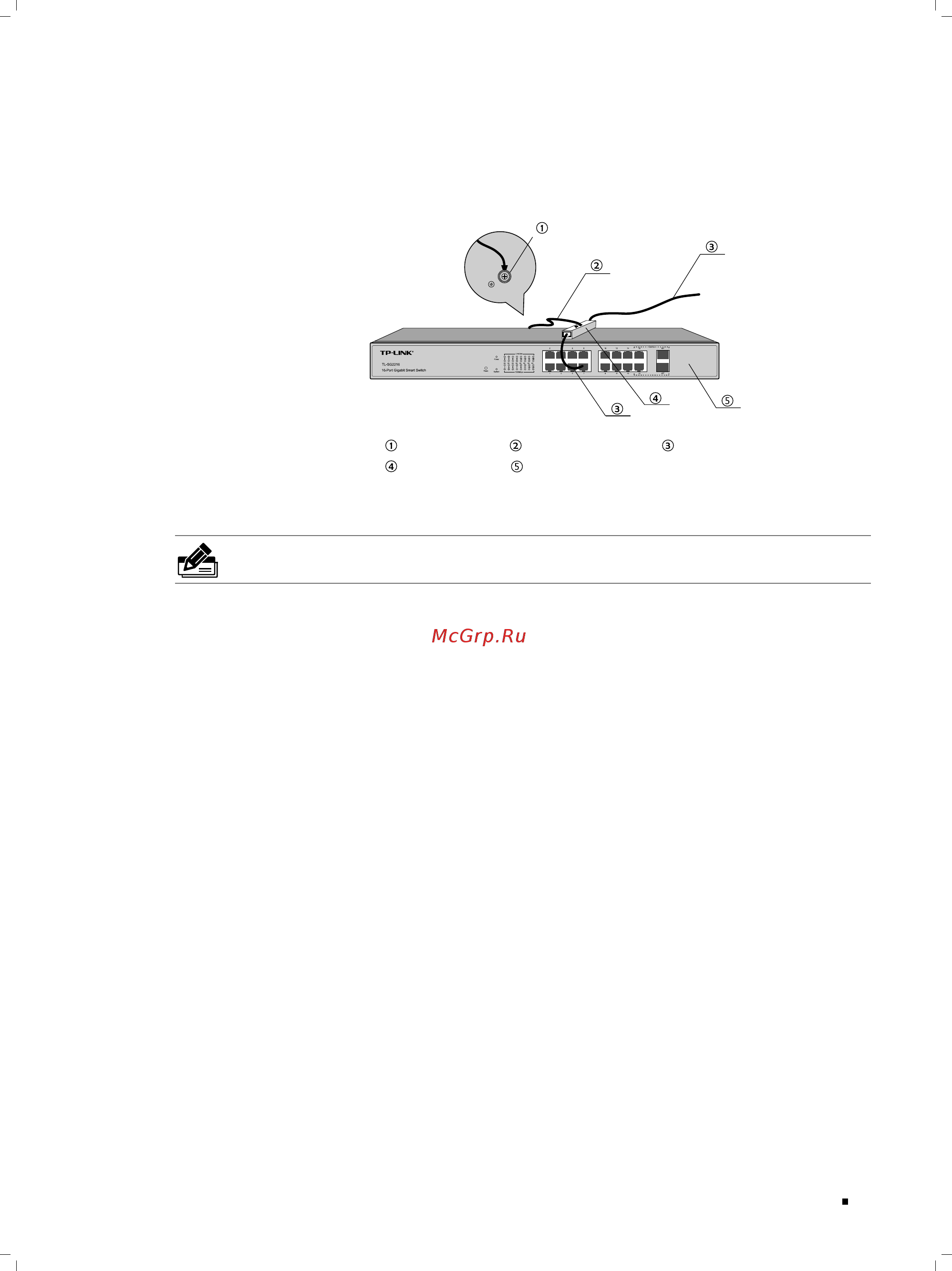

Lighting Arrester ConnectionFigure 3-4

Note: Signal lightning arrester is not provided with our product. If needed, please self

purchase it.
