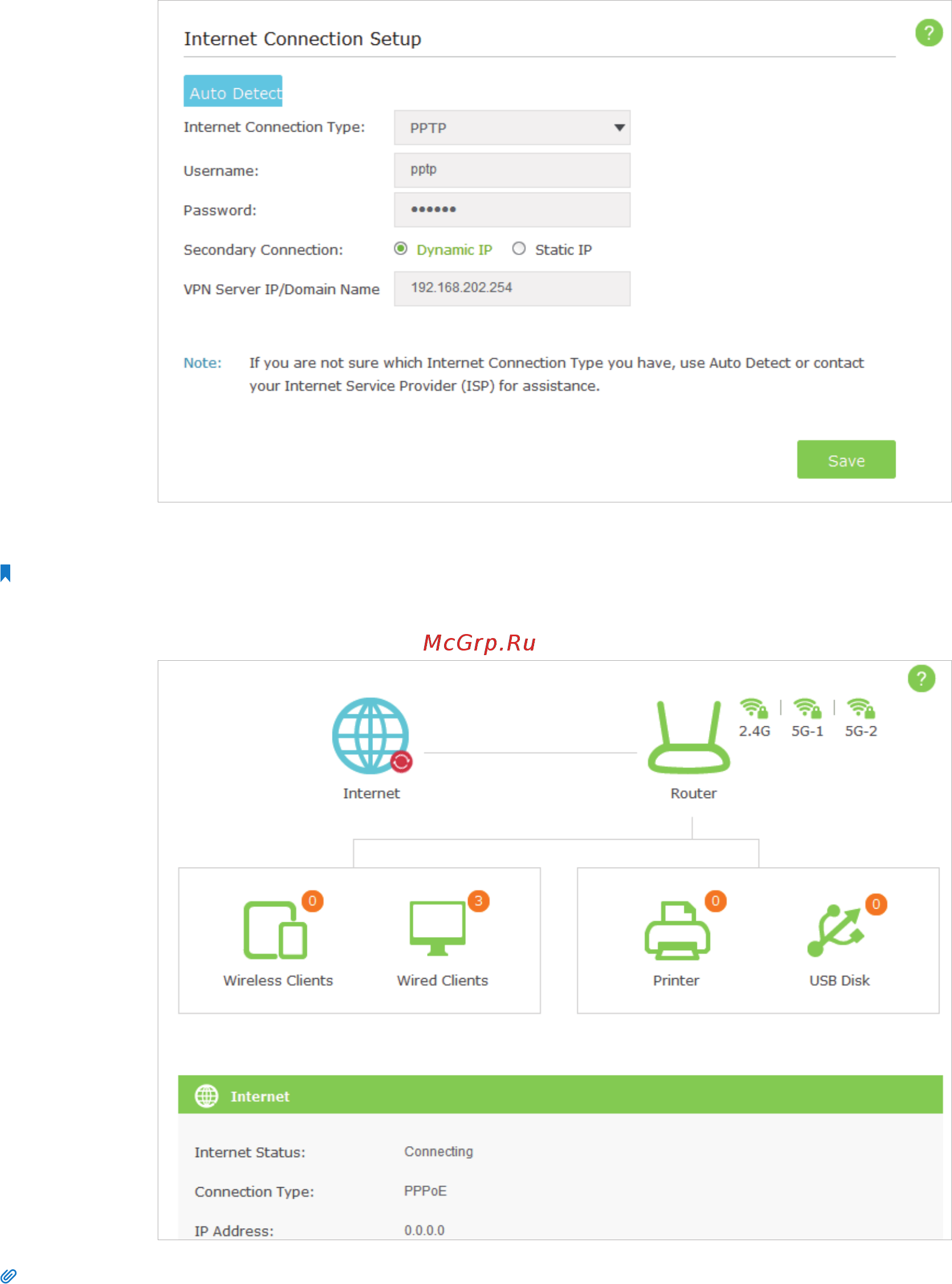

![Tp-Link Archer C3200 [18/83] Setting up an ipv6 internet connection](/views2/1210271/page18/bg12.png)
Chapter 4 . Set Up Internet Connection 15
5. Click Save to make the settings take effect. To check your Internet connection, click Network Map on the left of the page.
Note:
It may take 1-2 minutes to make the settings valid.
6. After the connection succeeds, the screen will display as follows. Here we take PPPoE as an example.
Tips:
1. If you use Dynamic IP and PPPoE and you are provided any other parameters that are not required on the page, please go to Advanced
> Network > Internet to complete the configuration.
2. If you still cannot connect to the Internet, refer to Appendix B: FAQ for further instructions.
4. 3. Setting Up an IPv6 Internet Connection
In this part, you can set up an IPv6 Internet connection if your ISP supports it and has provided related parameters.
