Tp-Link Archer C20 [23/144] Quick installation guide

Archer C20

AC750 Wireless Dual Band Router

- 11 -

3.2 Quick Installation Guide

With a Web-based utility, it is easy to configure and manage the AC750 Wireless Dual Band

Router. The Web-based utility can be used on any Windows, Macintosh or UNIX OS with a Web

browser, such as Microsoft Internet Explorer, Mozilla Firefox or Apple Safari.

1. To access the configuration utility, open a web-browser and type in the default domain name

http://tplinkwifi.net in the address field.

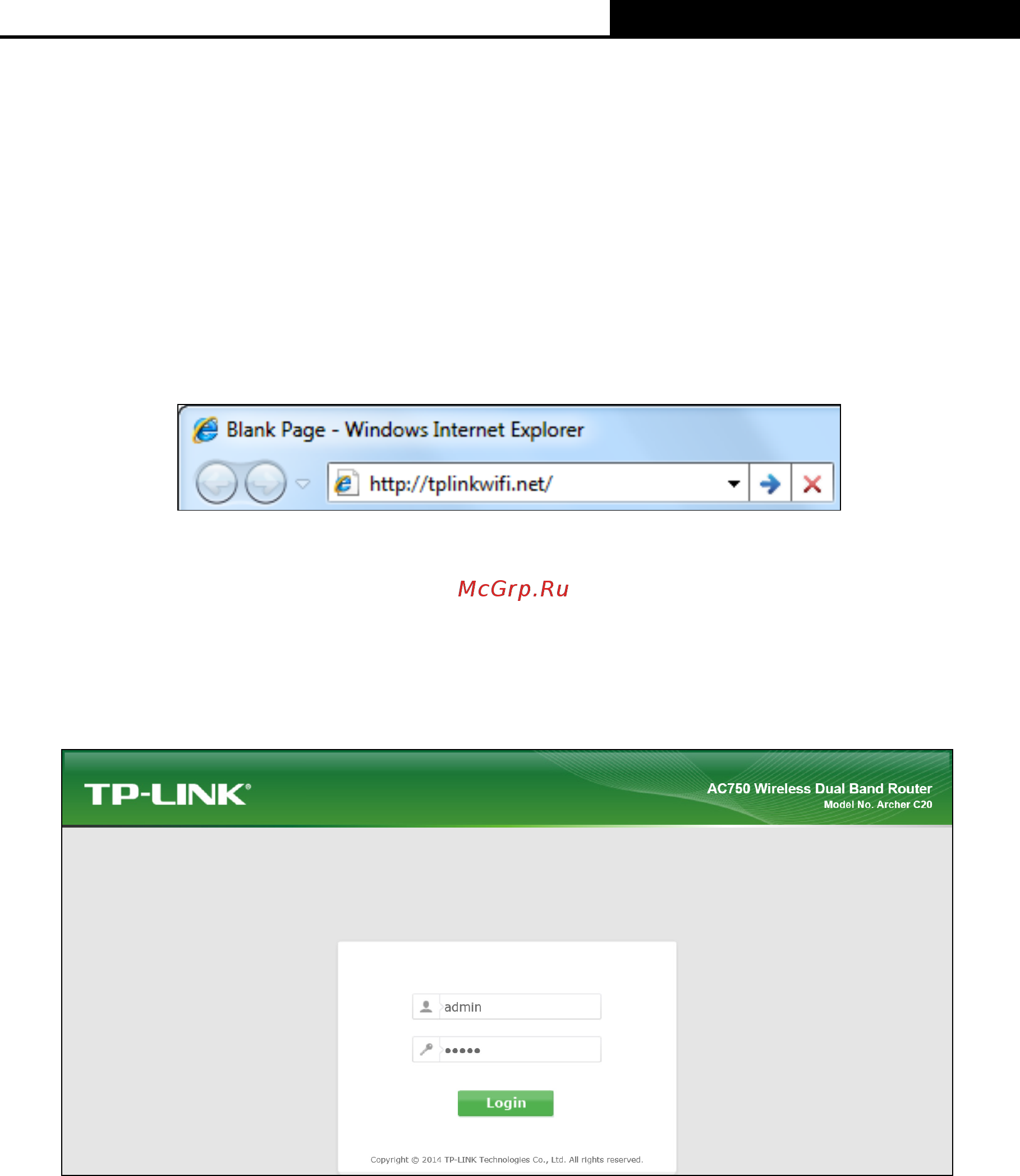

Figure 3-3 Log in the router

After a moment, a login window will appear, similar to Figure 3-4. Enter admin for the User

Name and Password, both in lower case letters. Then click the Login button or press the

Enter key.

Figure 3-4 Login Windows



Note:

If the above screen does not pop up, it means that your Web-browser has been set to a proxy.

Go to Tools menu>Internet Options>Connections>LAN Settings, in the screen that appears,

cancel the Using Proxy checkbox, and click OK to finish it.

2. After successful login, the Quick Setup page will appear for you to quickly configure your

router.
