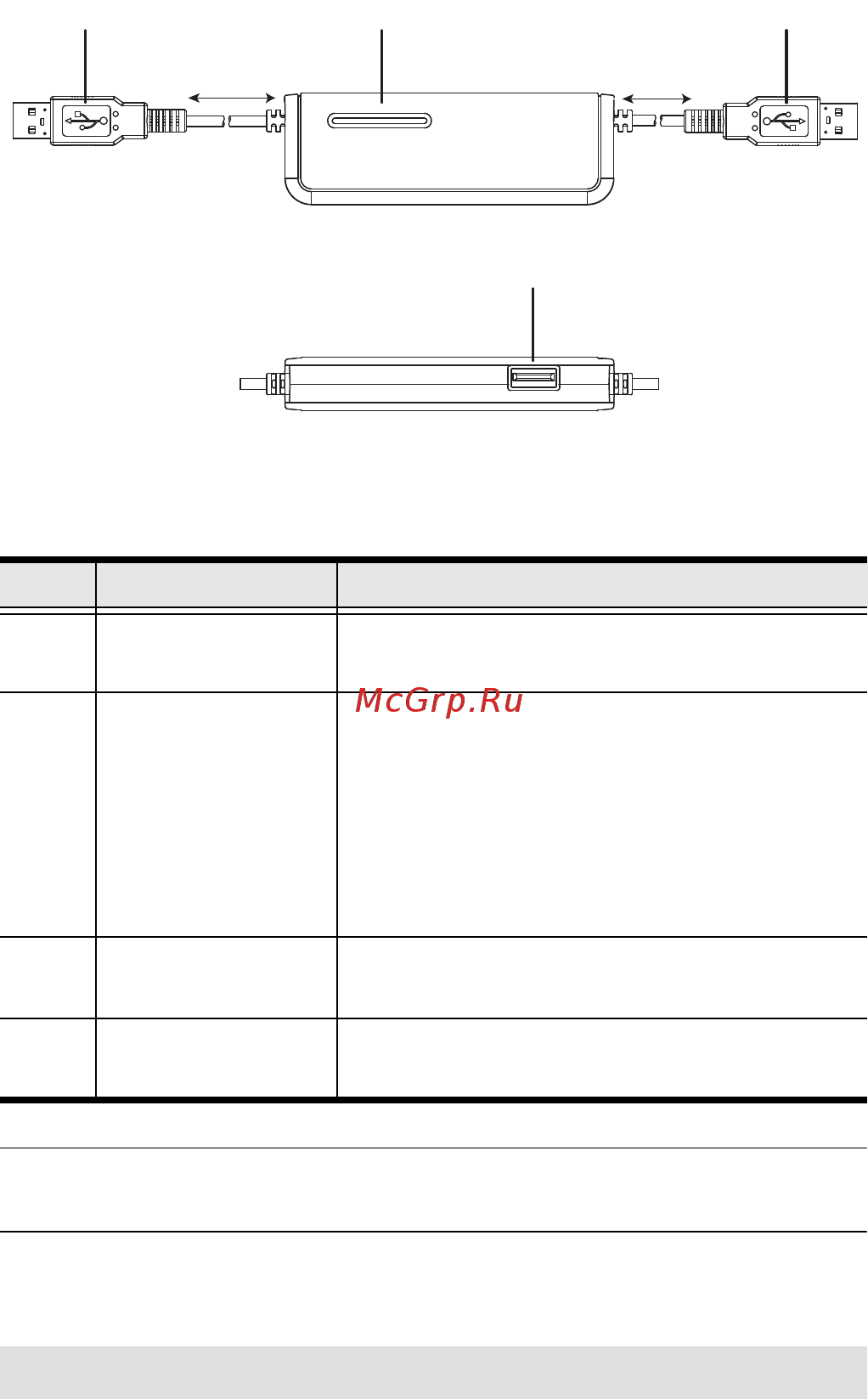

Components

Note: The USB connector with the shortest cable (0.9 m) and

the yellow connector connects to the Local computer.

No. Component Description

1 USB Connector

(Blue)

This connects to the USB port on the

Remote computer.

2 LED Display Flashes blue at a slow, steady pace when

there is a working connection between the

Local and Remote computers and the

device is idle.

Flashes blue at a fast pace when data is

being transferred between the two

computers.

3 USB Connector

(Yellow)

This connects to the USB port on the

Local computer.

4 USB 2.0

Peripheral Port

USB 2.0 peripherals (printers, scanners,

etc.) plug into this port.

0.9 m

1.8 m

Remote

(Blue)

Local

(Yellow)
