Aten CS1924 [16/51] Cs1922 rear view

CS1922 / CS1924 User Manual

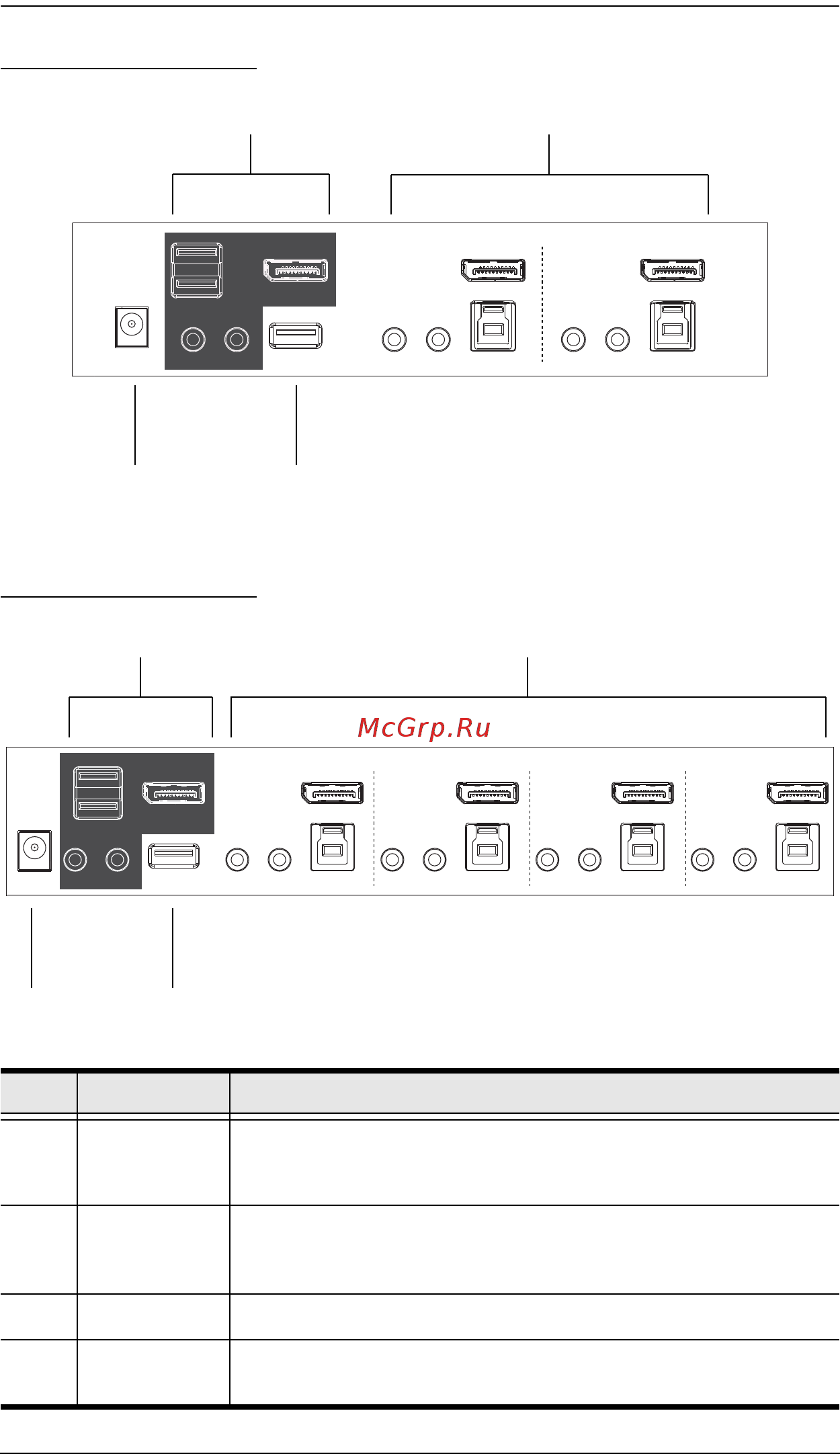

CS1922 Rear View

CS1924 Rear View

No. Component Description

1 Console Ports The cables from your DisplayPort monitor, USB keyboard, USB

mouse, speakers, and microphone plug in here. Each connector is

marked with an appropriate icon to indicate its use.

2 KVM Ports The cables that link the switch to your computers plug in here. Each

KVM port section is comprised of a microphone jack, speaker jack,

USB type B socket and a DisplayPort connector.

3 Power Jack The power adapter cable plugs into this jack.

4 USB 3.1 Gen

1 Hub

USB peripherals (printers, scanners, drives etc.) plug into this port.

USB 3.1 Gen 1 port features 5 Gbps transfer rates.

3 4
