Chapter 7. The Firmware Upgrade Utility

Performing the Upgrade

Starting the Upgrade

To upgrade your firmware:

1. Run the downloaded Firmware Upgrade Package file, either by double

clicking the file icon, or by opening a command line and keying in the full

path to it.

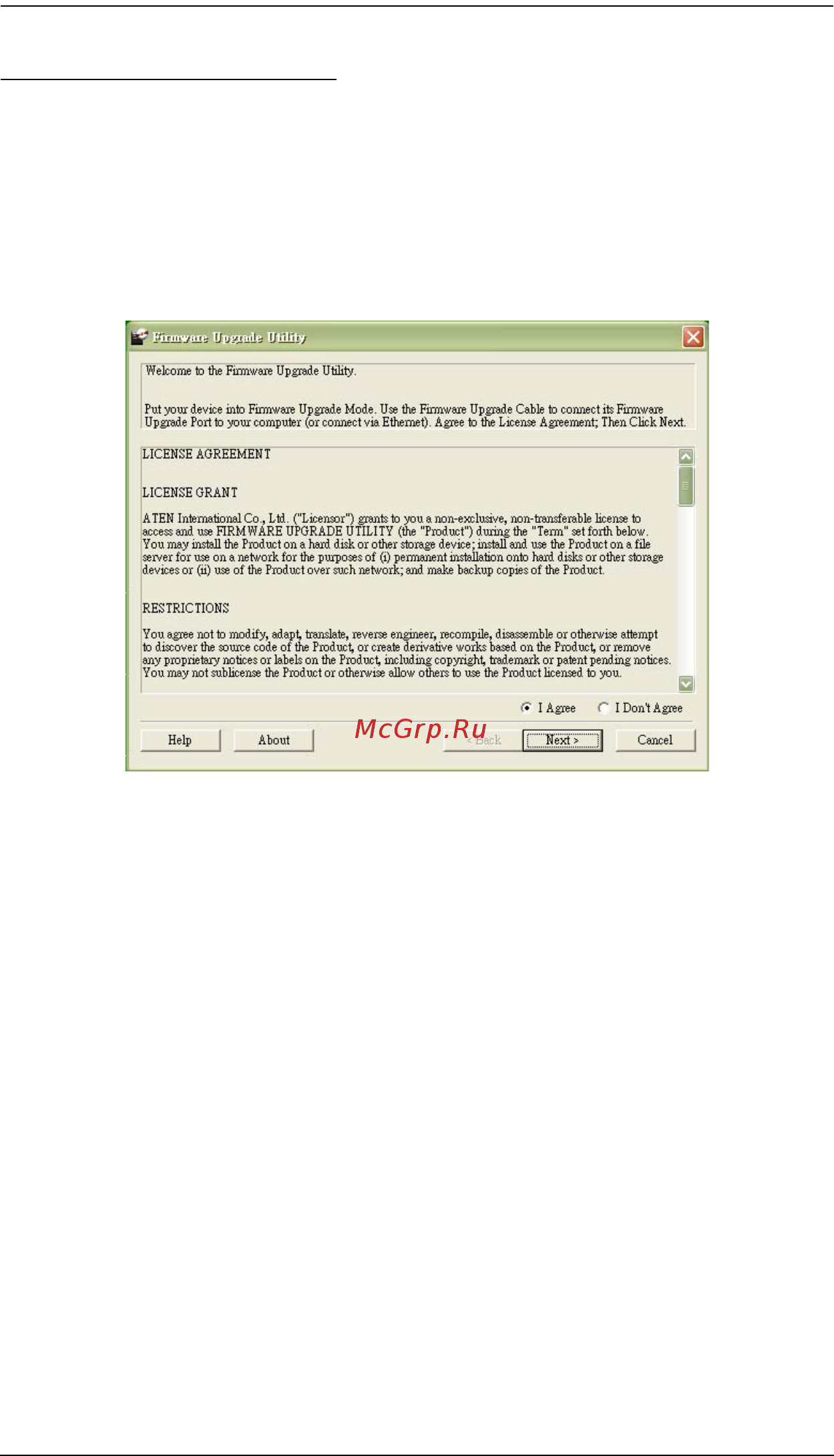

The Firmware Upgrade Utility Welcome screen appears:

2. Read and Agree to the License Agreement (enable the I Agree radio

button).

(Continues on next page.)
