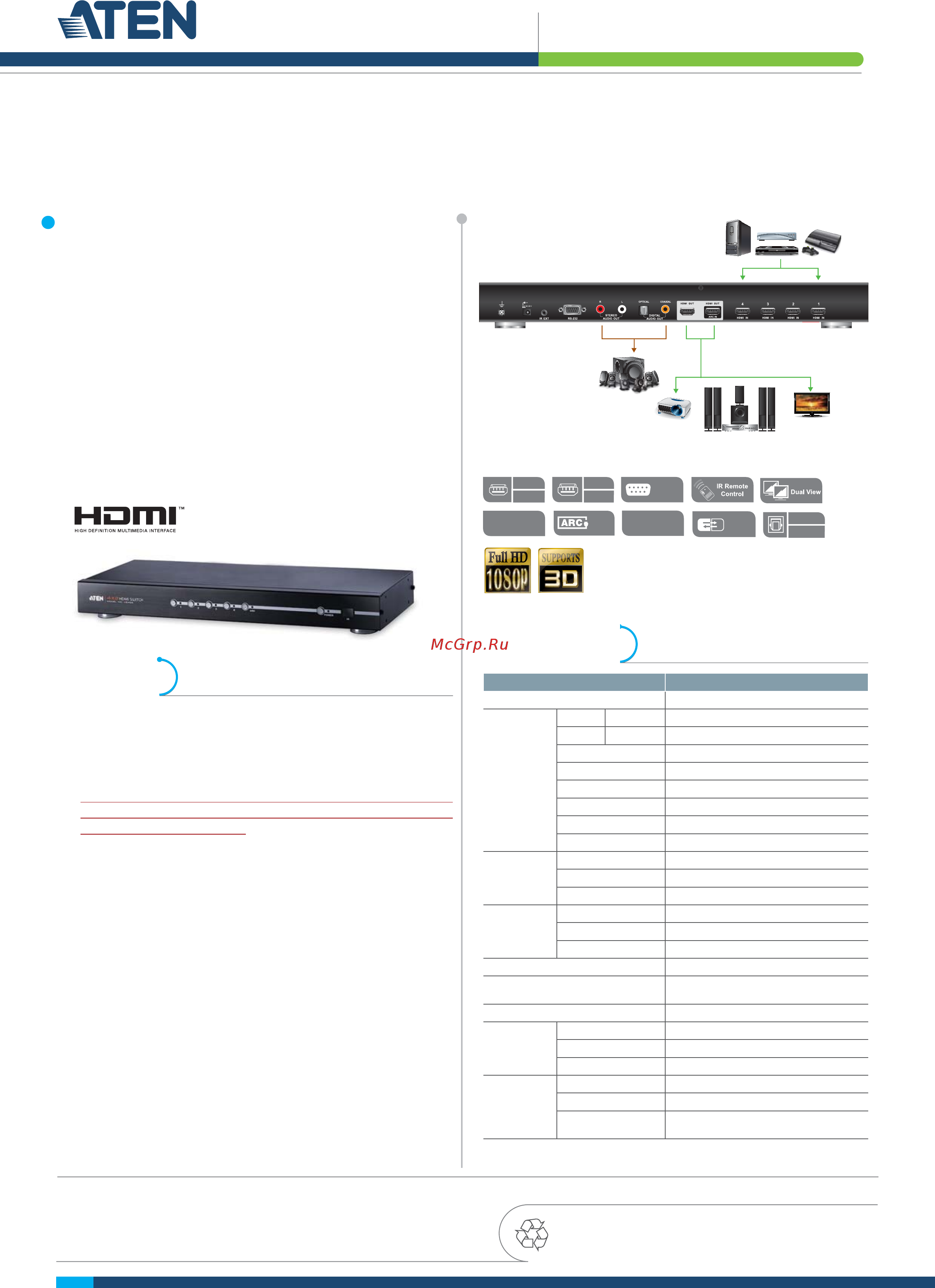

VS482

4-Port Dual View HDMI Switch

Speciﬁ cation

Features

With more and more HDMI devices entering the Home Theater

market, the need for simultaneous access to different HDMI A/

V sources is becoming increasingly important. Now, the VS482

4- Port Dual View HDMI Switch offers an easy and affordable

way to add HDMI capabilities to your home theater system by

allowing you to switch easily between up to four HDMI A/V

sources that are connected to up to two HDMI displays.

The VS482 supports four HDMI video input sources and two

HDMI output displays. It is designed for two HDTV or audio/

video receiver (AVR) applications. The VS482 complies with

HDMI standards, and is designed to support 3D content, as well

as Audio Return Channel (ARC) function. The VS482 also offers

instant switching and has OSD display controls for video, audio,

system conﬁ guration and information.

• Allows up to four HDMI A/V sources to be connected to two

HDMI displays

• HDCP compatible

• HDMI (3D, Audio Return Channel and Deep Color)

• Supports Dolby True HD and DTS HD Master Audio

• Audio Return Channel (ARC) function – connect an HDMI

cable to the ARC port to send audio from your source device

to your audio/video receiver

• OSD for system conﬁ guration setting and information display

• Instant switching between HDMI input sources via front panel

pushbuttons or through the RS-232 serial control port

• Feature EDID Expert technology to set up different

conﬁ gurations via different EDID mode

• Allows users to view the HDMI input source port / device for

easy selection

• Supports superior video quality – HDTV resolutions of 480p,

720p, 1080i, 1080p (1920x1080); up to WUXGA (1920 x

1200)

• Support multi-channel audio 2/5.1/ 7.1

• Built-in bi-directional RS-232 serial control port for high-end

system control*

• Extra audio from HDMI input signal that supports both optical

and coaxial digital audio and one stereo audio output

• IR control signal extension – extend the reach of the IR

controller by adding an IR receiver unit

• Rack mountable

Note:

The VS482 AP and GUI operation instructions can be

the ATEN website (www.aten.com)

RS-232

HDMI

A/V In

A/V Out

HDMI

Audio

Return

Channel

EDID

OSD

Instant

Switch

Digital Audio

Toslink

or or

Multi-channel Audio

Function

VS482

Display Connections

Connectors

Device HDMI In 4 x HDMI Type A Female (Black)

Display HDMI Out 2 x HDMI Type A Female (Black)

Optical Audio 1 x Toslink (Black)

Coaxial Audio 1 x RCA (Orange)

Stereo Audio 2 x RCA (Red / White)

RS-232 Port 1 x DB-9 Female (Black)

Power 1 x DC Jack

IR Extension Port 1 x 3.5mm phone jack

Switches

Port Switch 4

ARC Selection 1

Power Button 1

LEDs

Selected 4 (Green)

ARC Selected 1 (Blue)

Power 1 (Green / Orange)

IR Control 1

Video

HDTV resolutions of 480p, 720p, 1080i,

1080p (1920x1080); WUXGA (1920 x 1200)

Power Consumption DC5.3V, 6.95W

Environment

Operating Temp. 0–50ºC

Storage Temp. -20–60ºC

Humidity 0–80% RH, Non-condensing

Physical

Properties

Housing Metal

Weight 2.16 kg

Dimensions

(L x W x H)

43.72 x 15.86 x 4.40 cm

* Product speciﬁ cations and appearance are subject to change without notice.
