English

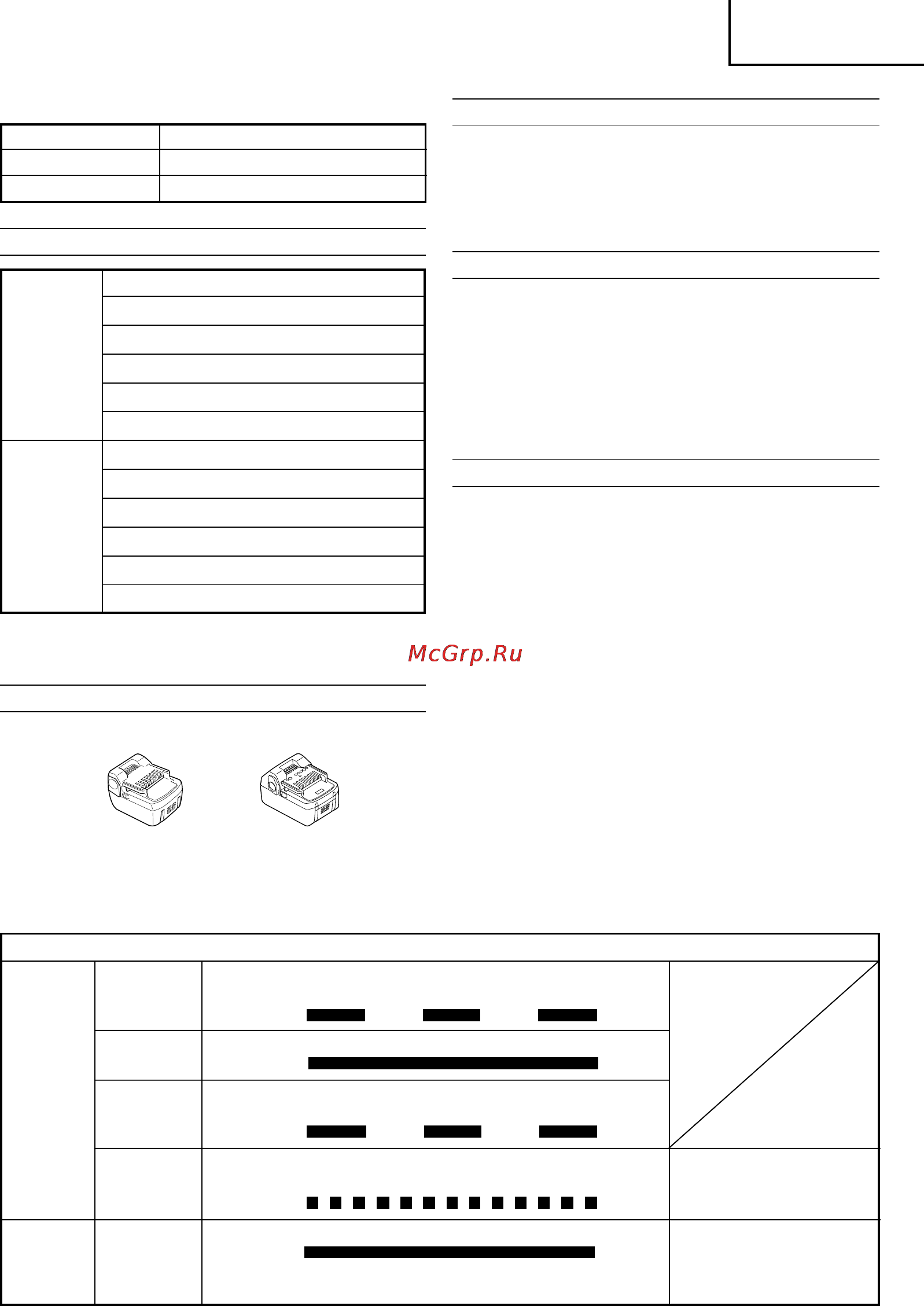

10
CHARGER
STANDARD ACCESSORIES
Standard accessories are subject to change without
notice.
OPTIONAL ACCESSORIES (sold separately)
Battery
(BSL1430) (BSL1830)
Optional accessories are subject to change without notice.
Model UC18YRSL
Charging voltage 14.4 V – 18 V
Weight 0.6 kg
1 Plus driver bit (No. 2) ................... 1
2 Charger (UC18YRSL) ....................... 1
DV18DBL
3 Battery (BSL1830) ............................ 2
4 Plastic case ....................................... 1
5 Battery cover .................................... 1
6 Side handle ....................................... 1
1 Plus driver bit (No. 2) ................... 1
2 Charger (UC18YRSL) ....................... 1
DV14DBL
3 Battery (BSL1430) ............................ 2
4 Plastic case ....................................... 1
5 Battery cover .................................... 1
6 Side handle ....................................... 1
APPLICATIONS
Drilling of brick and concrete block, etc.
Driving and removing of machine screws, wood
screws, tapping screws, etc.
Drilling of various metals
Drilling of various woods
BATTERY REMOVAL/INSTALLATION
1. Battery removal
Hold the handle tightly and push the battery latch to
remove the battery (See Fig. 2).
CAUTION:
Never short-circuit the battery.
2. Battery installation
Insert the battery while observing its polarities (See
Fig. 2).
CHARGING
Before using the driver drill, charge the battery as follows.
1. Connect the charger’s power cord to a receptacle.
When the power cord is connected, the charger’s
pilot lamp will blink in red. (At 1-second intervals)
2. Insert the battery into the charger.
Firmly insert the battery into the charger until the line
is visible, as shown in Fig. 3, 4.
3. Charging
When inserting a battery in the charger, charging will
commence and the pilot lamp will light continuously
in red.
When the battery becomes fully recharged, the pilot
lamp will blink in red. (At 1-second intervals) (See
Table 1)
(1) Pilot lamp indication
The indications of the pilot lamp will be as shown in
Table 1, according to the condition of the charger or
the rechargeable battery.
Table 1
Indications of the pilot lamp
Lights for 0.5 seconds. Does not light for 0.5
seconds. (off for 0.5 seconds)
Lights continuously
Lights for 0.5 seconds. Does not light for 0.5
seconds. (off for 0.5 seconds)
Lights for 0.1 seconds. Does not light for 0.1
seconds. (off for 0.1 seconds)
Lights continuously
Before
charging
While
charging
Charging
complete
Charging
impossible
Blinks
Lights
Blinks
Flickers
Malfunction in the
battery or the charger
Battery overheated.
Unable to charge.
(Charging will commence
when battery cools)
The pilot
lamp
lights or
blinks in
red.
Lights
The pilot
lamp
lights in
green.
Overheat
standby
01Eng_DV14DBL_EE 7/26/10, 3:46 PM10
