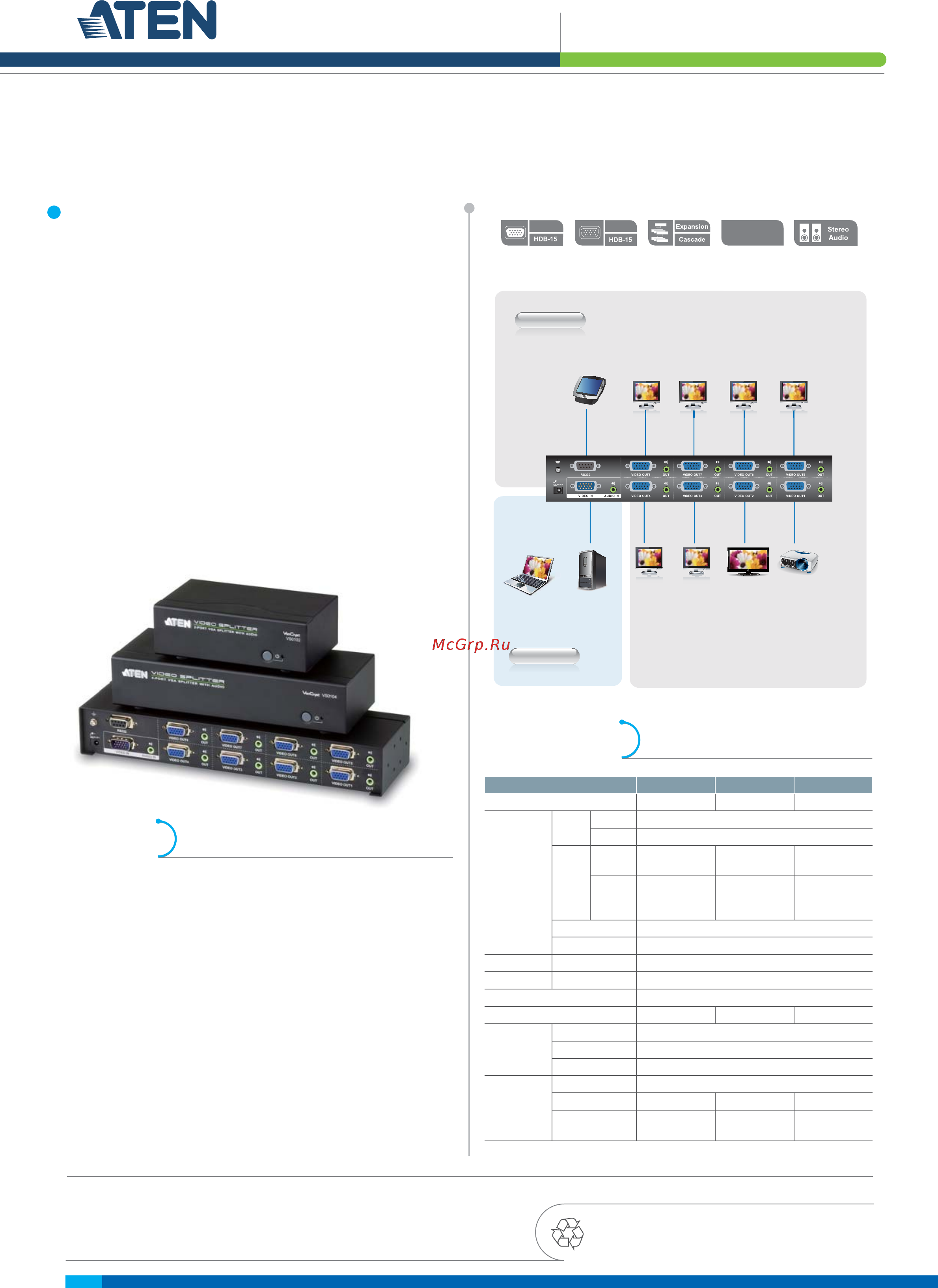

VanCryst™ Professional A/V Solutions
VS0102 / VS0104 / VS0108
2/4/8-Port VGA Splitter with Audio
Specifi cation
Features
The ATEN VS0102 / VS0104 / VS0108 2/4/8-Port VGA Splitter
with Audio are VGA splitters that allow a single VGA video
& audio signal to be distributed to two, four, or eight output
displays with independent stereo control. The splitters support
up to 450MHz video bandwidth, which provides
optimum video quality, supported by resolutions up to
1920x1440.
Furthermore, for complete systems integration, serial control is
standard through the VS0102 / VS0104 / VS0108’s built-in RS-
232 ports, which allow the splitter to be controlled through a
high-end controller or PC.
The VS0102 / VS0104 / VS0108 is perfect for conference rooms,
training facility & multi-display broadcasting, with cascadable
support up to three levels allowing a single video signal to be
sent across up to 8/64/512 video displays while sustaining the
highest quality possible.
• One video input to 2/4/8 video outputs
• Superior video quality – up to 1920 x 1440 @ 60Hz
• Supports up to 450MHz bandwidth (VS0102/VS0104),
400MHz bandwidth (VS0108) for high performance video
• Long distance transmission – up to 65m*
• Supports VGA, SVGA, UXGA, WUXGA, and multisync
• EDID Expert – selects the optimum EDID settings for smooth
power-up and highest quality display
• Expandable – provides up to 8/64/512 video displays
• Features RS-232 serial port for command controls**
• RS-232 chain control – use RS-232 commands to control
cascaded devices via VGA cable
• Supports stereo audio
• Plug-and-play – no software installation required
Note:
* Video content sent over very long distance using a VGA cable might
result in slight degradation of the video signal and quality
** The VS0102/VS0104/VS0108 AP and GUI operation instructions can be
the ATEN website (www.aten.com)
Function VS0102 VS0104 VS0108
Display Connections 2 4 8
Connectors
Input
Video 1 x HDB-15 Male (Blue)
Audio 1 x Mini Stereo Jack Female (Green)
Output
Video
2 x HDB-15
Female (Blue)
4 x HDB-15
Female (Blue)
8 x HDB-15
Female (Blue)
Audio
2 x Mini Stereo
Jack Female
(Green)
4 x Mini Stereo
Jack Female
(Green)
8 x Mini Stereo
Jack Female
(Green)
RS-232 Port 1 x DB-9 Female (Black)
Power 1 x DC Jack
Switches Power 1 x Pushbutton
LEDs Power 1 (Green / Orange)
Video 1920 x 1440 @ 60Hz
Power Consumption DC5.3V, 0.8W DC5.3V, 1.2W DC5.3V, 2.3W
Environment
Operating Temp. 0–50ºC
Storage Temp -20–60ºC
Humidity 0–80% RH, Non-condensing
Physical
Properties
Housing Metal
Weight 0.46 kg 0.68 kg 0.87 kg
Dimensions
(L x W x H)
13.00 x 7.61 x
4.40 cm
20.00 x 7.61 x
4.40 cm
26.00 x 7.61 x
4.20 cm
Video Out
Video In
EDID
mode
Output
Input
Monitor 5
Monitor 1 Monitor 2 Monitor 3 Monitor 4
Monitor 6 LCD TV Video Projector
or
Mit
o
