Aten VM0404H [10/20] Installation
![Aten VM0404H [10/20] Installation](/views2/1211677/page10/bga.png)
- 10 -
Installation

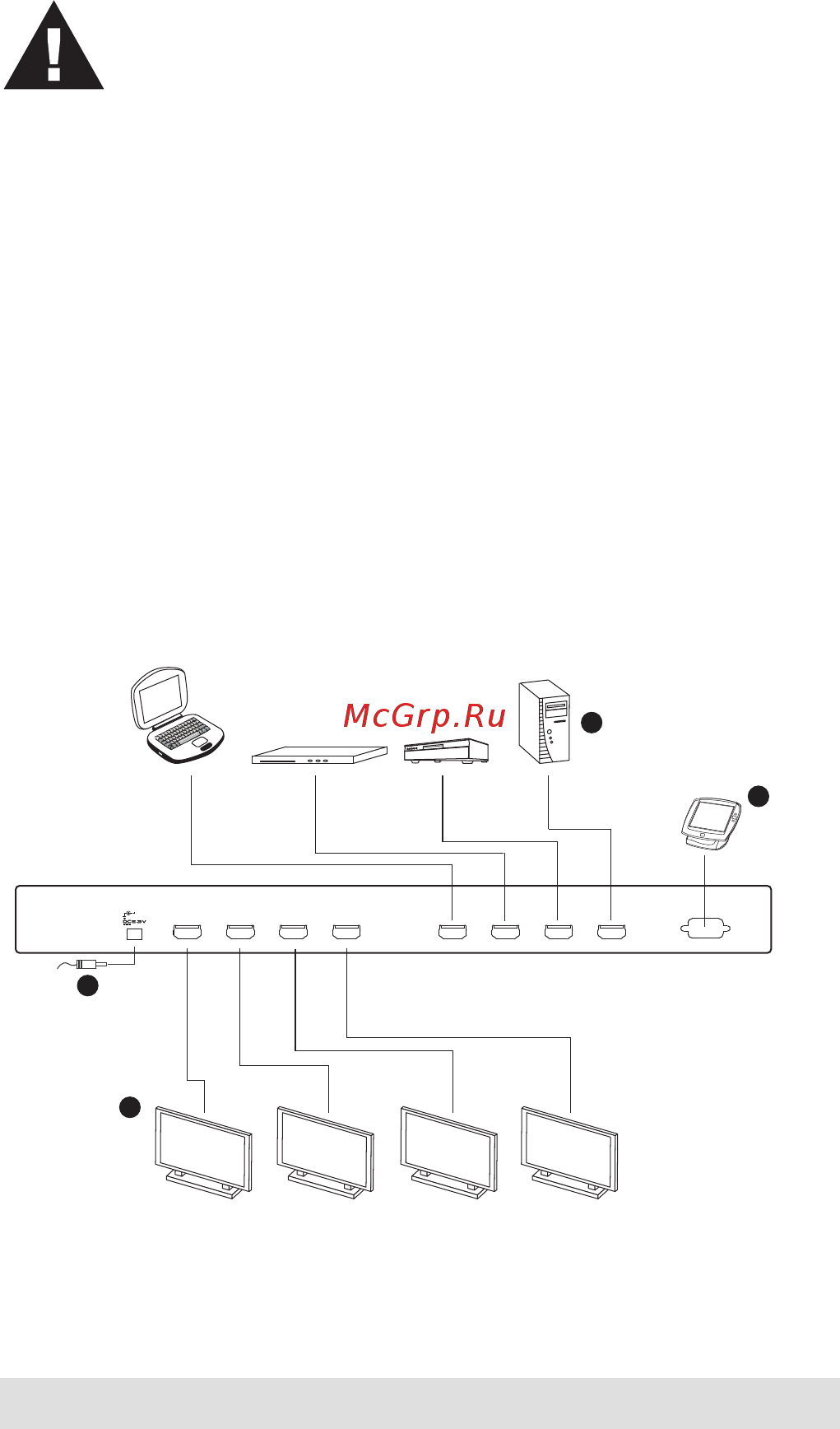

Installation of the VM0404H is simply a matter of plugging in the
appropriate cables. To install the switch, refer to the installation diagram
below as you perform the following steps:
1. Use HDMI cables to connect the HDMI In ports on the video display
devices to the HDMI Out ports on the rear panel of the VM0404H.
2. Use HDMI cables to connect the HDMI Out ports on the source
device(s) to the HDMI In ports on the VM0404H. Four HDMI In ports
are located on the rear panel of the switch.
3. Plug the provided power adapter into an appropriate AC power
source; plug the power adapter cable into the Power Jack on the
VM0404H.
4. (Optional) If you are using the serial control function (see page 11),
use an appropriate RS-232 serial cable to connect the computer or
serial controller to the VM0404H’s RS-232 Serial port.
5. You may now power on the display and source devices.
1. Make sure that the power to any device that you connect
to the installation has been turned off.
2. Make sure that all devices you will be installing are
properly grounded.
1
Hardware / Software
Controller
HDMI IN
RS-232
HDMI IN
HDMI IN HDMI IN
HDMI OUT HDMI OUT
HDMI OUT HDMI OUT
2
3
4
HDMI Source Devices
HDMI Display Devices
