Chapter 1

Z170-LIGHTSABER

USER MANUAL

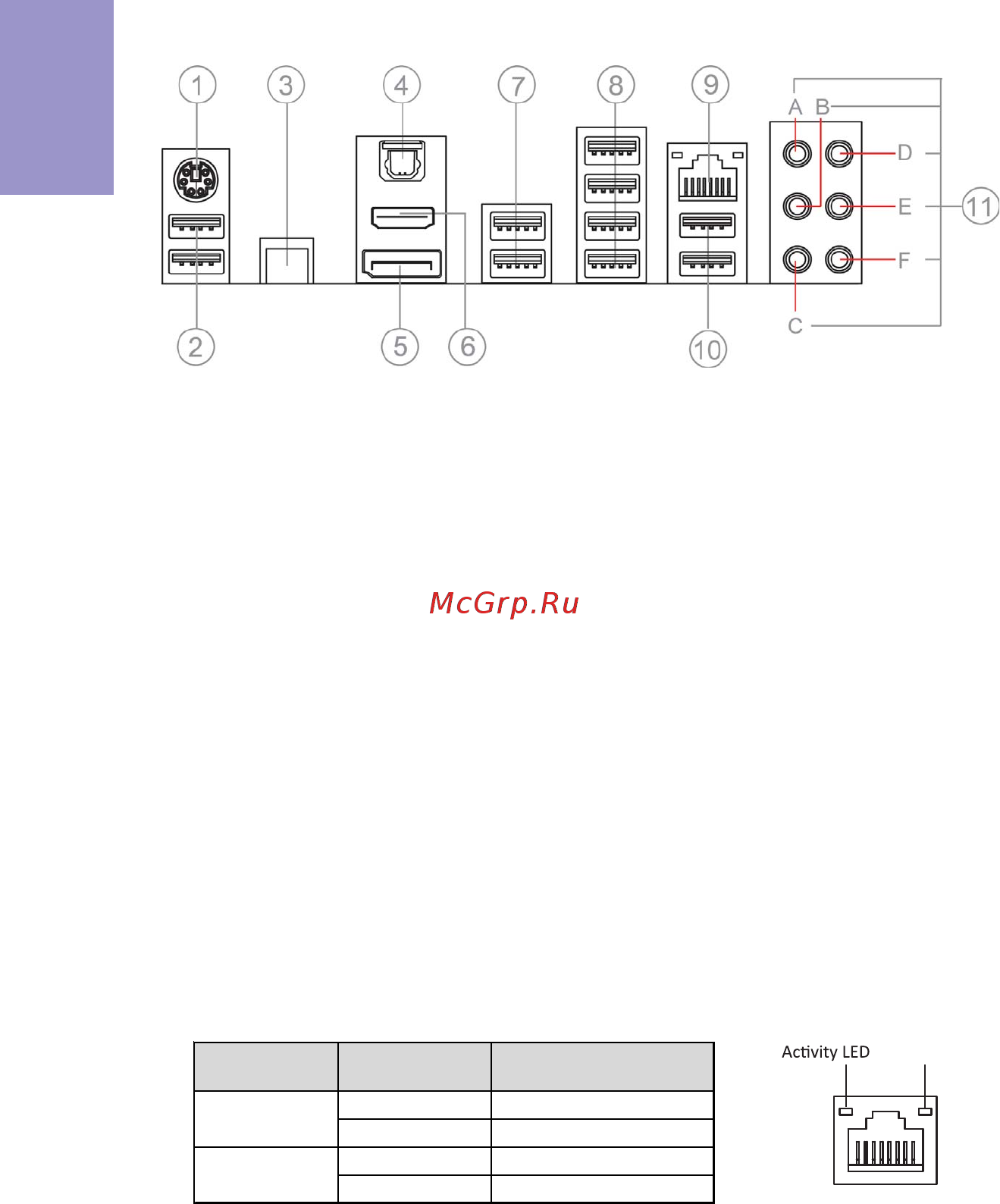

I/O Ports

1. PS/2 Keyboard & Mouse Combo connector

Use the PS/2 port to connect a PS/2 Keyboard or Mouse.

2. USB 2.0 Ports (Yellow)

This two USB 2.0 ports are only used to connect game keyboard and mouse.

3. CLR_CMOS_BTN

Use the CLR_CMOS button to clear CMOS.

4. Optical SPDIF Out port

This jack connects to external optical digital audio out devices.

5. DP Port

Connect your monitor to the DP port.

6. HDMI 1.4b Port

You can connect the display device to the HDMI 1.4b port.

7. USB 3.1 Ports

Use the USB 3.1 ports to connect USB 3.1 devices.

8. USB 3.0 Ports

Use the USB 3.0 ports to connect USB 3.0 devices.

9. LAN Port

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

10. USB 2.0 Ports (Red)

This two USB 2.0 ports are only used for rezound vigor USB 2.0 device.

LAN LED Status Description

OFF No data

Green blinking Active

OFF No link

Green Link

Activity LED

Link LED

LAN Port

11. Audio ports

Use the audio jacks to connect audio devices. The D port is for stereo line-in signal,

while the F port is for microphone in signal. This motherboard supports 8-channel

audio devices that correspond to the A, B, C and E port respectively. In addition, all

of the 3 ports, B, C and E provide users with both right & left channels individually.

Users please refer to the following note for specific port function definition.
