Chapter 2

Q87H3-M5 USER MANUAL

The front panel audio header allows the user to install auxiliary front-oriented mi-

crophone and line-out ports for easier access. This header supports HD audio by

default. If you want connect an AC’ 97 front panel audio to HD onboard headers,

please set as below picture.

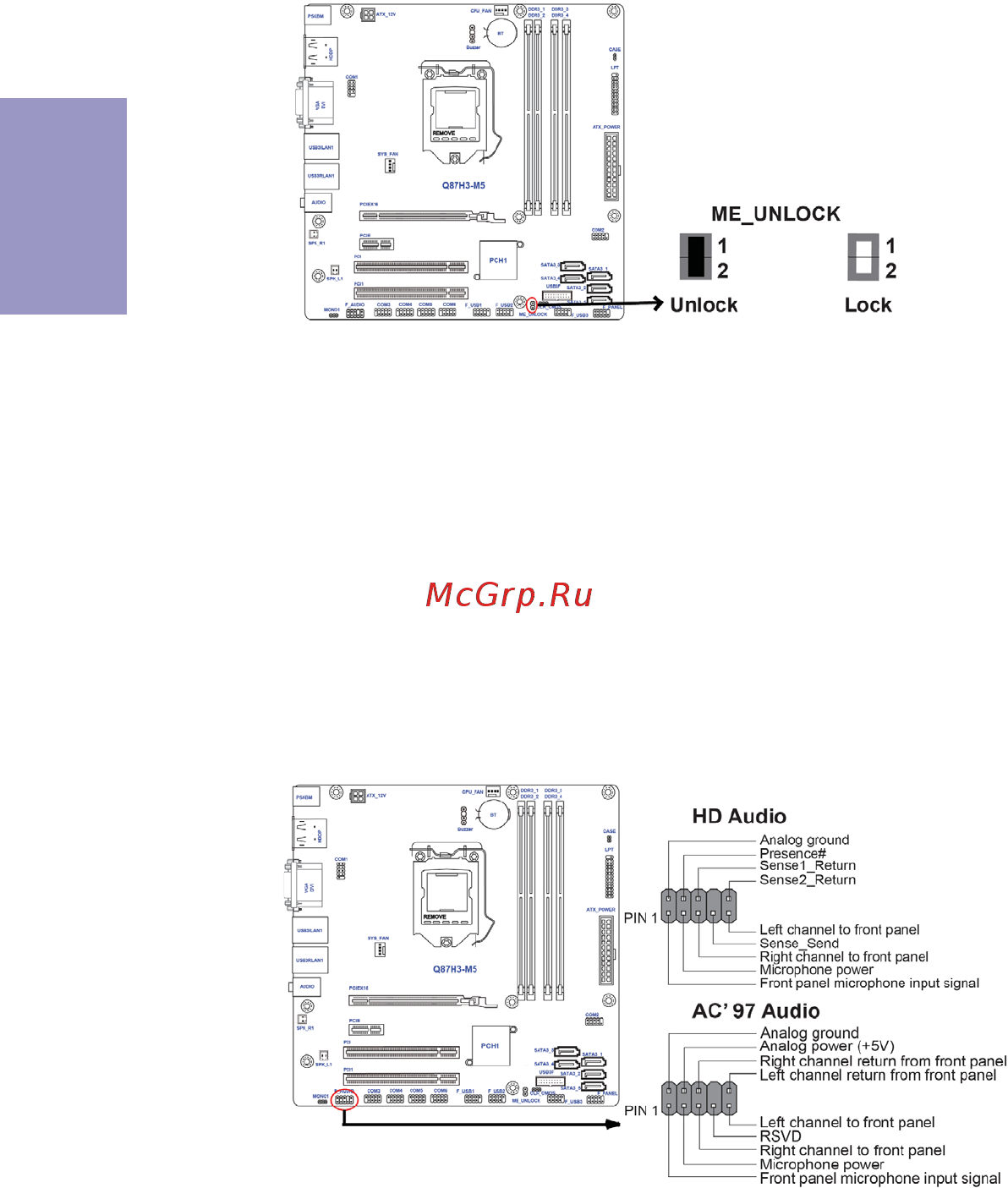

8. F_AUDIO: Front Panel Audio Header

7. ME_UNLOCK: ME Unlock Header
