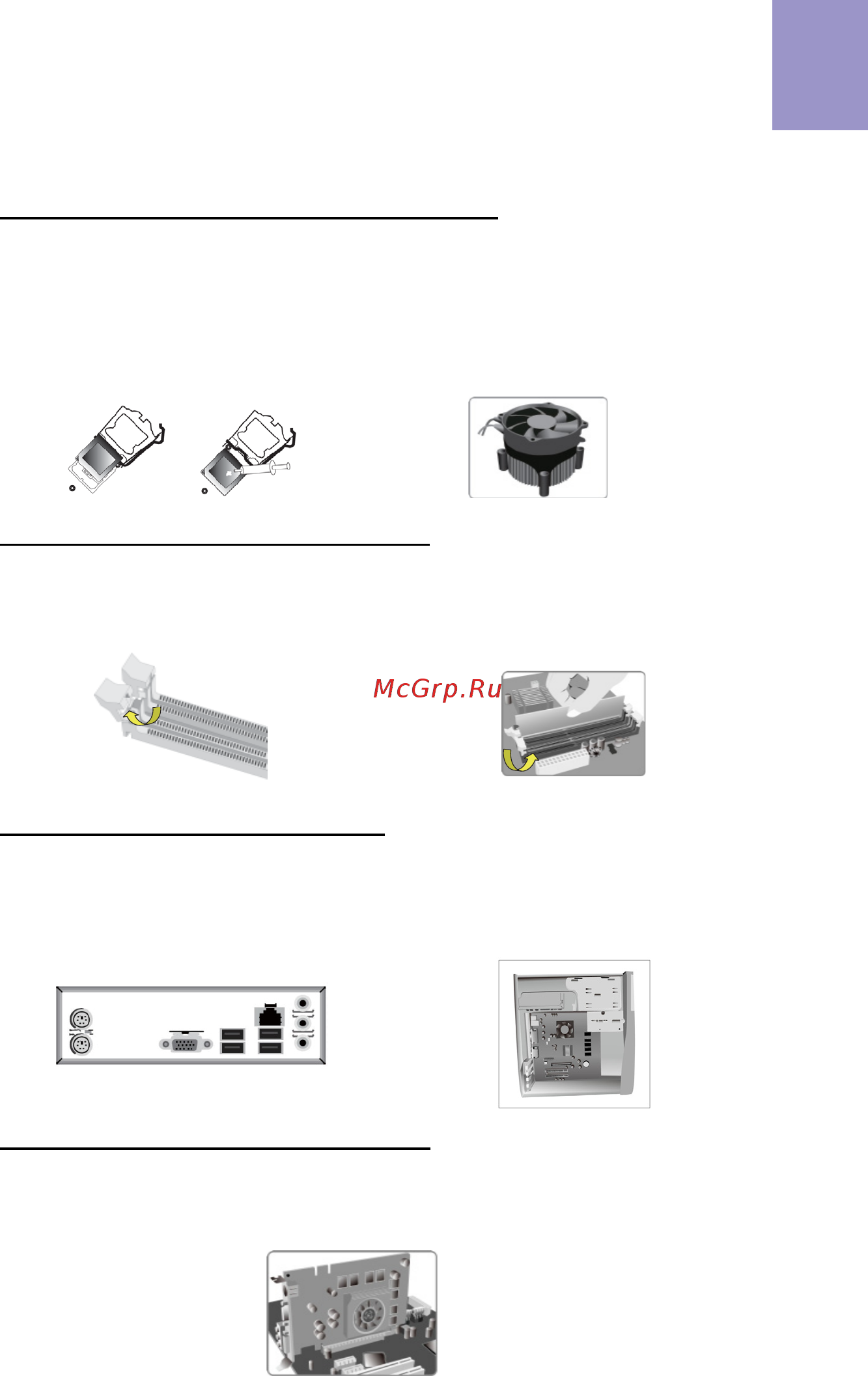

Step 1. Installation of the CPU and CPU Cooler:

Hardware Installation Guide

Installation Steps

1-1. Pull up the lever away from the

socket. Align the CPU cut edge with the

indented edge of the CPU socket.

Gently place the CPU into correct

position. Apply an even layer of thermal

grease on the surface of CPU.

Step 2. Installation of Memory Modules:

2-1. Unfasten the latches on each side

of the DIMM slots.

Step 3. Installation of Motherboard:

3-1. Replace the back I/O plate of the

case with the I/O shield provided in

motherboard’s package.

1-2. Rotate and press down the fastener

of CPU fan to the motherboard through

holes to install CPU fan into place.

2-2. Firmly press the DIMM down until it

seats correctly. Make sure the slot

latches are levered upwards and latch

on the edge of the DIMM.

3-2. Place the motherboard within the

case by positioning it into the I/O plate.

Secure the motherboard to the case

with screws.

Step 4. Installation of an Expansion card:

Remove the metal located on the slot and then insert the expansion card into the

slot. Press the card firmly to make sure it is fully inserted into its slot. And then

return the screw back to its position.
