Introducing the Motherboard

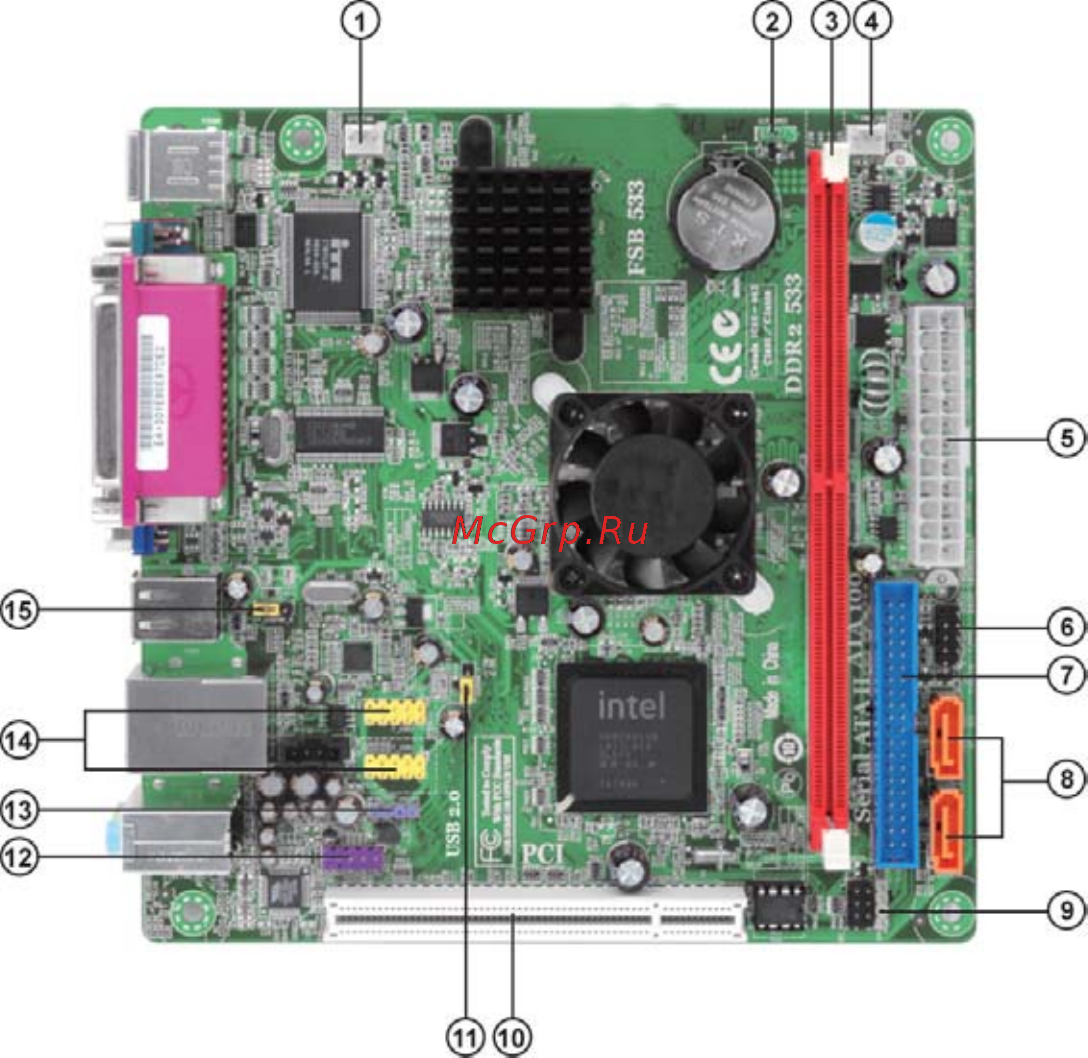

Motherboard Components

Содержание

Copyright 3
Disclaimer 3
Federal communications commission fcc 3
Preface 3
Trademark recognition 3
About the manual 4
Canadian department of communications 4
Declaration of conformity 4
Preface 4
Chapter 1 1 5
Chapter 2 7 7 7 7 7 5
Chapter 3 23 5
Preface i 5
Tttttable of contents able of contents able of contents able of contents able of contents 5
Chapter 4 37 37 37 37 37 6
Manual installation 2 utility software reference 2 6
Using the motherboard software 37 about the software cd rom 7 auto installing under windows xp vista 7 6
Chapter 1 introducing the motherboard 7
Introducing the motherboard 7
Introduction 7
Chipset 8
Feature 8
Introducing the motherboard 8
Memory 8
Processor 8
Bios firmware 9
Expansion options 9
Integrated i o 9
Introducing the motherboard 9
Onboard lan 9
Introducing the motherboard 11
Chapter 2 installing the motherboard 13
Choosing a computer case 13
Installing the motherboard 13
Installing the motherboard in a case 13
Safety precautions 13
Checking jumper settings 14
Installing the motherboard 14
Setting jumpers 14
Checking jumper settings 15
Installing the motherboard 15
Jumper settings 15
Ddr2 533 266 mhz 16
Ddr2 sdram memory module table 16
Installation procedure 16
Installing hardware 16
Installing memory modules 16
Installing the motherboard 16
Ddr2 533 17
Installing the motherboard 17
Table a ddr2 memory module qvl qualified vendor list 17
Type size vendor module name 17
Expansion slot 18
Installing add on card 18
Installing the motherboard 18
Installing the motherboard 19
Connecting optional devices 20
Installing the motherboard 20
Sata1 2 serial ata connectors 20
Spdifo spdif out header 20
F_audio front panel audio header 21
F_usb1 2 front panel usb headers 21
Installing the motherboard 21
Please make sure that the usb cable has the same pin assignment as indicated above a different pin assignment may cause damage or system hang up 21
The motherboard has four usb ports installed on the rear edge i o port array additionally some computer cases have usb ports at the front of the case if you have this kind of case use auxiliary usb connector to connect the front mounted ports to the motherboard 21
This header allows the user to install auxiliary front oriented microphone and line out ports for easier access 21
About ide devices 22
About sata connectors 22
Installing a hard disk drive cd rom sata hard drive 22
Installing serial ata hard drives 22
Installing the motherboard 22
Installing the motherboard 23
Connecting i o devices 24
Installing the motherboard 24
Connecting 24 pin power cable 25
Connecting case components 25
Installing the motherboard 25
Atx1 atx 24 pin power connector 26
Installing the motherboard 26
Spk internal speaker header 26
Sys_fan pwr_fan fan power connectors 26
Front panel header 27
Hard drive activity led 27
Installing the motherboard 27
Power sleep message waiting led 27
Power switch 27
Reset switch 27
About the setup utility 29
Chapter 3 using bios 29
Entering the setup utility 29
The standard configuration 29
Using bios 29
Bios navigation keys 30
Using bios 30
Date time the date and time items show the current date and time on the computer if you are running a windows os these items are automatically updated whenever you make changes to the windows date and time properties utility 31
For the purpose of better product maintenance we reserve the right to change the bios items presented in the manual the bios setup screens shown in this chapter are for reference only please visit our website for updated manual 31
Standard cmos setup 31
This option displays basic information about your system 31
Using bios 31
Bit data transfer disabled 32
Block multi sector transfer auto 32
Dma capability allows user to improve the transfer speed and data integrity for compatible ide devices 32
Dma mode auto 32
Ide busmaster enabled this item enables or disables the dma under dos mode we recommend you to leave this item at the default value 32
If the feature is enabled it will enhance hard disk performance by reading or writing more data during each transfer 32
Lba large mode auto 32
Pio mode auto 32
Primary ide master slave sata1 2 32
S m a r t auto 32
The s m a r t self monitoring analysis and reporting technology system is a diagnostics technology that monitors and predicts device performance s m a r t software resides on both the disk drive and the host computer 32
To return to the standard cmos setup page 32
Use this item to enable or disable 32bit data transfer 32
Use this item to set the lba large mode to enhance hard disk performance by optimizing the area the hard disk is visited each time 32
Use this item to set the pio mode to enhance hard disk performance by optimizing the hard disk timing 32
Using bios 32
Your computer has one ide channel which can be installed with one or two devices master and slave in addition this motherboard supports two sata channels and each channel allows one sata device to be installed use these items to configure each device on the ide channel 32
Advanced setup 33
Apic mode enabled 33
Boot up numlock status on 33
Enable this item to shorten the power on testing post and have your system start up faster you might like to enable this item after you are confident that your system hardware is operating smoothly 33
Hyper threading technology enabled 33
Intel xd bit disabled this item enables or disables the intel xd bit technology 33
Limit cpuid maxval disabled 33
Quick power on self test enabled 33
Thermal management enabled 33
This item allows you to enable or disable the apci advanced programmable inter rupt controller mode apic provides symmetric multi processing smp for sys tems allowing support for up to 60 processors 33
This item defines if the keyboard num lock key is active when your system is started 33
This item displays cpu monitor status 33
This item displays cpu s temperature and enables you to set a safe temperature to prescott cpu 33
This item is only available when the chipset supports hyper threading and you are using a hyper threading cpu 33
This page sets up more advanced information about your system handle this page with caution any changes can affect the operation of your computer 33
Tm status tm1 33
To return to the main menu setting page 33
Use this item to enable or disable the max cpu id value limit 33
Using bios 33
Advanced chipset setup 34
Boot other device yes 34
Hard disk drives press enter 34
St 2nd 3rd boot device hard drive cd dvd removable dev use this item to determine the device order the computer used to look for an operating system to load at start up time the devices showed here will be different depending on the exact devices installed on your motherboard 34
This page sets up more advanced information about your system handle this page with caution any changes can affect the operation of your computer 34
To return to the advanced setup page 34
To return to the main menu setting page 34
To view the following screen 34
Using bios 34
When enabled the system searches all other possible locations for an operating system if it fails to find one in the devices specified under the first second and third boot devices 34
Configure dram timing by spd enabled when this item is set to enable the ddr timing is configured using spd spd serial presence detect is located on the memory modules bios reads information coded in spd during system boot up 35
Dram frequency auto this item enables users to adjust the dram frequency the default setting is auto and we recommend users leave the setting unchanged modify it at will may cause the system to be unstable 35
Dvmt fixed memory 128mb when set to fixed mode the graphics driver will reserve a fixed portion of the system memory as graphics memory when set to dvmt mode the graphics chip will dynamically allocate system memory as graphics memory according to system and graphics requirements 35
Dvmt mode select dvmt mode dvmt is dynamic video memory technology this item helps you select video mode 35
Hpet enabled this item enables or disables hpet high precision event timer support 35
Integrated peripherals 35
Onboard audio function enabled 35
Onboard ide controller enabled 35
Onboard sata mode enhanced 35
This page sets up some parameters for peripheral devices connected to the system 35
To return to the main menu setting page 35
Use this item to enable or disable the onboard audio controller 35
Use this item to enable or disable the onboard ide interface 35
Use this item to select the mode of the serial ata 35
Using bios 35
Using bios 36
Power management setup 37
Using bios 37
Pci pnp setup 38
Using bios 38
Cpu temperature cpu core vdimm 39
Frequency voltage control 39
On motherboards support hardware monitoring this item lets you monitor the parameters for critical voltages temperatures and fan speeds 39
Pc health status 39
Shutdown temperature disabled enable you to set the maximum temperature the system can reach before powering down 39
System component characteristics these items display the monitoring of the overall inboard hardware health events such as system cpu temperature cpu dimm voltage cpu system fan speed etc 39
This page enables you to set the clock speed and system bus for your system the clock speed and system bus are determined by the kind of processor you have in stalled in your system 39
To return to the main menu setting page 39
Using bios 39
Load default settings 40
Supervisor password 40
Using bios 40
Exit without saving 41
Save exit setup 41
User password 41
Using bios 41
Updating the bios 42
Using bios 42
About the software cd rom 43
Auto installing under windows xp vista 43
Chapter 4 using the motherboard software 43
Using the motherboard software 43
Running setup 44
Using the motherboard software 44
Drivers and software are automatically installed in sequence follow the onscreen instructions confirm commands and allow the computer to restart a few times to complete the installation 45
During the windows vista driver auto setup procedure users should use one of the following two methods to install the driver after the system restart 45
Using the motherboard software 45
Method 1 run reboot setup 46
Method 2 disable uac user account control 46
Using the motherboard software 46
Using the motherboard software 47
Manual installation 48
Using the motherboard software 48
Utility software reference 48
