ECS Elitegroup Z87H3-A2X GOLDEN [25/104] Z87h3 a2x extreme golden user manual

Chapter 2

Z87H3-A2X EXTREME (GOLDEN) USER MANUAL

Please make sure that the USB cable has the same pin assignment as

indicated above. A different pin assignment may cause damage or system

hang-up.

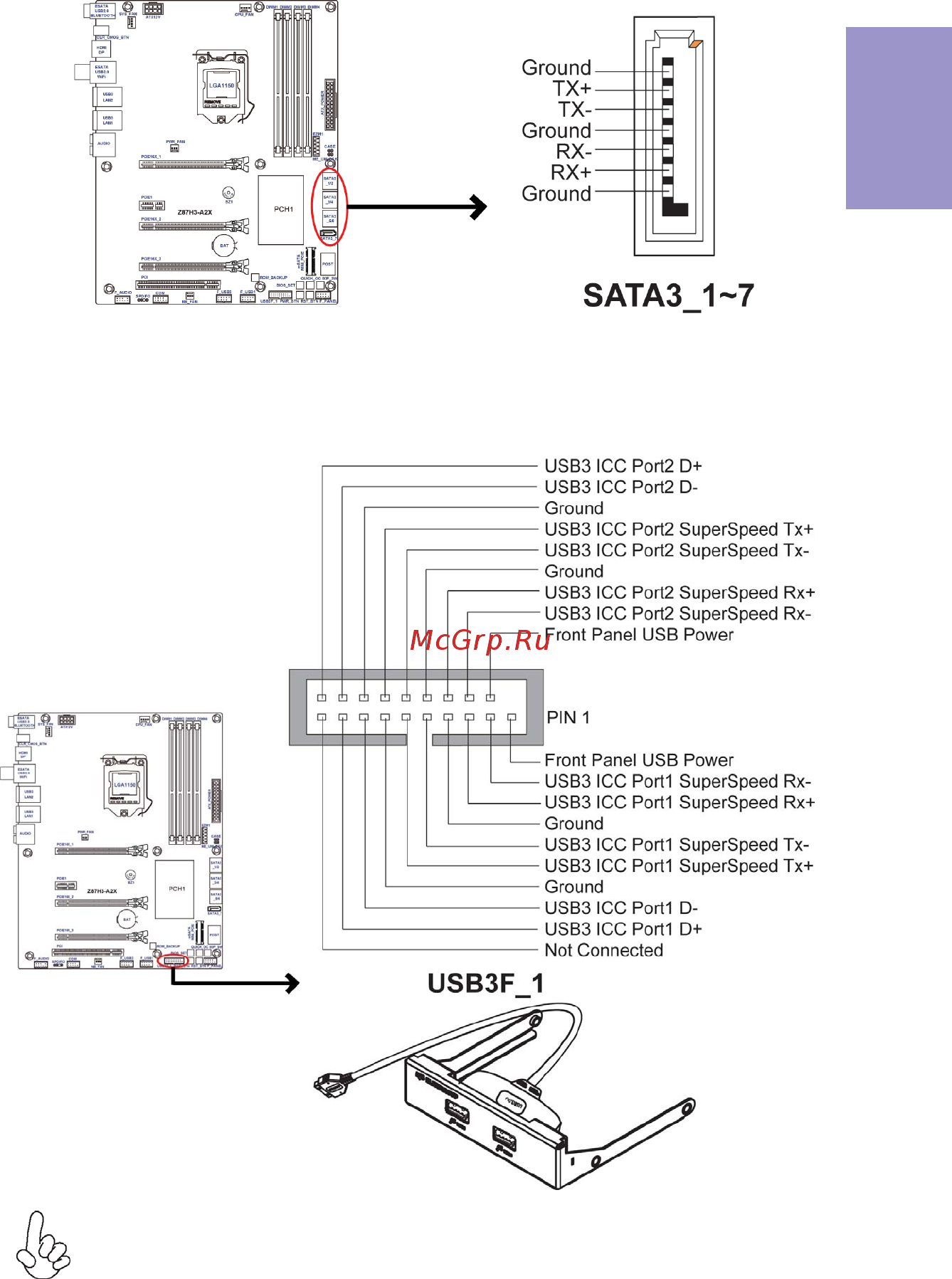

This Motherboard implements one USB 3.0 header supporting two extra front USB

3.0 ports, which delivers 5Gb/s transfer rate.

5. USB3F_1: Front Panel USB 3.0 Header

SATA3_1~7 connectors support the Serial ATA 6Gb/s device. Simpler disk drive

cabling and easier PC assembly.

4. SATA3_1~7 : Serial ATA Cconnectors
