Chapter 2

H87H3-M USER MANUAL

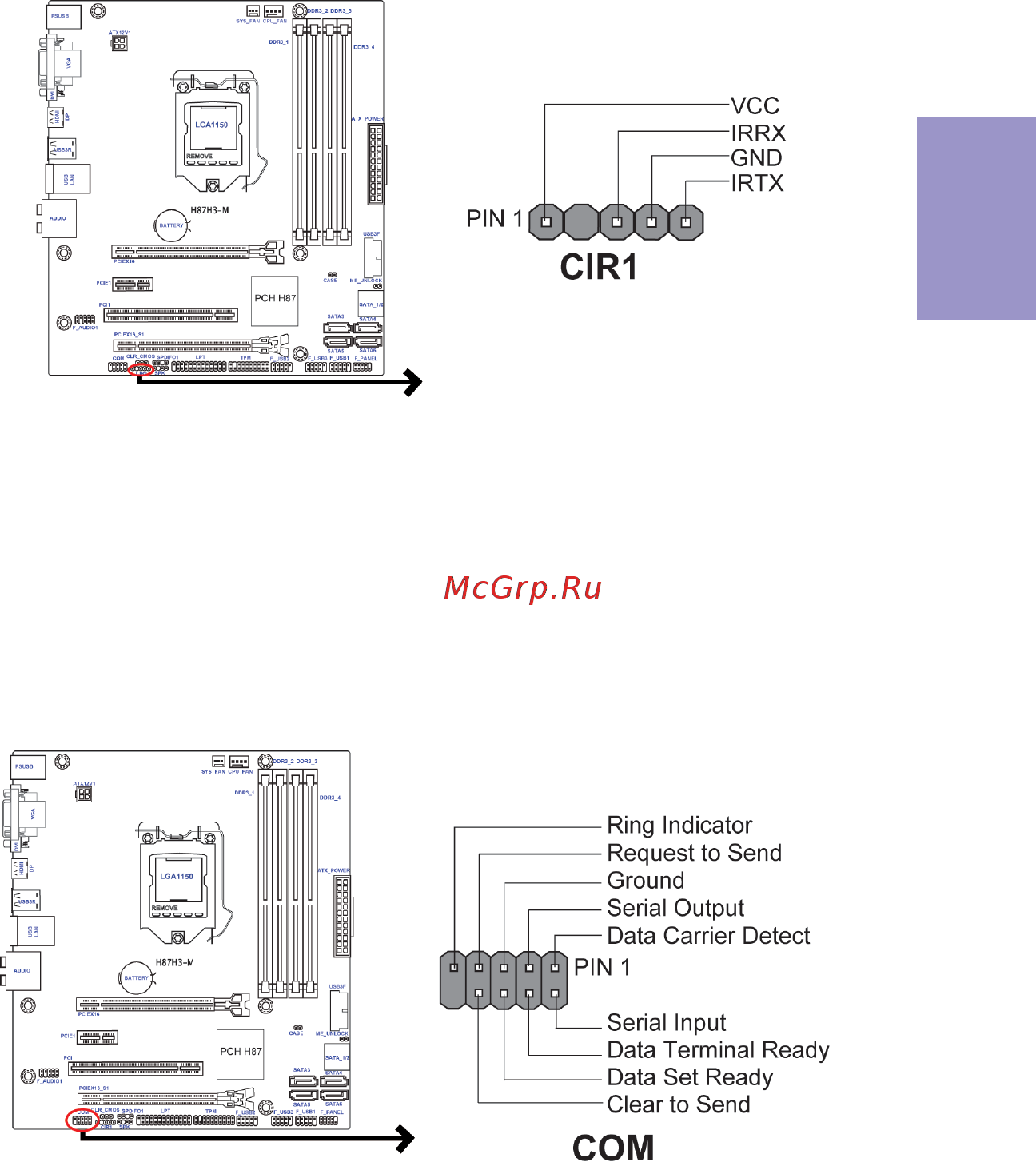

11. COM: Onboard serial port header

Connect a serial port extension bracket to this header to add a serial port to your

system.

10. CIR: Consumer Infrared Header
