ECS Elitegroup RS480-M [15/86] Installing the motherboard
![ECS Elitegroup RS480-M [15/86] Installing the motherboard](/views2/1212433/page15/bgf.png)
9
Installing the Motherboard
Checking Jumper Settings

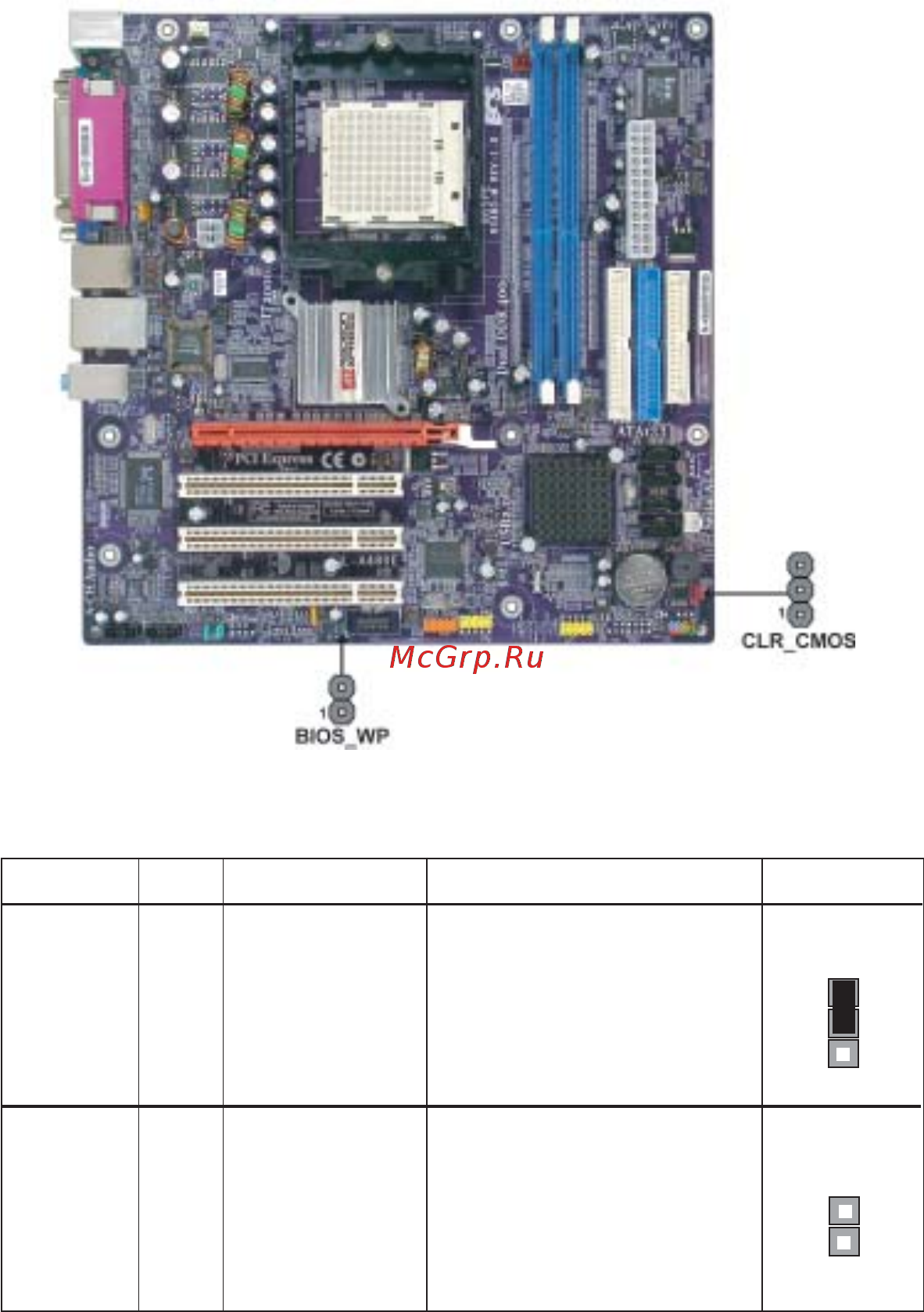

The following illustration shows the location of the motherboard jumpers. Pin 1 is labeled.
Jumper Settings
Jumper
Type
Description
Setting (default)
CLR_CMOS
3-pin
CLEAR CMOS
1-2: CLEAR
2-3: NORMAL
Before clearing the
CMOS, make sure to
turn off the system.
BIOS_WP 2-pin
BIOS WRITE
OPEN: ENABLE
SHORT: DISABLE
CLR_CMOS
1
BIOS_WP
1
