ECS Elitegroup KV2 Lite [15/65] Rear panel
![ECS Elitegroup KV2 Lite [15/65] Rear panel](/views2/1212434/page15/bgf.png)
1-10
5. Line out jack
This jack connects a headphone or a speaker. In 6-channel mode, the
function of this jack becomes Front Speaker Out.
6. Microphone jack
This jack connects a microphone. In 6-channel mode, the function of
this jack becomes Basss/Center Speaker Out.
7. USB 2.0 ports 3 and 4
These Universal Serial Bus (USB) ports are available for connecting
USB 2.0 devices.
8. USB 2.0 ports 1 and 2
These Universal Serial Bus (USB) ports are available for connecting
USB 2.0.
9. Serial port
This 9-pin COM1 port is for serial devices.
10. PS/2 keyboard port
This 6-pin connector is for connecting PS/2 keyboard.
1. PS/2 mouse port
This 6-pin connector is for connecting PS/2 mouse.
2. Parallel port
This 25-pin port connects a parallel printer, a scanner, or other
devices.
3. RJ-45 port
This port allows connection to a Local Area Network (LAN)
through a network hub. It supports up to 10/100Mbps transfer rate.
4. Line in jack
This jack connects a tape player or other audio sources. In 6-channel
mode, the function of this jack becomes Rear Speaker Out.

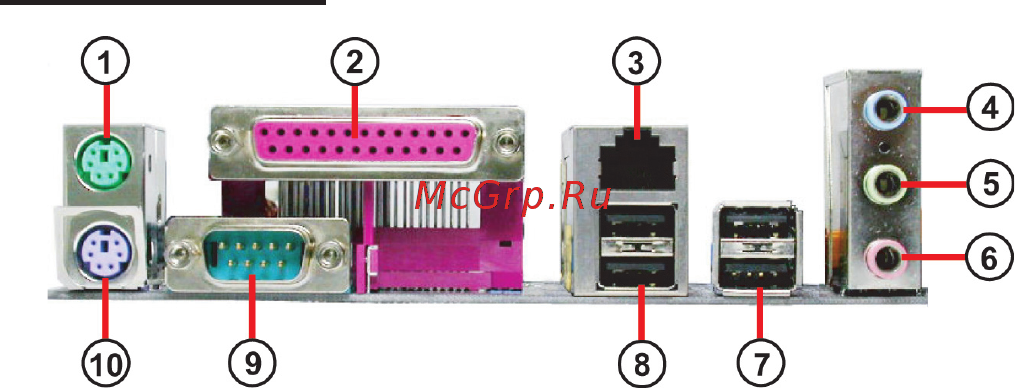

1.8 Rear Panel
