Installing the Motherboard

Checking Jumper Settings

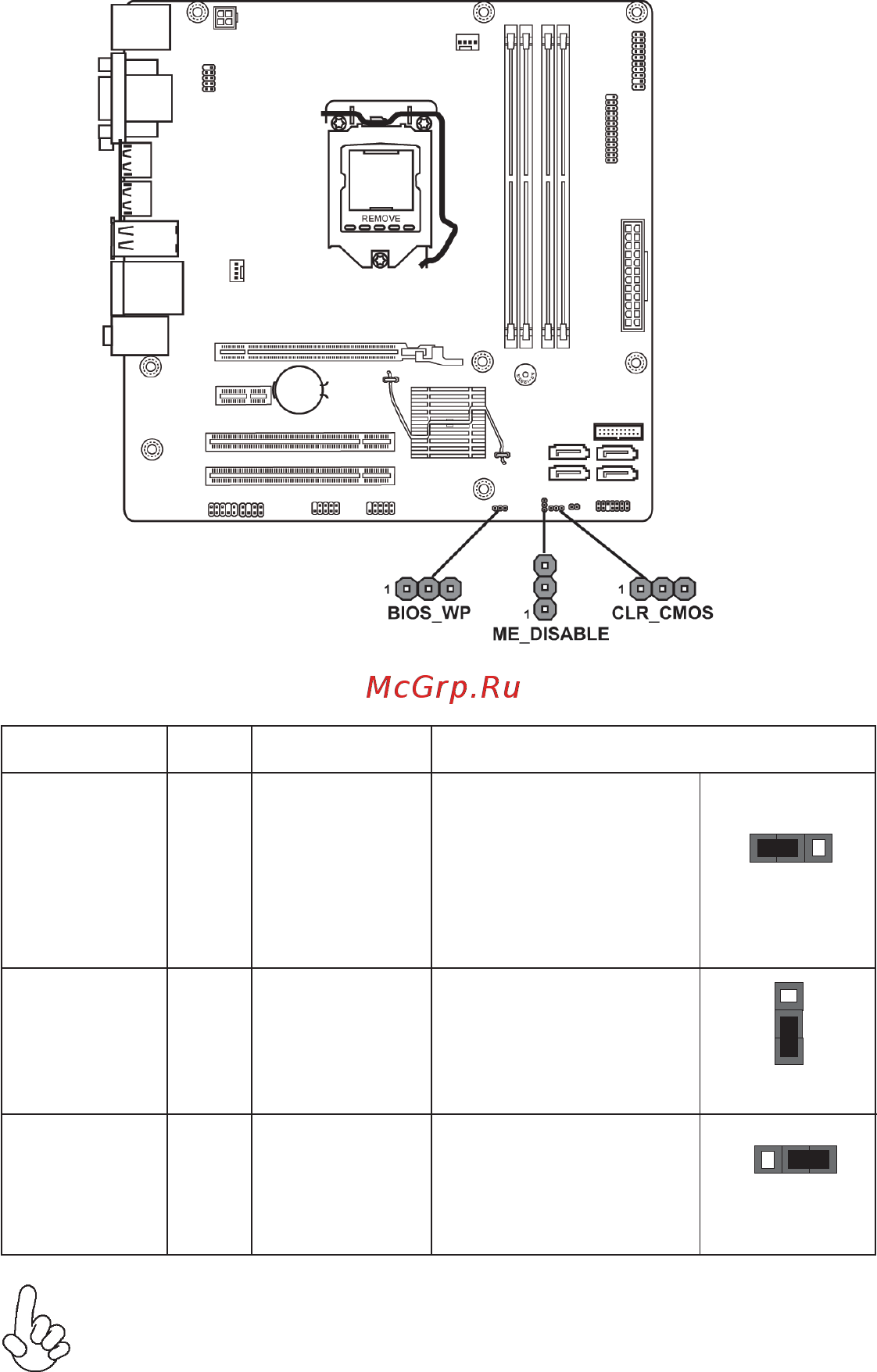

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

Jumper Settings

To avoid the system instability after clearing CMOS, we recommend users

to enter the main BIOS setting page to “Load Default Settings” and then

“Save and Exit Setup”.

Jumper

Type

Description Setting (default)

CLR_CMOS

3-pin

Clear CMOS

1-2: NORMAL

2-3: CLEAR

Before clearing the

CMOS, make sure to

turn off the system.

CLR_CMOS

ME_DISABLE

3-pin

ME Disable

1-2: NORMAL

2-3: ME disable

ME_DISABLE

BIOS_WP

1-2: BIOS_WP

2-3: NORMAL

3-pin

BIOS Flash

Protect
