Содержание
- Copyright 1
- Disclaimer 1
- Federal communications commission fcc 1
- Preface 1
- Trademark recognition 1
- About the manual 2
- Canadian department of communications 2
- Declaration of conformity 2
- Preface 2
- Chapter 1 1 3
- Chapter 2 7 7 7 7 7 3
- Chapter 3 27 3
- Connecting i o devices 21 connecting case components 2 3
- Installing hardware 0 3
- Installing the motherboard 7 safety precautions choosing a computer case installing the motherboard in a case checking jumper settings 3
- Introducing the motherboard 1 introduction feature specifications motherboard components 3
- Preface i 3
- Tttttable of contents able of contents able of contents able of contents able of contents 3
- Using bios 27 about the setup utility 27 3
- Using bios 8 3
- Chapter 4 61 61 61 61 61 4
- Chapter 5 65 65 65 65 65 4
- Chapter 1 introducing the motherboard 5
- Introducing the motherboard 5
- Introduction 5
- Chipset 6
- Feature 6
- Introducing the motherboard 6
- Memory 6
- Processor 6
- Bios firmware 7
- Expansion options 7
- Integrated i o 7
- Introducing the motherboard 7
- Onboard lan optional 7
- Introducing the motherboard 8
- Specifications 8
- Introducing the motherboard 10

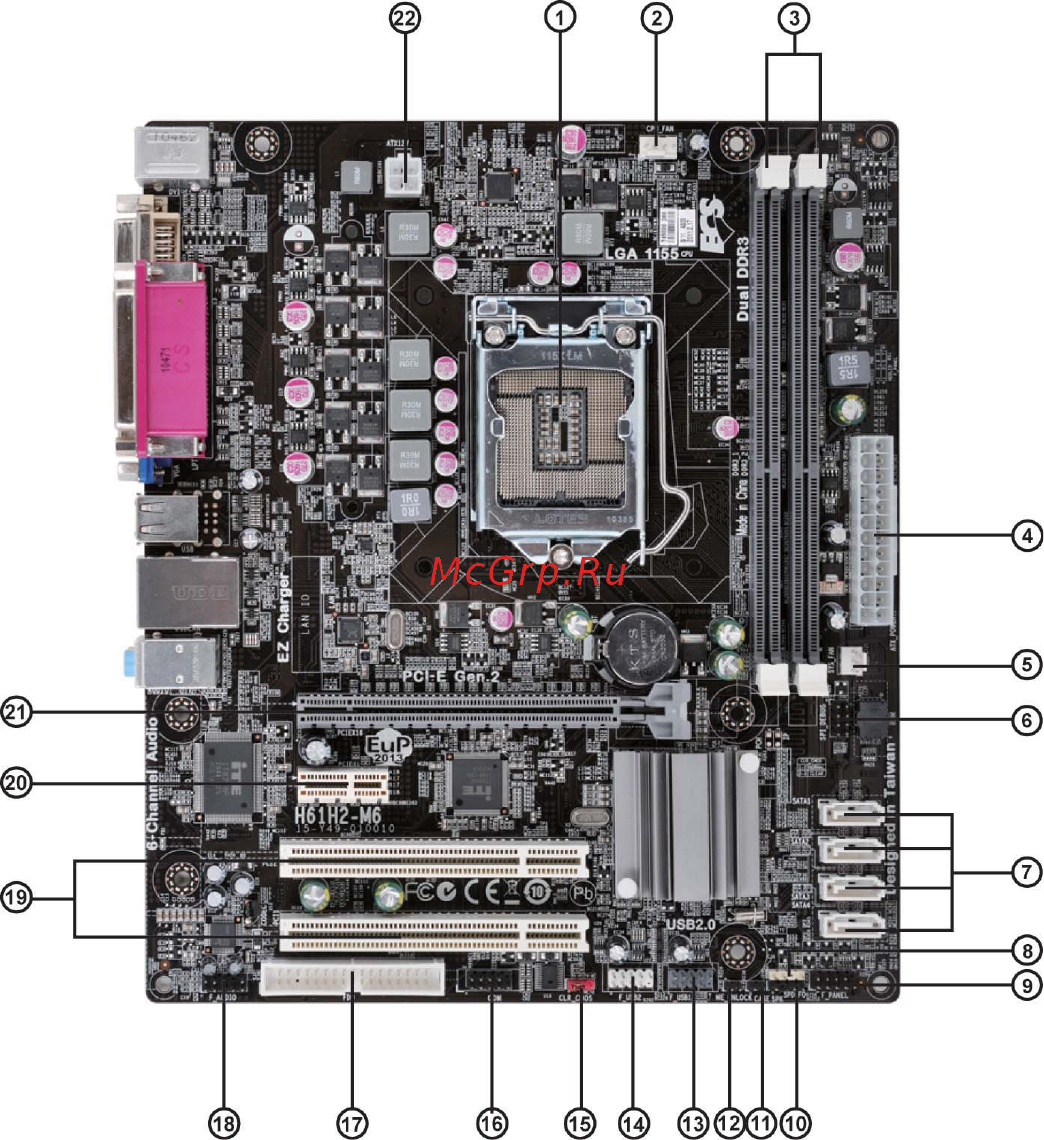

- Table of motherboard components 10
- Chapter 2 installing the motherboard 11
- Choosing a computer case 11
- Installing the motherboard 11
- Installing the motherboard in a case 11
- Safety precautions 11
- Checking jumper settings 12
- Installing the motherboard 12
- Setting jumpers 12
- Checking jumper settings 13
- Installing the motherboard 13
- Jumper settings 13
- Before installing the processor 14
- Fail safe procedures for over clocking 14
- Installing hardware 14
- Installing the motherboard 14
- Installing the processor 14
- Cpu installation procedure 15
- Installing the motherboard 15
- Ddr3 sdram memory module table 16
- Installing memory modules 16
- Installing the motherboard 16
- Installation procedure 17
- Installing the motherboard 17
- Expansion slots 18
- Installing add on cards 18
- Installing the motherboard 18
- Installing the motherboard 19
- Connecting optional devices 20
- F_audio front panel audio header 20
- Installing the motherboard 20
- Refer to the following for information on connecting the motherboard s optional devices 20
- Sata1 4 serial ata connectors 20
- These connectors are used to support the serial ata 3 gb s devices simpler disk drive cabling and easier pc assembly it eliminates limitations of the current parallel ata interface but maintains register compatibility and sofeware compatibility with prallel ata 20
- This header allows the user to install auxiliary front oriented microphone and line out ports for easier access 20
- Com onboard serial port header 21
- Connect a serial port extension bracket to this header to add a serial port to your system 21
- F_usb1 2 front panel usb headers 21
- Installing the motherboard 21
- Please make sure that the usb cable has the same pin assignment as indicated above a different pin assignment may cause damage or system hang up 21
- The motherboard has two usb 2 headers supporting four usb 2 ports addition ally some computer cases have usb ports at the front of the case if you have this kind of case use auxiliary usb connector to connect the front mounted ports to the motherboard 21
- Unlike f_usb2 in this mainboard f_usb1 supports ez charger technology pro vides 3 times current than general usb port in off mode for usb devices it is useful and excellent especially for the iphone ipad and ipod touch devices that need a large amount of current for faster recharging within less time 21
- Case chassis intrusion detect header 22
- Installing the motherboard 22
- Me_unlock me unlock header 22
- Spdifo spdif out header 22
- About sata connectors 23
- Installing a sata hard drive 23
- Installing serial ata hard drives 23
- Installing the motherboard 23
- Fdd floppy disk connector 24
- Installing a floppy diskette drive 24
- Installing the motherboard 24
- Connecting i o devices 25
- Installing the motherboard 25
- Connecting 24 pin power cable 26
- Connecting case components 26
- Installing the motherboard 26
- Atx_power atx 24 pin power connector 27
- Connecting 4 pin power cable 27
- Cpu_fan cpu cooling fan power connector 27
- Installing the motherboard 27
- Sys_fan system cooling fan power connectors 27
- Atx12v atx 12v power connector 28
- Installing the motherboard 28
- Spk internal speaker 28
- Connecting pins 1 and 3 to a front panel mounted led provides visual indication that data is being read from or written to the hard drive for the led to function properly an ide drive should be connected to the onboard ide interface the led will also show activity for devices connected to the scsi hard drive activity led connector 29
- Connecting pins 2 and 4 to a single or dual color front panel mounted led provides power on off sleep and message waiting indication 29
- Front panel header 29
- Hard drive activity led 29
- Installing the motherboard 29
- Power sleep message waiting led 29
- Power switch 29
- Reset switch 29
- Supporting the power on off function requires connecting pins 6 and 8 to a momen tary contact switch that is normally open the switch should maintain contact for at least 50 ms to signal the power supply to switch on or off the time requirement is due to internal de bounce circuitry after receiving a power on off signal at least two seconds elapses before the power supply recognizes another on off signal 29
- Supporting the reset function requires connecting pin 5 and 7 to a momentary contact switch that is normally open when the switch is closed the board resets and runs post 29
- The front panel header f_panel provides a standard set of switch and led headers commonly found on atx or micro atx cases refer to the table below for informa tion 29
- This concludes chapter 2 the next chapter covers the bios 29
- About the setup utility 31
- Chapter 3 using bios 31
- Entering the setup utility 31
- The standard configuration 31
- Using bios 31
- Resetting the default cmos values 32
- Using bios 32
- Advanced 33
- Bios navigation keys 33
- Default 33
- Language 33
- Using bios 33
- Date time the date and time items show the current date and time on the computer if you are running a windows os these items are automatically updated whenever you make changes to the windows date and time properties utility 34
- Main menu 34
- System language english this item is used to set system language 34
- To display the submenu 34
- Using bios 34
- Advanced menu 35
- Lan configuration 35
- Network stack enabled use this item to enable or disable uefi network stack ipv4 6 pxe support enabled use these items to enable ipv4 6 pxe boot support if disabled ipv4 6 pxe boot option will not be created 35
- Onboard lan controller enabled use this item to enable or disable the onboard lan 35
- The advanced menu items allow you to change the settings for the cpu and other system 35
- The item in the menu shows the lan related information that the bios automatically detects 35
- Using bios 35
- Cpu smart fan control enabled 36
- On motherboards support hardware monitoring this item lets you monitor the parameters for critical voltages temperatures and fan speeds 36
- Pc health status 36
- Smart fan mode normal 36
- This item allows you to enable disable the control of the cpu fan speed by changing the fan voltage 36
- This item allows you to select the fan mode normal quiet silent or manual for a better operation environment if you choose normal mode the fan speed will be auto adjusted depending on the cpu temperature if you choose quiet mode the fan speed will be auto minimized for quiet environment if you choose silent mode the fan speed will be auto restricted to make system more quietly if you choose manual mode the fan speed will be adjust depending on users parameters 36
- To view the following screen smart fan function 36
- Using bios 36
- Using bios 37
- Eup function enabled this item allows user to enable or disable eup function 38
- Power led type dual color led this item shows the type of the power led 38
- Power management setup 38
- Resume by pme disabled the system can be turned off with a software command if you enable this item the system can automatically resume if there is an incoming call on the pci modem or pci lan card you must use an atx power supply in order to use this feature use this item to do wake up action if inserting the pci card 38
- Resume by ps2 kb s3 disabled this item enables or disables you to allow keyboard activity to awaken the system from power saving mode 38
- Resume by ps2 ms s3 disabled this item enables or disables you to allow mouse activity to awaken the system from power saving mode 38
- Resume by ring disabled the system can be turned off with a software command if you enable this item the system can automatically resume if there is an incoming call on the modem you must use an atx power supply in order to use this feature 38
- Resume by usb 1 x 2 s3 disabled this item allows you to enable disable the usb device wakeup function from s3 mode 38
- This page sets up some parameters for system power management operation 38
- To return to the advanced menu page 38
- Using bios 38
- Acpi setting 39
- Acpi sleep state s3 suspend to ram this item allows user to enter the acpi s3 suspend toram sleep state default 39
- Cpu configuration 39
- The item in the menu shows the highest acpi sleep state when the system enters suspend 39
- To return to the advanced menu page 39
- To view the following screen 39
- Using bios 39
- Using bios 40
- H61 chipset is not fully support ahci mode hw support only 41
- Sata configuration 41
- Sata mode ide mode use this item to select sata mode 41
- Sata port 1 4 not present this motherboard supports four sata channel and each channel allows one sata device to be installed use these items to configure each device on the sata channel 41
- To return to the advanced menu page 41
- Use this item to show the mode of serial sata configuration options 41
- Using bios 41
- All usb devices enabled use this item to enable or disable all usb devices 42
- Legacy usb support enabled use this item to enable or disable support for legacy usb devices setting to audio allows the system to detect the presence of the usb device at startup if detected the usb controller legacy mode is enabled if no usb device is detected the legacy usb support is disabled 42
- To return to the advanced menu page 42
- To view the following screen 42
- Usb configuration 42
- Using bios 42
- Floppy disk controller enabled 43
- Super io chip it8728 this item shows the information of the super io chip 43
- Super io configuration 43
- This item allows you to enable or disable floppy disk controller 43
- To return to the super io configuration page 43
- To view the following screen 43
- Use this item to show the information of the super io configuration 43
- Using bios 43
- Change settings auto 44
- Device settings io 3f 8h irq 4 44
- Serial port enabled 44
- This item allows you to enable or disable serial port 44
- This item shows the information of the device settings 44
- To return to the super io configuration page 44
- To view the following screen 44
- Use this item to change device settings 44
- Using bios 44
- Change settings auto 45
- Device mode standard parallel 45
- Device settings io 378h irq 5 45
- Parallel port enabled 45
- This item allows you to enable or disable parallel port 45
- This item shows the information of the device settings 45
- To return to the advanced menu page 45
- To return to the super io configuration page 45
- To view the following screen 45
- Use this item to change device settings 45
- Use this item to select device mode 45
- Using bios 45
- And view the following screen 46
- Chipset menu 46
- Dvmt memory 256m 46
- Igd memory 64m 46
- Igd multi monitor disabled 46
- Initiate graphic adapter auto 46
- The chipset menu items allow you to change the settings for the north bridge chipset south bridge chipset and other system 46
- This item allows you to select graphics controller to use as the primary boot device 46
- This item enables or disables igd internal graphics device multi monitor 46
- This item shows the information of the igd internal graphics device memory 46
- Using bios 46
- When set to fixed mode the graphics driver will reserve a fixed position of the system memory as graphics memory according to system and graphics requirements 46
- Multi monitor technology 47
- Using bios 47
- Step 2 install all the drivers of pci express graphic cards click the browse cd item then appears the following screen select the driver you want to install e g nvidia geforce 8400 gs microsoft corporation wddm v1 and double click it 48
- Step 3 enable igd multi monitor from bios in the following bios screen please set igd multi monitor to enabled 48
- Using bios 48
- Display devices 49
- Enter the control panel menu select the display in the all control panel items and click the screen resolution then appears the following screen 49
- Select display devices set the multiple displays option and to extend destop for display multi monitor technology 49
- Set the multiple displays 49
- Show the path of the setting location 49
- Step 4 change the appearance of your displays under windows 7 8 49
- The type of the display 49
- Using bios 49
- Using bios 50
- Audio configuration 51
- Azalia hd audio enabled 51
- Azalia internal hdmi codec enabled 51
- Case open warning disabled 51
- Chassis opened no 51
- Restore ac power loss power off 51
- This item enables or disables azaia internal hdmi codec 51
- This item enables or disables azalia hd audio 51
- This item enables or disables the warning if the case is opened up and the item below indicates the current status of the case 51
- This item enables your computer to automatically restart or return to its operating status 51
- This item indicates whether the case has been opened 51
- This item shows the information of the audio configuration 51
- To return to the chipset menu page 51
- To view the following screen 51
- Using bios 51
- Me fw version 8 248 this item shows the me version 52
- To return to the chipset menu page 52
- To view the following screen 52
- Using bios 52
- M i b iii mb intelligent bios iii menu 53
- Memory voltage config auto 53
- Memory voltage control scroll to this item to view the following screen 53
- This item allows users to select memory voltage config 53
- This page enables you to set the clock speed and system bus for your system the clock speed and system bus are determined by the kind of processor you have installed in your system 53
- To return to the m i b iii menu page 53
- Using bios 53
- Cpu frequency 100 54
- Cpu overclocking configuration scroll to this item to view the following screen 54
- Cpu ratio 30 54
- Enhanced intel speedstep technology enabled 54
- Graphics core ratio limit 22 this item allows you to control the internal gfx turbo ratio 54
- Graphics voltage 1 256 0 this item allows you to adjust the internal gfx voltage 54
- This item allows users to control non turbo cpu ratio 54
- This item allows users to enable or disable the eist enhanced intel speedstep technology 54
- This item shows the information of the cpu frequency 54
- Using bios 54
- Active to active delay trrdmin 4 55
- Cas latency tcl 9 55
- Chipset overclocking configuration scroll to this item to view the following screen 55
- Ras active time tras 24 55
- Ras to cas delay trcd 9 55
- Read cas precharge trtp 5 55
- Row precharge time trp 9 55
- Row refresh cycle time trfc 74 55
- This item controls the active bank x to active bank y in memory clock cycles 55
- This item controls the four bank activate time in memory clock cycles four active window delay tfaw 20 55
- This item controls the read to precharge delay for memory devices in memory clock cycles 55
- This item determines the operation of ddr sdram memory cas colulmn address strobe it is recommended that you leave this item at the default value the 2t setting requires faster memory that specifically supports this mode 55
- This item specifies row precharge to active or auto refresh of the same bank 55
- This item specifies the ras active time 55
- This item specifies the ras to cas delay to rd wr command to the same bank 55
- This item specifies the row refresh cycle time 55
- This item specifies the write recovery time 55
- This item specifies the write to read delay time 55
- To return to the m i b iii menu page 55
- Using bios 55
- Write recovery time twr 10 55
- Write to read delay twtr 5 55
- Using bios 56
- Boot configuration this item shows the information of the boot configuration 57
- Boot menu 57
- Boot mode select legacy use this item to select boot mode 57
- Boot option 1 2 3 4 5 6 7 these items show the boot priorities 57
- Bootup numlock state on this item enables you to select numlock state 57
- Launch pxe oprom disabled the item enables or disables launch pxe option rom launch storage oprom enabled the item enables or disables launch storage option rom 57
- Operation system select windows7 or other os this item is used to select the operation system 57
- Quiet boot enabled this item enables or disables quiet boot 57
- Set boot priority this item enables you to set boot priority for all boot devices 57
- This page enables you to set the keyboard numlock state 57
- Using bios 57
- Boot option filter 58
- Csm parameters oprom execution boot options filter etc 58
- Launch csm 58
- Launch pxe oprom policy this controls the execution of uefi and legacy pxe oprom 58
- Launch storage oprom policy this controls the execution of uefi and legacy storage oprom 58
- Launch video oprom policy this controls the execution of uefi and legacy video oprom 58
- Other pci device rom priority for pci devices other than network mass storage or video defines which oprom to launch 58
- This option controls if csm will be launched 58
- This option controls what devices system can boot to 58
- To return to the boot menu page 58
- To see the submenu 58
- To view the following screen 58
- Using bios 58
- Administrator password status not install this item shows administrator password installed or not 59
- Secure boot enabled this item is used to control the secure boot flow it is possible only if system runs in user mode secure boot mode custom this item is used to select secure boot mode when you select standard mode secure boot policy is fixed when you select custom mode the image execution policy and secure boot key databases are changeable 59
- Secure boot state disabled this item allows you to enable or disable the secure boot state 59
- Security menu 59
- System mode state setup this item shows system mode setup or not 59
- This page enables you to set setup administrator password and user password 59
- User password status not install this item shows user password installed or not 59
- Using bios 59
- Image execution policy scroll to this item to view the following screen 60
- Internal fv option rom removable media fixed media always execute deny execute these items allow you to select image execution policy per device path on security violation only users logged with administrative password can exercise query user policy setting 60
- To return to the security menu page 60
- Using bios 60
- Append an entry to kek db dbx this item launches the file browser to append new signature database from the file the file data must be formatted as efi variable with timebased authenticated header 61
- Authorized signature database db this item shows the information of the authorized signature database 61
- Default key provisioning disabled this item enables or disables you to force oem default secure boot keys if system is in setup mode 61
- Delete the pk kek db dbx this item is used to delete the variable key exchange key database kek this item shows the information of the key exchange key database 61
- Forbidden signature database dbx this item shows the information of the forbidden signature database 61
- Get pk kek db dbx to file this item is used to store secure variable to a file with a matching name in selected file system s root 61
- Key management scroll to this item to view the following screen 61
- Platform key pk this item shows the information of the platform key set pk kek db dbx from file this item launches the file browser to set efi variable from the file the file data must be formatted as efi variable with timebased authenticated header 61
- Using bios 61
- Boot override use this item to select the boot device 62
- Discard changes and exit this item enables you to discard any changes that you have made and exit 62
- Discard changes and reset this item enables you to discard any changes that you have made and reset 62
- Discard changes this item enables you to discard any changes that you have made 62
- Exit menu 62
- Restore defaults this item enables you to restore the system defaults 62
- Restore user defaults this item enables you to restore user defaults 62
- Save as user defaults this item enables you to save the changes that you have made as user defaults 62
- Save changes and exit this item enables you to save the changes that you have made and exit 62
- Save changes and reset this item enables you to save the changes that you have made and reset 62
- Save changes this item enables you to save the changes that you have made 62
- Save options this item enables you to save the options that you have made 62
- This page enables you to exit system setup after saving or without saving the changes 62
- Using bios 62
- Updating the bios 63
- Using bios 63
- Auto installing under windows xp 7 8 65
- Chapter 4 using the motherboard software 65
- Running setup 65
- Using the motherboard software 65
- Drivers and software are automatically installed in sequence follow the onscreen instructions confirm commands and allow the computer to restart a few times to complete the installation 66
- Using the motherboard software 66
- Windows 8 will show the following screen after system restart you must select desktop in the bottom left to install the next driver 66
- Ecs utility software intelligent ez utility 67
- Manual installation 67
- Using the motherboard software 67
- Using the motherboard software 68
- A system does not power up and the fans are not running 69
- B power is on fans are running but there is no display 69
- C the pc suddenly shuts down while booting up 69
- Chapter 5 trouble shooting 69
- Start up problems during assembly 69
- Trouble shooting 69
- Maintenance and care tips 70
- Start up problems after prolong use 70
- Trouble shooting 70
- Basic troubleshooting flowchart 71
- Yes yes 71
