Chapter 2

H77H2-M3 USER MANUAL

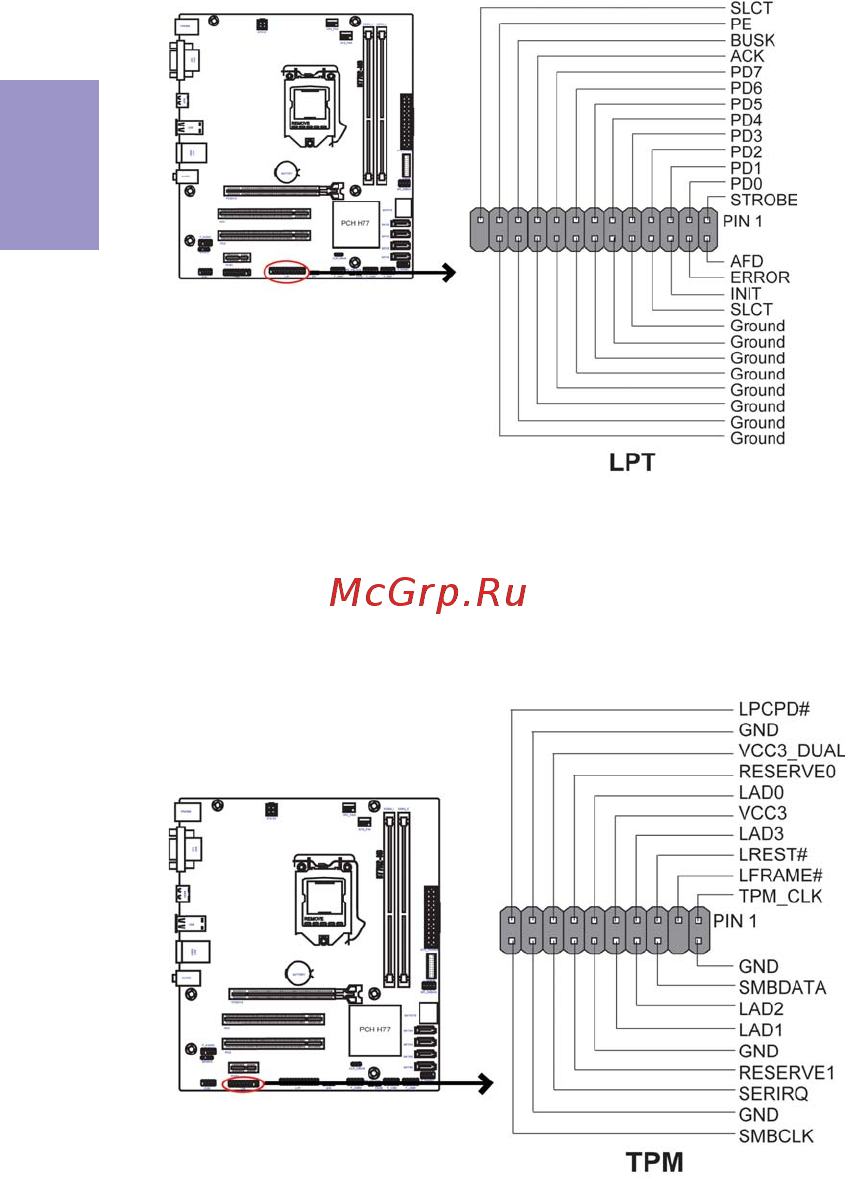

5. LPT: Onboard parallel port Header

This is a header that can be used to connect to the printer, scanner or other devices.

Trusted platform module (TPM) is a published specification detailing a micro con-

troller that can store secured information, and implementations of that specifica-

tion.

6. TPM: Trusted Platform Module header
