H77H2-M4 USER MANUAL

Chapter 5

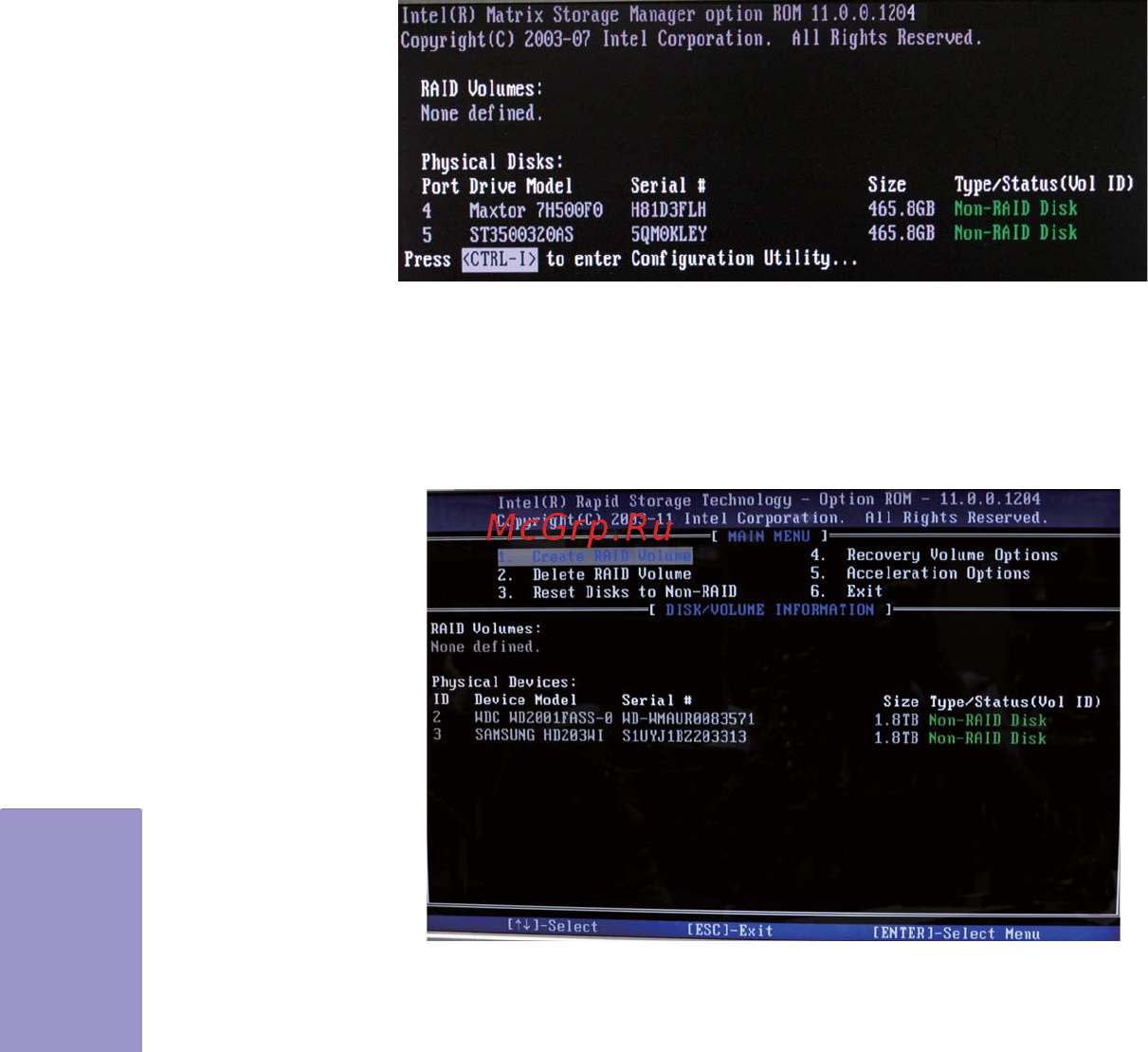

2. The main Intel

Matrix Storage Manager RAID BIOS menu appears.

Entering Intel

®®

Matrix Storage Manager RAID BIOS utility

1. During POST, press <Ctrl-I> to enter the Intel

Matrix Storage Manager RAID

BIOS menu.

3. Use the arrow keys to move the color bar and navigate through the items.
