ECS Elitegroup X77H2-A3 [12/76] X77h2 a3 user manual

Chapter 2

X77H2-A3 USER MANUAL

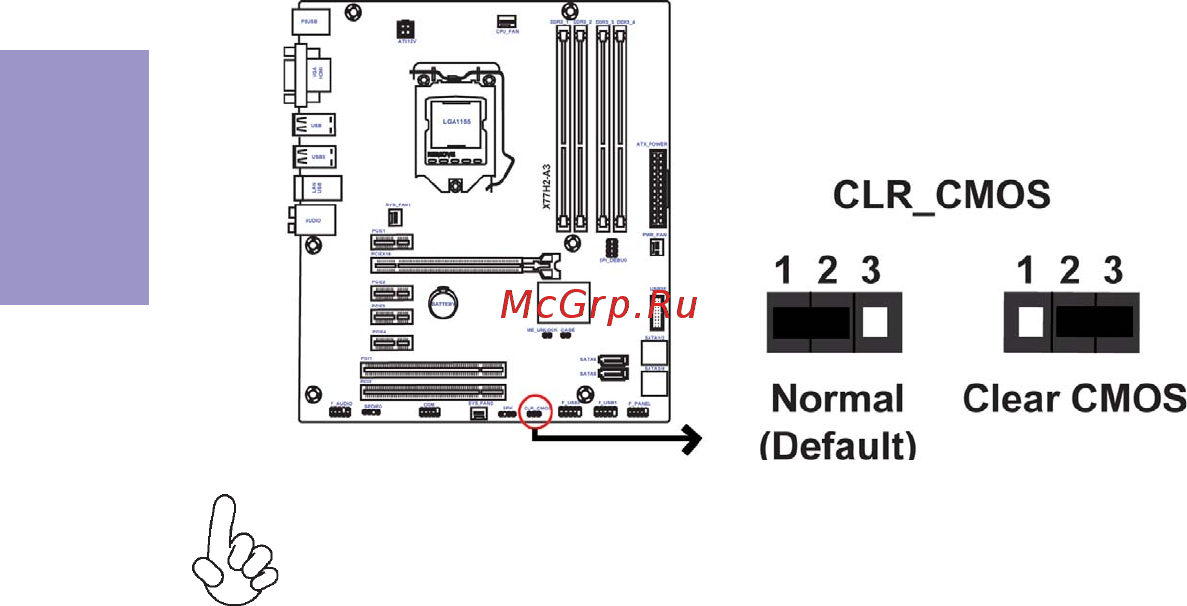

The following illustration shows the location of the motherboard jumpers. Pin 1 is

labeled.

To avoid the system instability after clearing CMOS, we recommend users to

enter the main BIOS setting page to “Load Default Settings” and then “Save

and Exit Setup”.

2-3. Checking Jumper Settings
