20 21
English
B150M-HDS

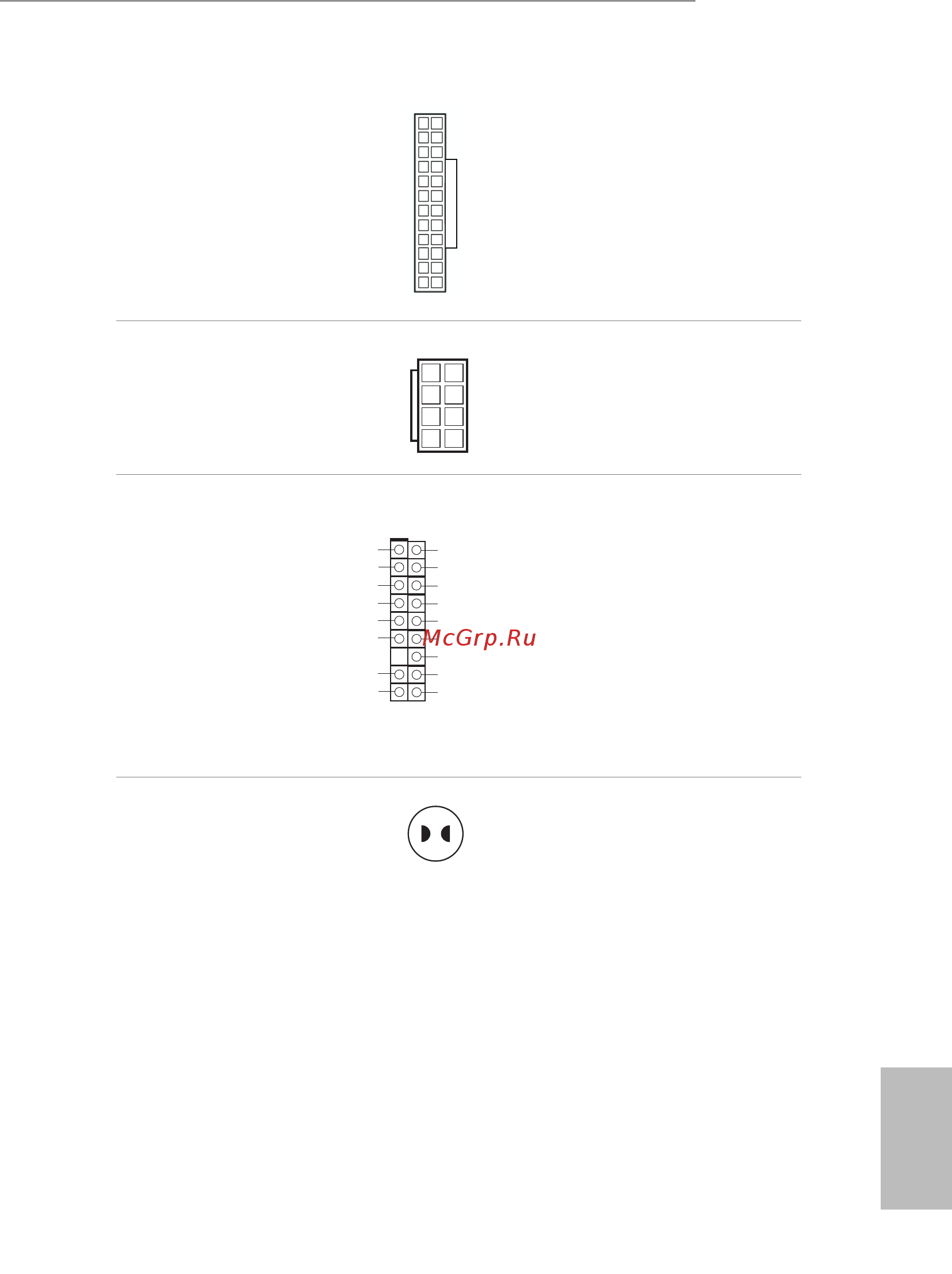

ATX Power Connector
(24-pin ATXPWR1)
(see p.6, No. 5)
is motherboard pro-
vides a 24-pin ATX power
connector. To use a 20-pin
ATX power supply, please
plug it along Pin 1 and Pin
13.
ATX 12V Power
Connector
(8-pin ATX12V1)
(see p.6, No. 1)
5
8
1
4
is motherboard pro-
vides a 8-pin ATX 12V
power connector.
TPM Header
(17-pin TPMS1)
(see p.6, No. 8)
1
GN D
SM B_DATA_MAIN
L A D2
L A D1
GN D
S _ PWRD WN#
SE RIRQ
#
GN D
PC ICL
K
PC IRST
#
L A D3
+3 V
L A D0
+ 3 VSB
GN D
FR AME
SM B_CLK_MAIN
is connector supports Trusted
Platform Module (TPM) system,
which can securely store keys,
digital certicates, passwords,
and data. A TPM system also
helps enhance network security,
protects digital identities, and
ensures platform integrity.
Clear CMOS Pad
(CLR MOS1)
(see p.6, No. 10)
CLRMOS1 allows you to
clear the data in CMOS. To
clear CMOS, take out the
CMOS battery and short the
Clear CMOS Pad.
1
12
13
24
