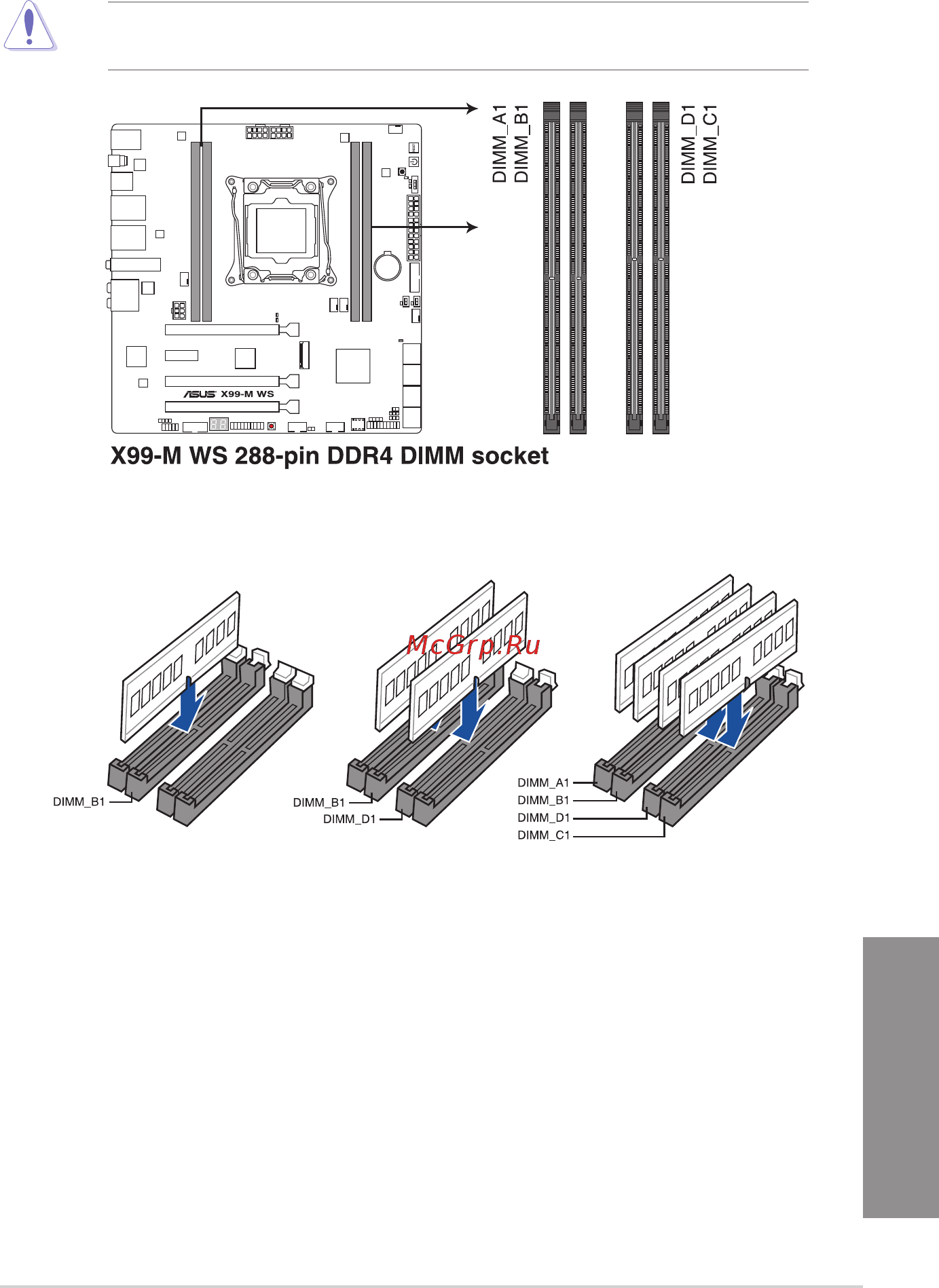

Asus x99-m ws [21/176] System memory

ASUS X99-M WS

1-7

Chapter 1

Recommended memory congurations

1.2.4 System memory

The motherboard comes with four DDR 4 (Double Data Rate 4) Quad Inline Memory Modules

(DIMM) slots.

A DDR4 module is notched differently from a DDR, DDR2, or DDR3 module. DO NOT

install a DDR, DDR2, or DDR3 memory module to the DDR4 slot.
