Cisco 200 Series Smart Switches 3

• Circuit Overloading—Adding the device to the power outlet must not

overload that circuit.

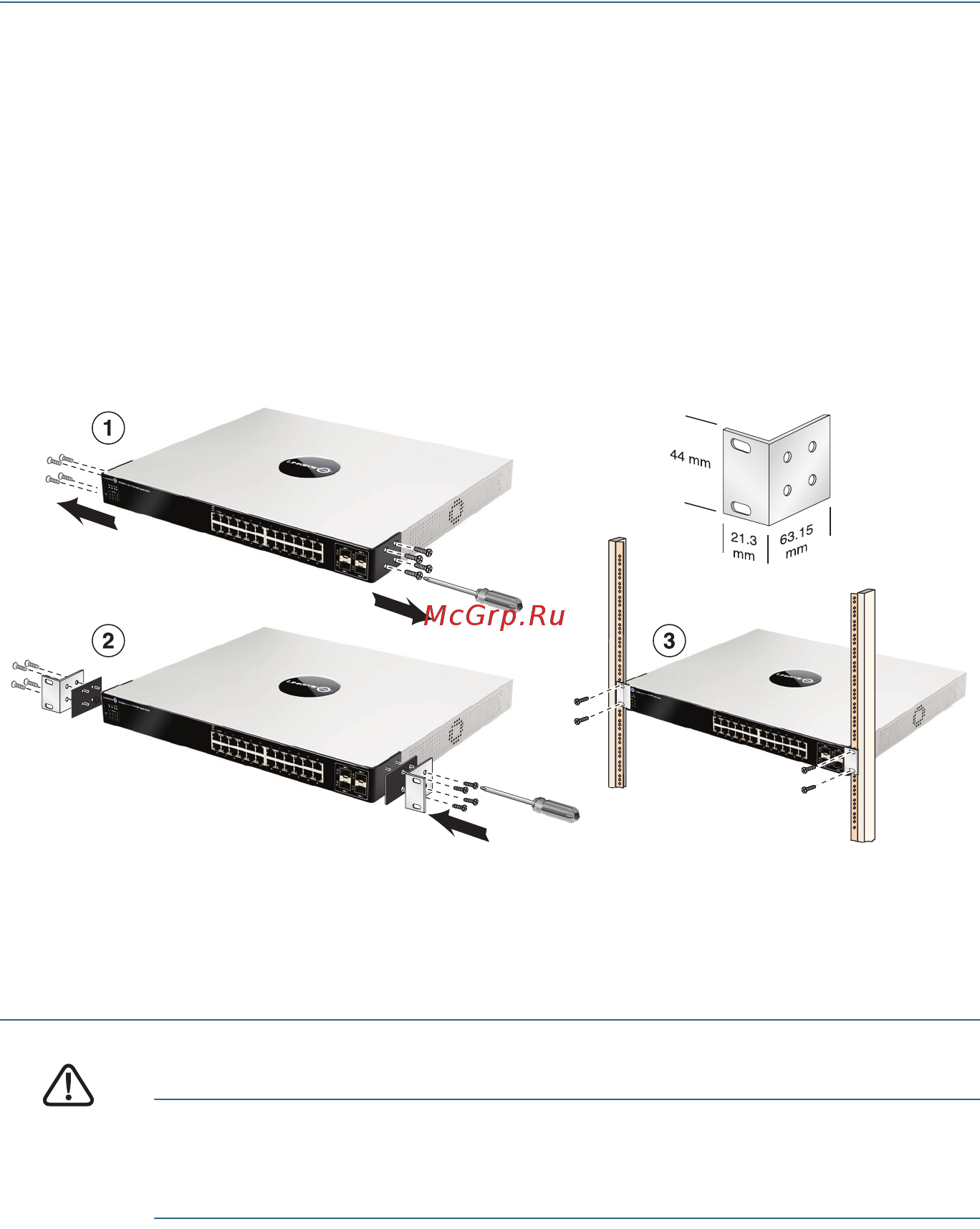

Rack-Mount Placement

STEP 1 Remove the four screws from each side near the front of the switch.

Retain the screws for re-installation. (Do not remove the four screws

from each side near the back of the switch.)

STEP 2 Place one of the supplied spacers on the side of the switch so the

four holes of the spacers align to the screw holes. Place a rack

mount bracket next to the spacer and reinstall the four screws

removed in Step 1.

NOTE If your screws are not long enough to reattach the bracket

with the spacer in place, attach the bracket directly to the case

without the spacer.

STEP 3 Repeat Step 2 for the other side of the switch.

STEP 4 After the mounting hardware has been securely attached, the

switch is now ready to be installed into a standard 19-inch rack.

CAUTION For stability, load the rack from the bottom to the top, with the

heaviest devices on the bottom. A top-heavy rack is likely to

be unstable and might tip over.

181185
