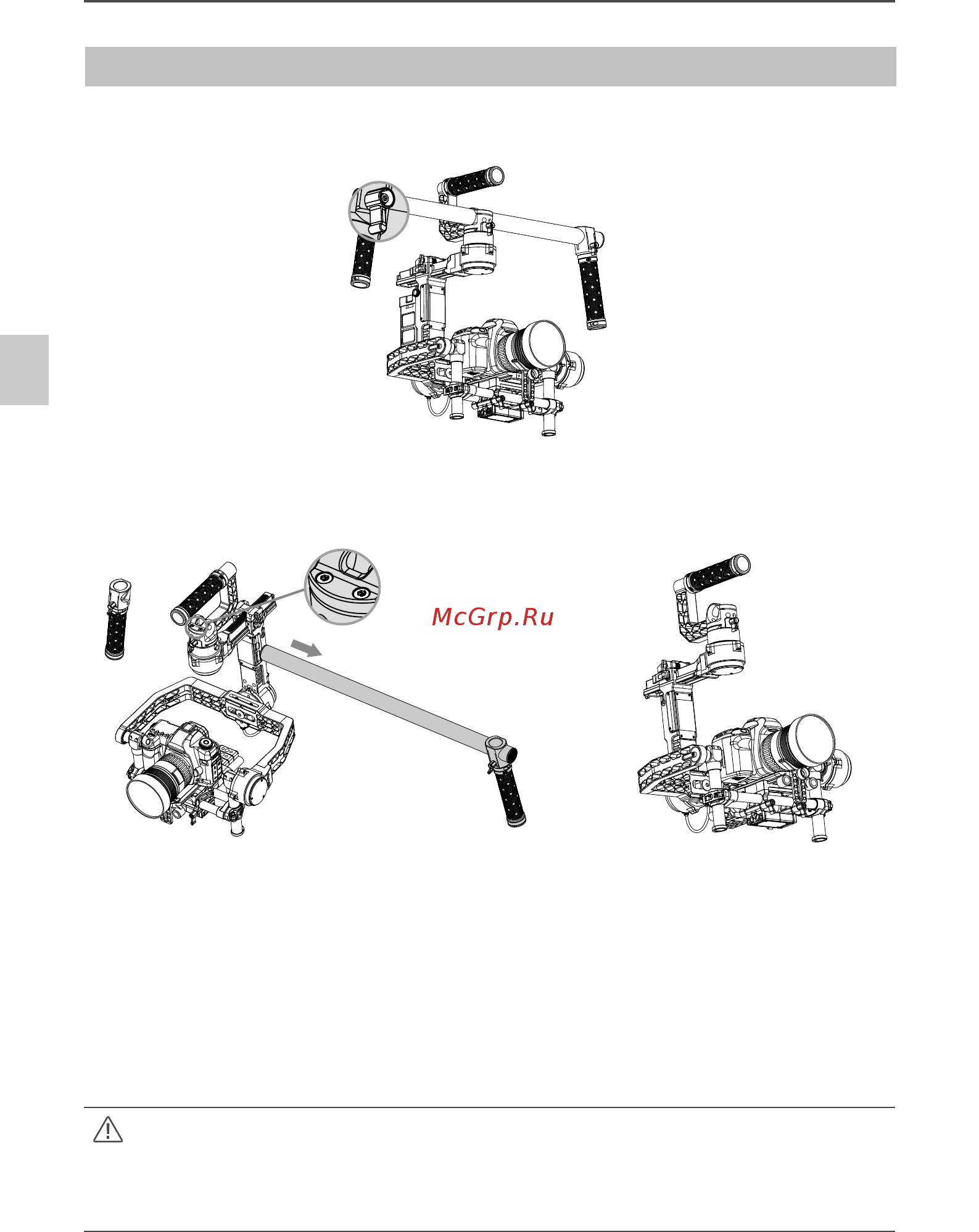

Ronin

User Manual

Why do you need to use a lens support?

Certain cameras have a very tight lens securing system, and some cameras like the Canon

5D MKII and MKIII have very loose lens securing systems. The Ronin balances the camera as

one solid unit. If the mounted camera has a loose camera securing system, the lens support

must be used. This is because if a loose connection between the lens and the camera body

is apparent, vibrations could travel through to the camera but not directly to the lens, resulting

in the two masses shaking at different frequencies. The resulting oscillation will translate to the

IMU, causing the whole gimbal to shake. If the lens support ts, it's best to use it at all times.

The lens support can be installed either facing outward or inward to accommodate different

lens types.

Ensure alignment of the camera plate and then tighten the screw prior to tightening the lens

support.

3. If using follow focus or other accessories, insert the extension rod into the extension rod holder and

tighten. Congure the length of the rods needs to accommodate for the length of the lens used.

4. With the gimbal on the tuning stand facing outward, insert the camera until the safety lock is

engaged. Make sure the gimbal is not turned on when balancing the camera.

5. Tighten the camera base side clamp. You can adjust the tightness of the side clamp with the M3

allen wrench.

Getting Started
