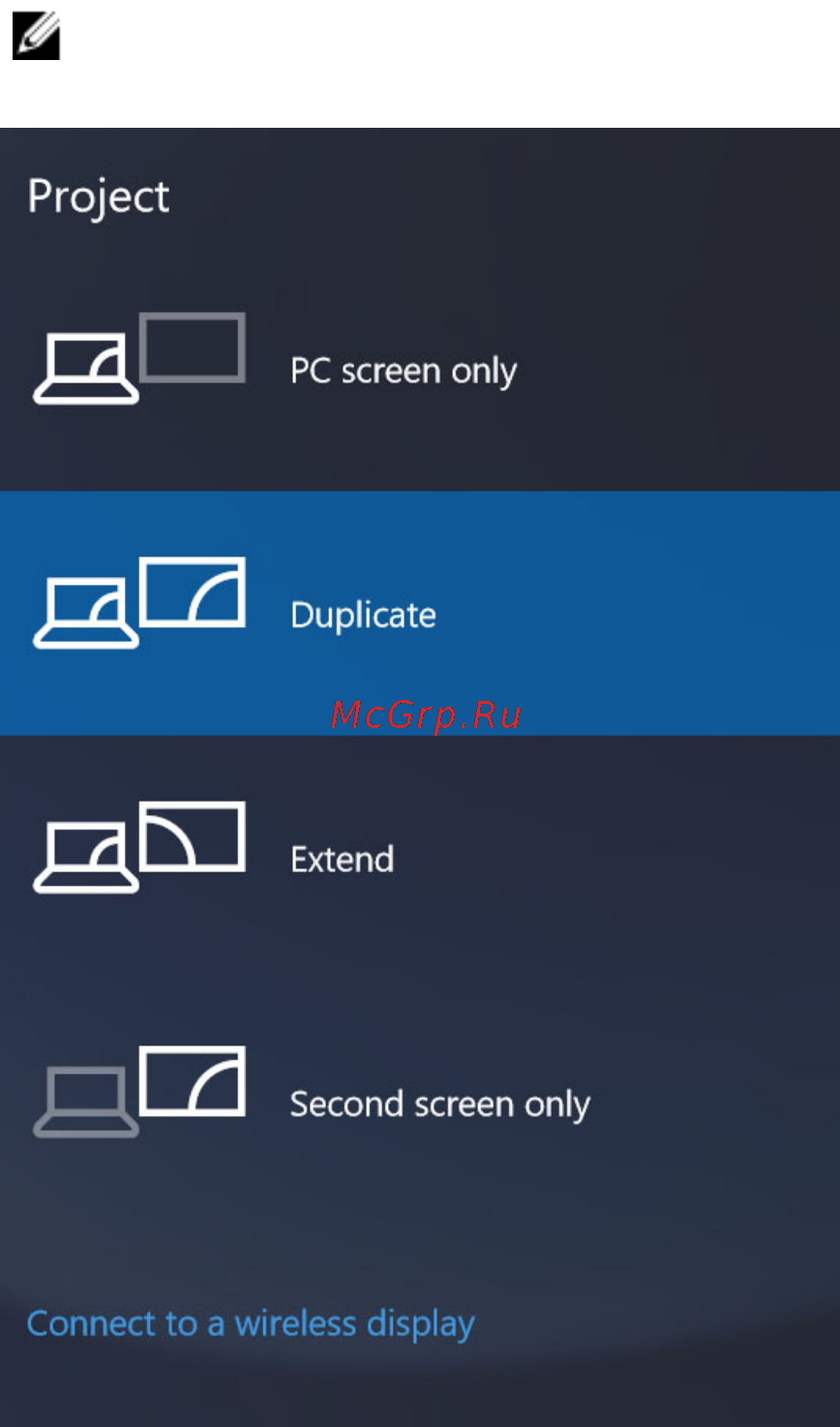

3 Select one of the following display modes:
– PC screen only
– Duplicate
– Extend
– Second screen only
NOTE: For more information, see the document that shipped with
your display device.
107
