Operating System
The Inspiron 13-5368 is shipped with the Windows 10 factory installation.
Service Tag location
The service tag is a unique alphanumeric identifier that allows Dell service
technicians to identify the hardware components in your computer and
access warranty information.
Device drivers
Intel Dynamic Platform and Thermal Framework

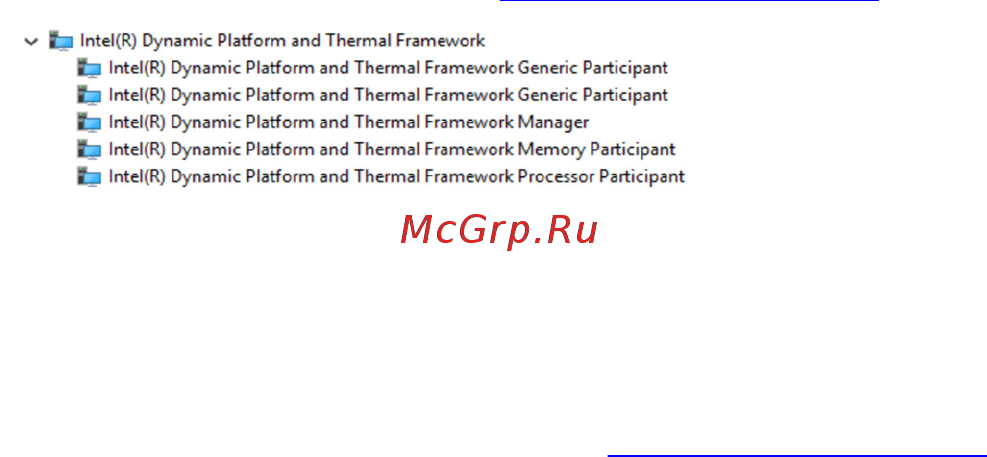

In the Device Manager, check if the Intel Dynamic Platform and Thermal
Framework is installed.
Install the driver updates from www.dell.com/support.
Intel Chipset Software Installation Utility
In the Device Manager, check if the chipset driver is installed.
Install the Intel chipset updates from www.dell.com/support.
125
